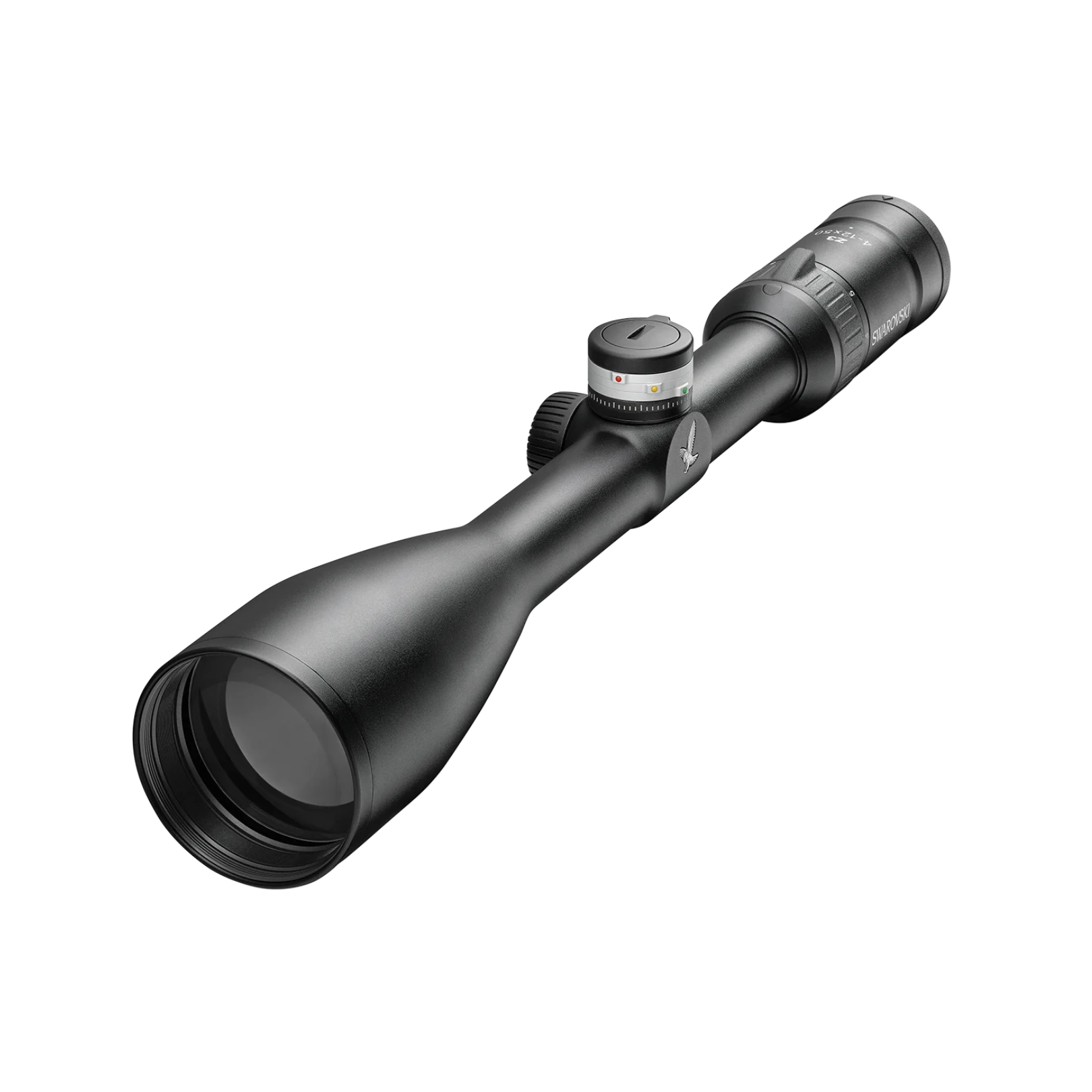

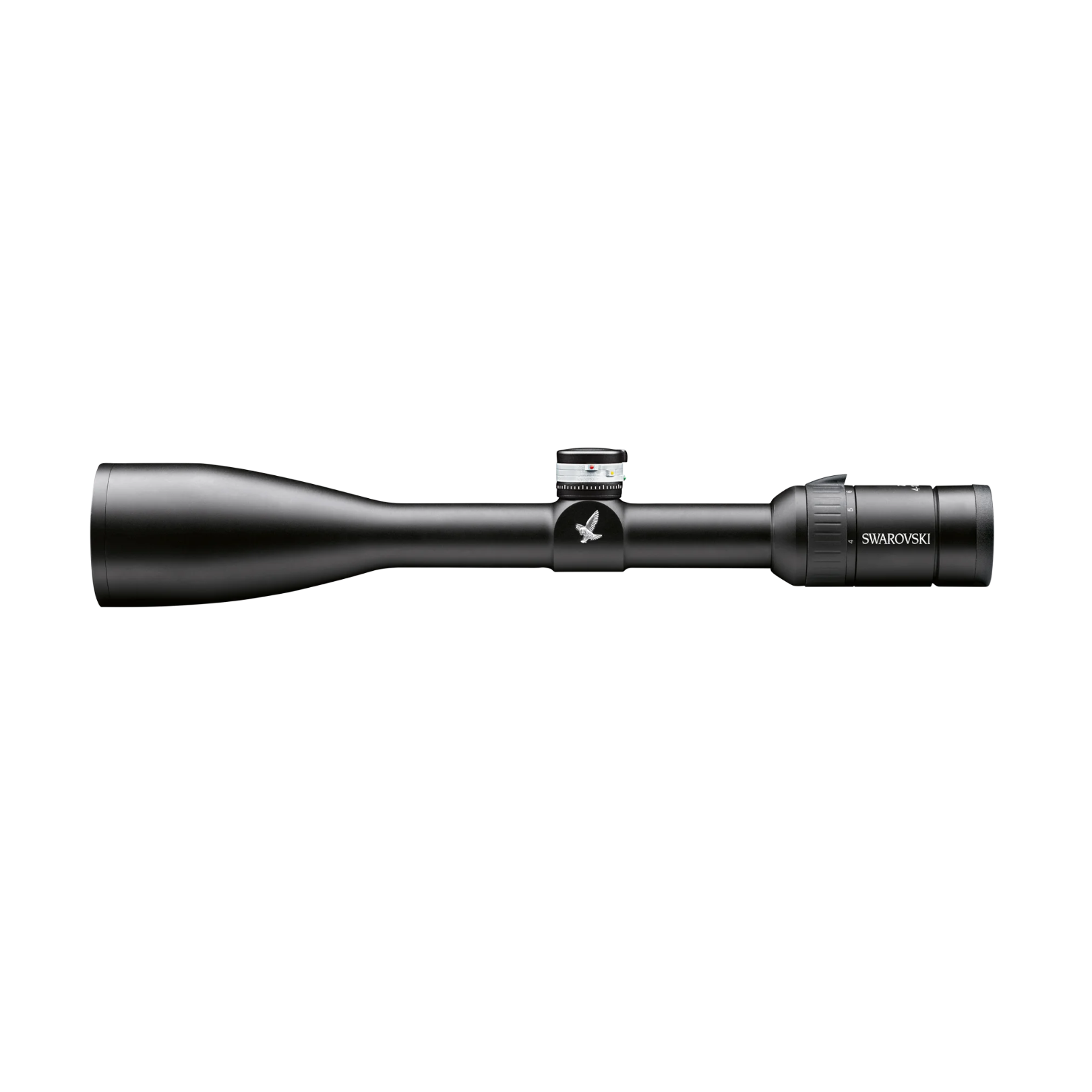

Swarovski Optik Z3 4-12x50mm BT (Ballistic Turret) Riflescope
- Low stock - 1 item left
- Backordered, shipping soon
Highlights
- Plex, Second Focal Plane
- 1" Maintube
- 1/4" per Click Impact Point Correction
- 43" Elevation/Windage Range @ 100 Yards
- Ballistic Turret
- Light Aluminum-Alloy Housing
- SWAROTOP Anti-Reflective Coatings
- SWARODUR Protective Coating
- Submersible to 13'
Description
With its large objective lens and powerful magnification, the Swarovski Optik 4-12x50 Z3 BT Riflescope is designed to provide a good look at distant targets even in low light. The Z3 is configured with a 1" maintube a ballistic elevation turret, and a Plex reticle in the second focal plane. The reticle features four long medium-weight tapered posts. The posts stand out well against dark backgrounds while fine crosshairs establish your exact point of aim. The parallax correction is factory preset at 109 yards.
SWAROTOP coatings limit light loss to just 0.2% at each air-to-glass surface, while the SWARODUR coating protects the external glass from scratches, moisture, gun oil, and insect repellent. Purged with inert gas, the scope is watertight and submersible to 13'.
Optical Performance
- 4-12x magnification
- 50 mm objective provides enhanced twilight performance
- SWAROTOP coatings: anti-reflective multi-coating enhances light transmission
- SWARODUR coating: protective scratch-resistant coating on external lens surfaces
- Parallax correction: 109 yards
Construction Details
- 1/4" per click impact point correction
- 43" elevation and windage adjustment range at 100 yarsds
- Inert gas filled, submersible to 13'
- Durable yet lightweight 1.0" aluminum maintube
Plex Reticle in the Second Focal Plane and Ballistic Turret
- Ballistic turret
- Plex reticle with four long medium-weight pointed-tip posts
- Second focal plane positioning of the reticle maintains the reticle's size across the magnification range
Optics
| Magnification |
4 to 12x
|
| Objective Lens Diameter |
50 mm
|
| Field of View |
4x: 29.1' @ 100 yd / 9.7 m @ 100 m
12x: 9.9' @ 100 yd / 3.3 m @ 100 m |
| Exit Pupil Diameter |
4x: 12.5 mm
12x: 4.2 mm |
| Eye Relief |
3.5" / 90 mm
|
| Anti-Reflective Coatings |
Coated
|
Reticle
| Reticle Type |
Plex Reticle (Second Focal Plane)
|
| Illumination |
No
|
Features
| Filter Thread |
M52 x 0.75
|
| Impact Point Correction |
43 MOA (Windage & Elevation)
Adjustment per Click: 1/4 MOA |
| Parallax Correction |
Yes, 109.4 yd / 100 m
|
| Environmental Resistance |
Water-Resistant (Unrated)
|
| Fogproof |
Yes
|
General
| Maintube Diameter |
1"
|
| Dimensions |
Length: 13.8" / 35 cm
|
| Weight |
0.9 lb / 410 g
|
