Device Type |
Rangefinder |
Order No. |
40812 |

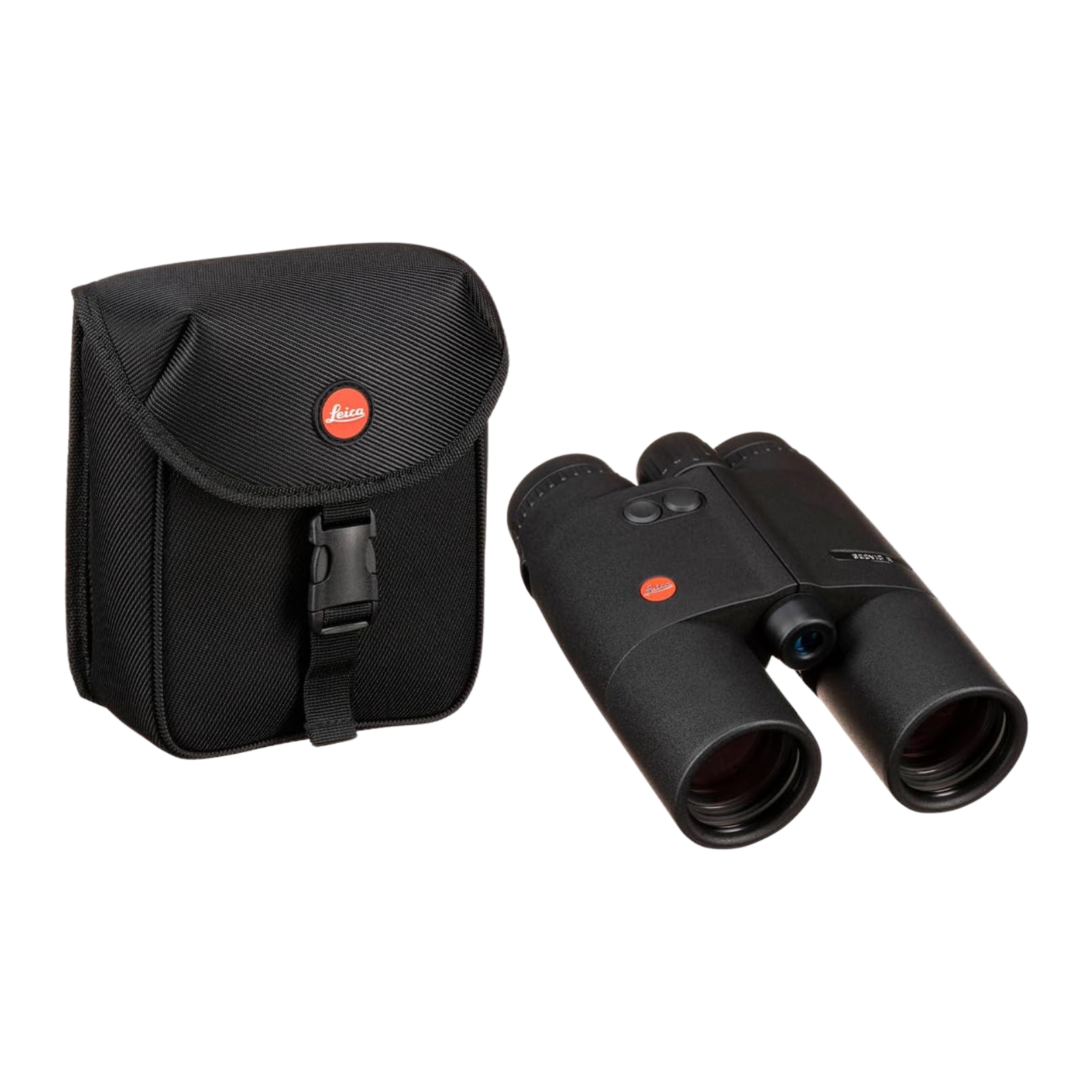

Scope of Delivery |
Contoured neoprene carrying strap, front lens cover, eyepiece caps, cordura case, battery |
Magnification |
10x |
Front Lens Diameter (mm) |
42 |
Exit Pupil (mm) |
4.2 |
Twilight Factor |
20.5 |
Field of View at 1,000 yds / 1,000 m |
330 ft / 110 m |
Field of View for Spectacle Wearers |
315 ft / 105 m |
Eye Relief (mm) |
14.5 |
Objective Angle of View |
6.3° |
Close Distance |
approx. 18.4 ft / 5.6 m |
Diopter Compensation (dpt) |
±4 |
Distance Measurement Range |
10 up to approx. 1,800 m |
Equivalent Horizontal Range (EHR) |
10 up to approx. 1,100 m |
Measuring Accuracy |
±1 yd to 383 yds / ±1 m to 350 m |
|
±2 yds to 765 yds / ±2 m to 700 m |
|
±0.5% above 765 yds / ±0.5% above 700 m |
Measuring Time |
0.3 sec |
Measuring Modes |
Scanning mode, single measurement |
Switchover Meter/Yards |
Yes |
Ballistic Function |
No |
Display |
LED display with 4 digits, easily legible in any light |
Eyepiece for Eyeglass Wearers |
Yes |
Eyecups |
Yes, rotary sliding sleeve, detachable, with 4 click-stops |
Prism System |
Modified Uppendahl system |
Lens Coating |
HDC® multilayer coating |
Focusing |
Internal focusing via central drive |
Laser |
Eye-safe invisible laser according to EN and FDA class 1 |
Battery |
1 x 3V Lithium-type CR2 |
Battery Lifetime |
Approx. 2,000 measurements at 68°F / 20°C |
Watertightness |
Waterproof to 16.5 ft / 5 m |
Housing |
Aluminum, nitrogen-filled |
Dimensions (W x H x D) |
4.9 × 6.6 × 2.8 in / 125 × 168 × 70 mm |
Weight |
Approx. 33.7 oz / 955 g (without battery) |
Accessories |
Tripod adapter (42 220) |
