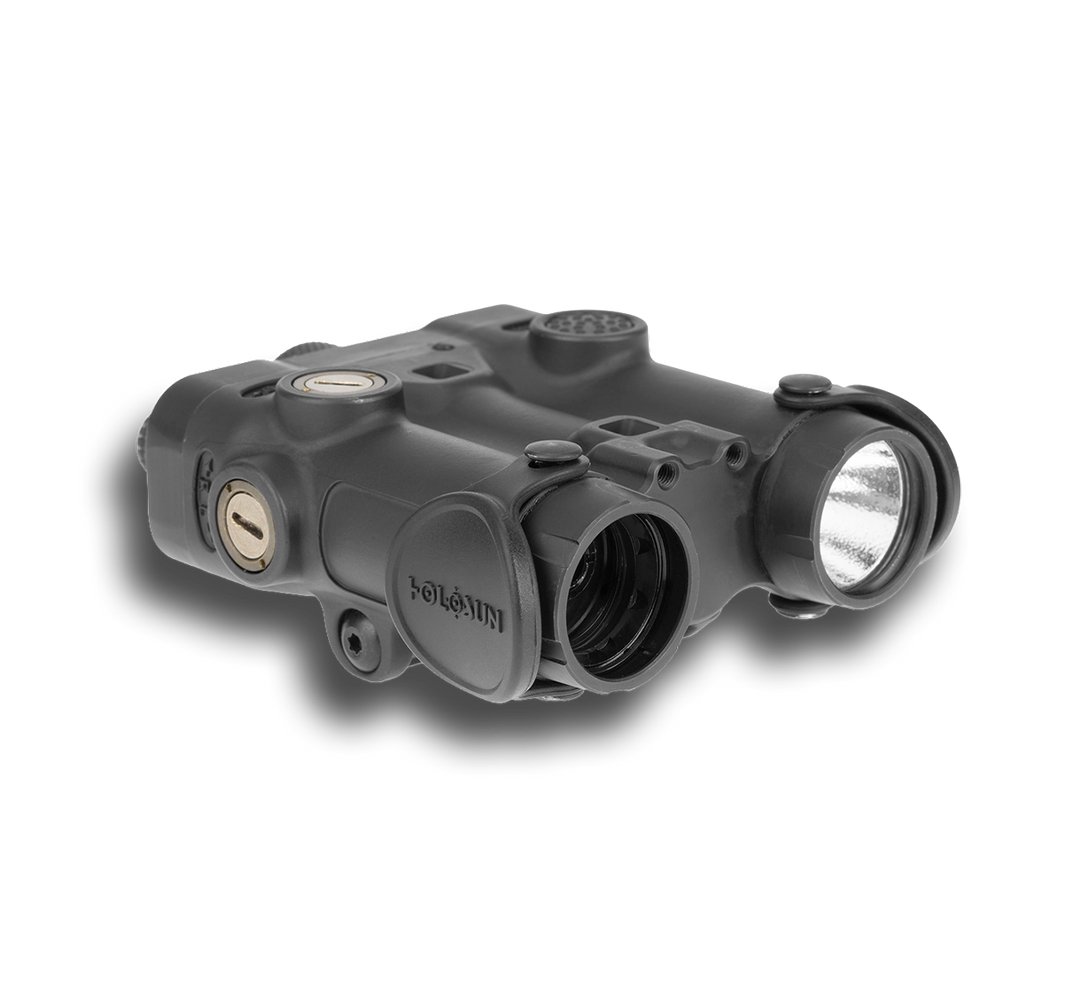

Holosun LE420-GR Titanium Quad-Function Laser + IR Illuminator + White Light
Key Features
- Quad-Function System – Visible green laser, infrared aiming laser, IR illuminator, and 600-lumen white light in one integrated unit.
- High-Visibility Green Laser – 520nm Class 3R green laser (<5mW) for a crisp daylight point of aim.
- Infrared Aiming Laser – 830nm Class 1 IR laser (<0.7mW) for night-vision-compatible aiming.
- Integrated IR Illuminator – 800–880nm IR illuminator enhances target visibility in no-light conditions.
- 600-Lumen White Light – High-output white light for close- to mid-range identification and engagement.
- Coaxial Laser Alignment – Visible and IR lasers stay aligned for simplified zeroing.
- Grade 5 Titanium Housing – Precision-machined titanium for exceptional strength and corrosion resistance.
- Multi-Mode Control – Top-mounted fire button, rear mode selector, and included remote pressure switch.
- Quick-Detach Picatinny Mount – Integrated QD mount for secure attachment to MIL-STD 1913 rails.
- Dual CR123A Power & IPX8 Rated – Two CR123A batteries; 0.5 MOA per click, ±50 MOA travel; IPX8 and 1000G rated.
Description
The Holosun LE420-GR is a quad-function aiming and illumination system that brings together a 520nm green laser, an 830nm infrared aiming laser, an 800–880nm IR illuminator, and a 600-lumen white light in a single Grade 5 titanium housing. It is the most capable unit in Holosun's LE rifle-laser lineup, built for shooters who need complete visible, infrared, and white-light capability on one mount.
Coaxial laser alignment keeps the visible and IR lasers zeroed together for simplified setup, while a top-mounted fire button, rear mode selector, and included Crane-plug remote pressure switch deliver flexible control of every mode. The LE420-GR provides 0.5 MOA per-click windage and elevation adjustment with ±50 MOA of travel, runs on two CR123A batteries for extended runtime, and carries an IPX8 waterproof rating with 1000G vibration resistance.
Specifications
▼
| Optical | |
| Visible Green Laser | 520nm · Class 3R · <5mW |
| Infrared Aiming Laser | 830nm · Class 1 · <0.7mW |
| Infrared Illuminator | 800–880nm · Class 1 · <0.7mW |
| White Light Output | 600 lumens |
| Electronic | |
| Battery | 2 × CR123A |
| Mechanical | |
| Housing Material | Grade 5 Titanium |
| Surface Finish | Titanium |
| Housing Color | Black |
| Adjustment per Click | 0.5 MOA |
| Windage & Elevation Travel | ±50 MOA |
| Storage Temperature | -40°C ~ 70°C |
| Working Temperature | -40°C ~ 51°C |
| Submersion | IPX8 |
| Vibration | 1000G |
| Physical | |
| Dimensions | 3.66″ × 3.07″ × 1.46″ |
| Fitment | |
| Direct Mount | Picatinny |
Package Includes
- ✓LE420-GR Laser Unit
- ✓Single-Button Crane-Plug Pressure Pad
- ✓Lens Cloth
- ✓Multi-Tool
- ✓Manual
- ✓Warranty Card
