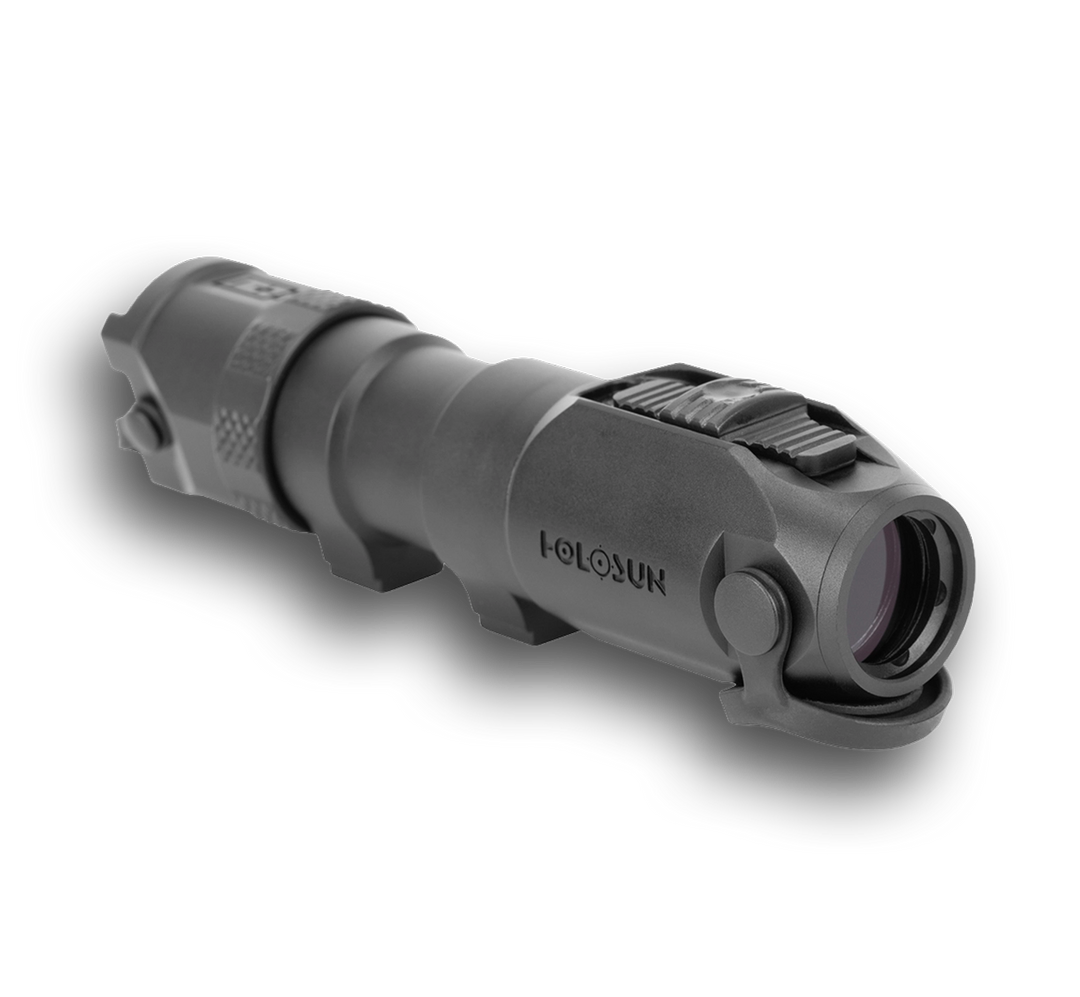

Holosun IRIS-ARC VCSEL IR Illuminator
Key Features
- Dedicated IR VCSEL Illuminator – high-output infrared VCSEL emitter produces a clean, uniform beam optimized for use with modern night-vision devices
- Adjustable Spot-to-Flood Beam – top-mounted slider transitions from a tight 3° spot to a wide 40° flood
- Variable 20–260 mW Output – scalable IR output for everything from close-range navigation to extended-range visibility
- Aspherical Lens Optical System – precision lens group maintains beam clarity and smooth transitions across the adjustment range
- Automatic Brightness Control – integrated position-sensor regulation keeps output consistent as the beam angle changes
- Dual Activation Controls – rear push-button plus an included Crane-plug pressure pad for flexible operation
- Scout-Pattern Mount Interface – compatible with standard Scout-style weapon-light mounting hardware
- 7075-T6 Aluminum Housing – hard-anodized construction in a slim 4.53-inch body
- IPX8 Waterproof & 1000G Rated – sealed and impact-rated for demanding field conditions
- CR123A Powered – runs on a single CR123A battery
Description
The Holosun IRIS-ARC is a dedicated infrared illuminator built for serious night-vision use, delivering controlled, high-output IR light from close-quarters distances out to extended observation ranges. Built around a high-output IR VCSEL emitter, it produces a clean, uniform beam — free of the hotspot-and-ring artifacts common to LED illuminators — and adjusts on the fly from a tight 3° spot to a wide 40° flood via a top-mounted slider, with output scalable from 20 to 260 mW.
An aspherical lens group keeps the beam crisp across the full range, while automatic brightness control regulates output as the beam angle changes for consistent intensity at every setting. The IRIS-ARC activates via a rear push-button or the included Crane-plug pressure pad, mounts through a standard Scout-pattern interface, and runs on a single CR123A battery. Its hard-anodized 7075-T6 aluminum housing carries an IPX8 waterproof rating and a 1000G vibration rating for dependable performance in rain, dust, and recoil.
Specifications
▼
| FUNCTIONS | |
| IR VCSEL Illuminator | Yes |
| Remote Switch Included | Yes |
| ILLUMINATOR | |
| IR VCSEL Illuminator | >260mW (max) |
| Output Range | 20–260 mW |
| IR Wavelength | 820–880nm |
| Beam Adjustment | 3° spot – 40° flood |
| Optical System | Aspherical Lens Group |
| Brightness Control | Automatic (position-sensor) |
| ELECTRONIC | |
| Battery | 1x CR123A |
| MECHANICAL | |
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Hard Anodized |
| Housing Color | Black |
| Mount Interface | Scout-Pattern (Picatinny / M-Lok compatible) |
| Submersion | IPX8 |
| Vibration | 1000G |
| Working Temperature | -30°C ~ 51°C |
| Storage Temperature | -40°C ~ 70°C |
| PHYSICAL | |
| Dimensions | 4.53″ × 1.14″ × 1.3″ |
| Weight | 4.1 oz |
Package Includes
- ✓IRIS-ARC IR Illuminator
- ✓Crane Plug Pressure Pad
- ✓Lens Cloth
- ✓Multi-Tool
- ✓Manual
- ✓Warranty Card
