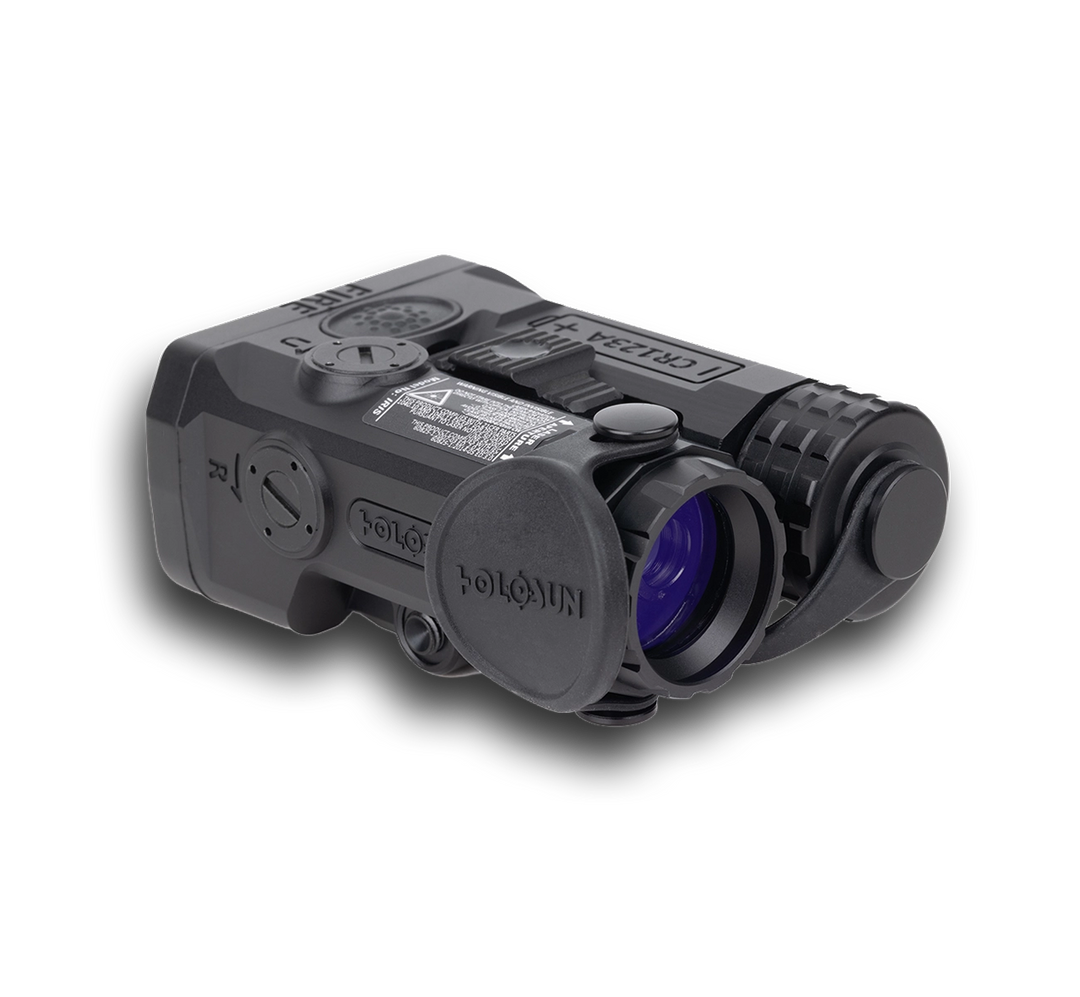

Holosun IRIS 3 Triple-Function Laser & VCSEL IR Illuminator
Key Features
- Triple-Function System – integrates a visible laser, a Class 1 IR aiming laser, and a 60mW VCSEL IR illuminator in one compact unit
- High-Visibility Visible Laser – 520nm green or 635nm red Class 3R (<5mW), selectable by model
- Class 1 IR Aiming Laser – 800–880nm (<0.7mW) for night-vision-compatible aiming
- 60mW VCSEL IR Illuminator – 800–880nm output with adjustable flood-to-spot beam via a top-mounted slider
- Co-Aligned Laser Zeroing – visible and IR lasers align so both can be zeroed together using the visible beam in daylight
- Advanced Mode Control – center fire button plus dual rear-facing selectors, with VIS override for instant visible-laser access
- 7075-T6 Aluminum Housing – hard-anodized, 43% lighter and 20% lower-profile than previous models
- Remote Switch with VIS Override – included low-profile dual-button Crane-plug pressure pad
- IPX8 Waterproof & 1000G Rated – sealed housing built for demanding operational environments
- CR123A Powered – runs on a single CR123A battery with quick front-cap access
Description
The Holosun IRIS 3 is a compact triple-function aiming system that combines a visible laser — green or red — with a Class 1 infrared aiming laser and a high-output 60mW VCSEL IR illuminator. The visible and IR lasers are co-aligned for simultaneous daytime zeroing, while the VCSEL illuminator adjusts from wide flood to focused spot via a top-mounted, glove-friendly slider — giving you a complete day-and-night aiming and illumination package in one housing.
Built around a redesigned 7075-T6 aluminum body that's 43% lighter and 20% lower-profile than previous models, the IRIS 3 runs on a single CR123A battery and offers ambidextrous control through a center fire button and dual rear-facing mode selectors, plus a VIS override for instant visible-laser access. An included low-profile Crane-plug pressure pad adds remote activation. With 0.5 MOA windage and elevation clicks, ±50 MOA of travel, and an IPX8 waterproof, 1000G-rated build, it's ready for serious low-light and night-vision work.
Specifications
▼
| FUNCTIONS | |
| Visible Laser Pointer | Yes |
| IR Laser Pointer | Yes |
| IR VCSEL Illuminator | Yes |
| Remote Switch Included | Yes |
| LASER & ILLUMINATOR | |
| Visible Laser (Green) | 520nm · Class 3R · <5mW |
| Visible Laser (Red) | 635nm · Class 3R · <5mW |
| IR Laser | 800–880nm · Class 1 · <0.7mW |
| IR VCSEL Illuminator | 60mW · 800–880nm |
| Adjustment Per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| ELECTRONIC | |
| Battery | 1x CR123A |
| MECHANICAL | |
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Anodized |
| Housing Color | Black |
| Submersion | IPX8 |
| Vibration | 1000G |
| Working Temperature | -30°C ~ 51°C |
| Storage Temperature | -40°C ~ 70°C |
| PHYSICAL | |
| Dimensions | 3.2″ × 1.97″ × 1.34″ |
| Weight | 6.4 oz |
| Direct Mount | Picatinny |
Package Includes
- ✓IRIS 3 Laser & IR Illuminator
- ✓Crane Plug Pressure Pad
- ✓Lens Cloth
- ✓Multi-Tool
- ✓Wrench
- ✓Manual
- ✓Warranty Card
