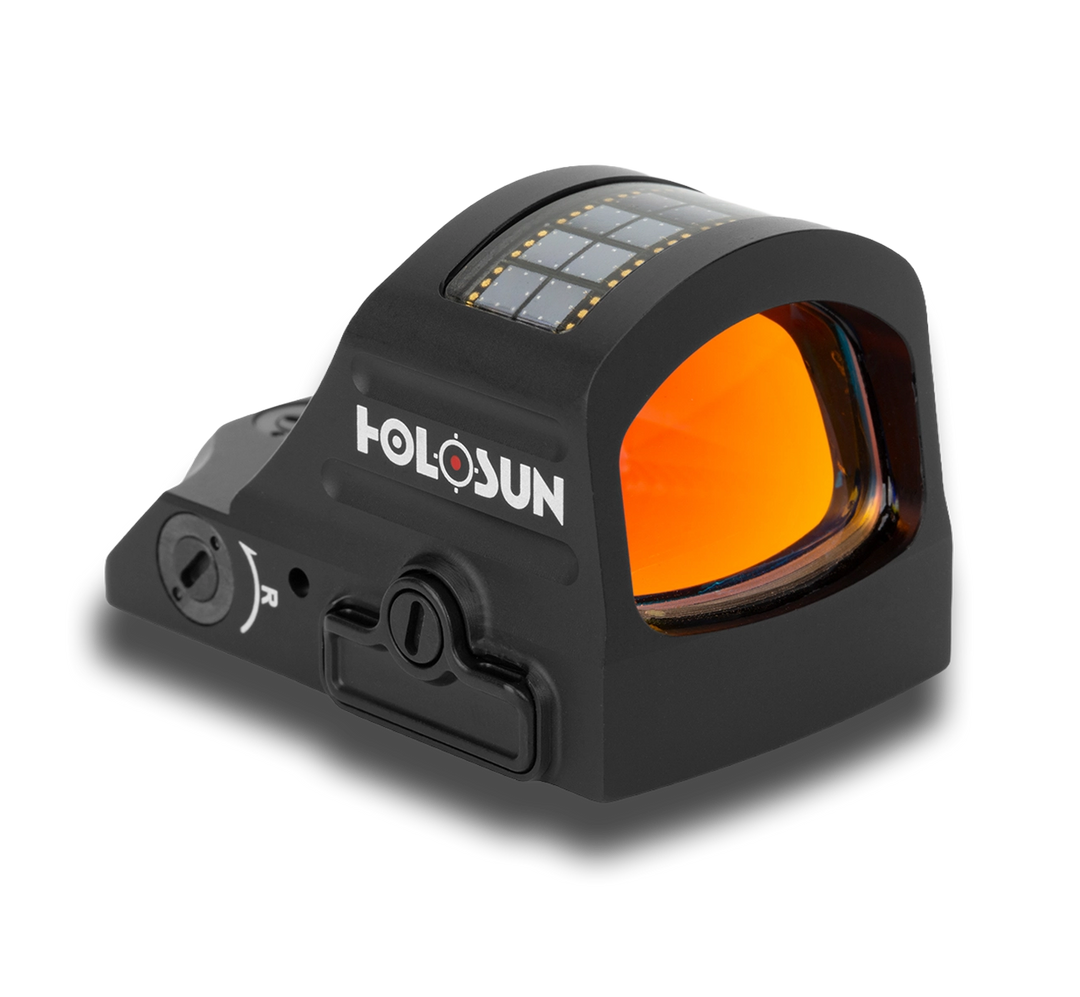

Holosun HS507C-X2 Open Multi-Reticle Pistol Sight
Key Features
- Multi-Reticle System – selectable 2 MOA dot, 32 MOA circle, or circle-dot combination for precision or speed
- 7075-T6 Aluminum Housing – hard-anodized, lightweight, and durable for full-size pistol duty and carry
- Open Emitter Design – wide, unobstructed sight window for fast both-eyes-open target acquisition
- Red or Green Reticle – high-visibility Super LED in your choice of color
- Solar Failsafe + Shake Awake™ – solar-assisted, motion-activated power with Lockout Mode
- Up to 50,000 Hours – side-loading CR1632 battery tray, swappable without removing the optic from the slide
- Industry-Standard RMR Footprint – direct-mounts to a wide range of optics-ready pistol slides
- IP67 + 5000G – waterproof and vibration rated for serious carry and duty use
Description
The Holosun HS507C-X2 is an open-emitter pistol optic built for full-size handguns – a duty, competition, and everyday-carry staple. The hard-anodized 7075-T6 aluminum housing keeps weight low while shrugging off hard use, and the open emitter delivers a wide, unobstructed sight picture for fast both-eyes-open shooting. Choose a 2 MOA dot for precision, a 32 MOA circle for speed, or the combined circle-dot – in red or green using the selector above.
A forward-facing solar sensor backs up the battery and assists brightness, while Shake Awake and Lock Mode keep the optic ready, conserve power, and prevent accidental setting changes during carry. Power comes from a side-loading CR1632 rated up to 50,000 hours, swappable without pulling the optic from the slide. The housing is IP67 waterproof and 5000G rated, and the industry-standard RMR footprint direct-mounts to a wide range of optics-ready pistols.
Specifications
▼
| OPTICAL | |
| Reticle | Multi-Reticle System – 2 MOA dot, 32 MOA circle, or circle-dot |
| Reticle Colors | Red or Green |
| Magnification | 1x |
| Light Source | LED (650nm red / 540nm green) |
| Coatings | Fully multi-coated |
| Parallax / Eye Relief | Parallax-free, unlimited eye relief |
| POWER | |
| Power | CR1632 side tray + Solar Failsafe |
| Battery Life | Up to 50,000 hours (setting 6) |
| Brightness Settings | 12 (10 daylight, 2 night-vision) |
| MECHANICAL | |
| Housing | 7075-T6 Aluminum (hard-anodized black) |
| Adjustment / Click | 1 MOA |
| W&E Travel Range | ±50 MOA |
| Window Size | 0.63″ × 0.91″ |
| Dimensions | 1.78″ × 1.15″ × 1.15″ |
| Weight | 1.5 oz |
| DURABILITY & FITMENT | |
| Waterproof Rating | IP67 |
| Vibration | 5000G |
| Footprint | RMR (direct mount) |
Package Includes
- ✓1x HS507C-X2 Open Pistol Sight
- ✓Mounting Screws
- ✓1x Lens Cloth
- ✓1x Multi-Tool
- ✓1x User Manual & Warranty Card
