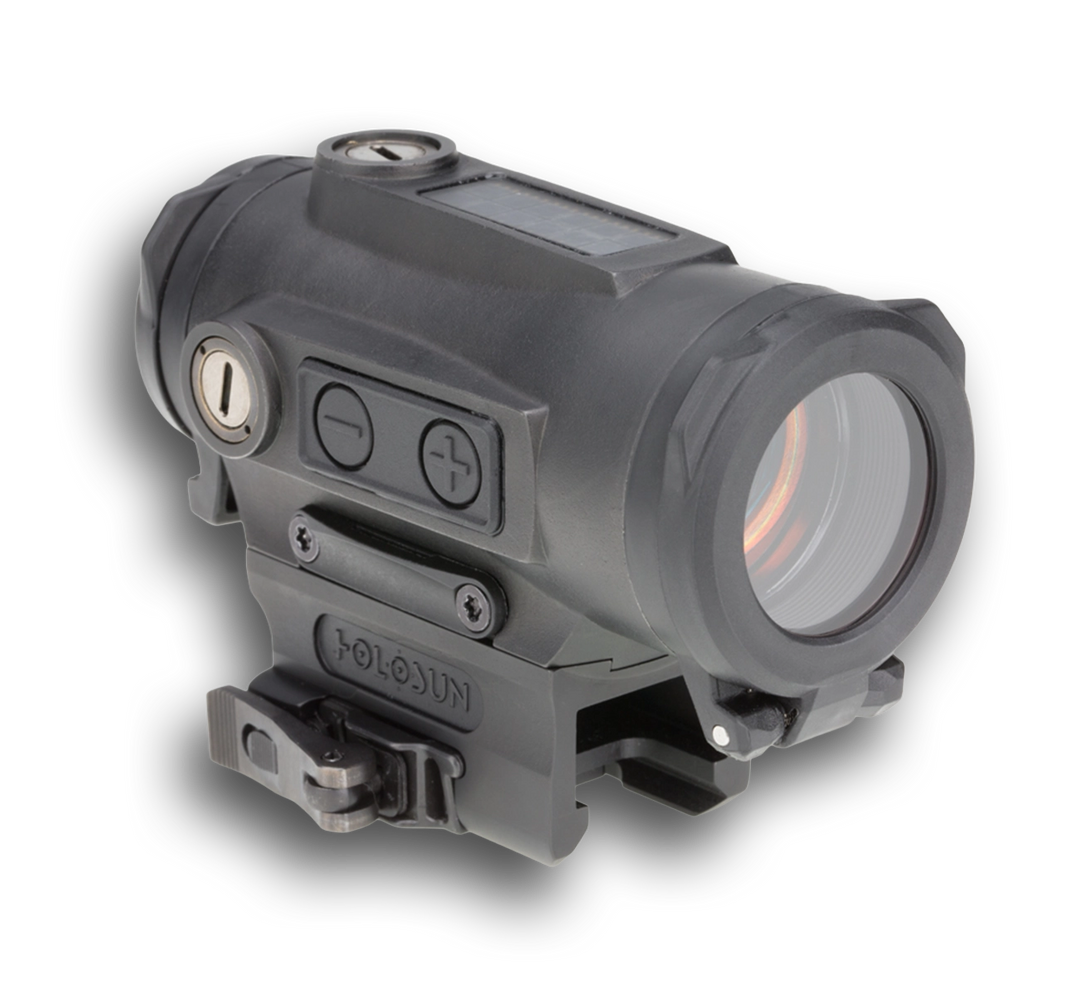

Holosun HE530C 30mm Enclosed Rifle Sight
Key Features
- Multi-Reticle System (MRS) – selectable 2 MOA dot, 65 MOA circle, or circle-dot combination for precision aiming or rapid target acquisition.
- 30mm Micro Tube Design – large 30mm optic body provides a wide viewing area and enhanced situational awareness for rifle and carbine platforms.
- Grade 5 Titanium Housing – precision-machined titanium delivers exceptional durability in a strong, lightweight body.
- Solar Failsafe – integrated solar panel supplements battery power and automatically adjusts brightness using ambient light.
- Shake Awake – motion-activated illumination powers the optic on instantly and sleeps during inactivity to conserve battery.
- Absolute Co-Witness QD Mount – included quick-detach mount at 1.41″ height aligns with standard AR-pattern iron sights for fast installation.
- Rotating Protective Lens Caps – clear rotating caps protect the glass from debris and exposure while allowing immediate use.
- IP68 Waterproof Construction – fully sealed titanium housing protects internals from water, dust, and harsh conditions.
Description
The Holosun HE530C is an ultra-durable 30mm titanium micro sight built for hard-use rifle and carbine applications. Its larger 30mm objective opens up a wide field of view from a micro-style eyepiece, and the Multi-Reticle System lets you run a 2 MOA dot alone for precision, the 65 MOA circle for fast pickup, or the circle-dot together for both.
Built from Grade 5 titanium and sealed to an IP68 rating, the 530C shrugs off water, dust, and recoil. Solar Failsafe and Shake Awake keep it powered and ready – drawing on ambient light for automatic brightness and backup power while motion activation wakes it instantly. It ships with an absolute co-witness QD mount (1.41″ height), a kill flash, and clear rotating lens caps, and a side-loading CR2032 tray keeps battery changes quick without losing zero. Available with a red or green MRS reticle.
Specifications
▼
| OPTICAL | |
| Reticle | Multi-Reticle System: 2 MOA Dot & 65 MOA Circle |
| Reticle Colors | Red or Green (model dependent) |
| Magnification | 1× |
| Light Source | LED (650nm red / 540nm green) |
| Coatings | Multi-Coated |
| Parallax / Eye Relief | Parallax-Free / Unlimited Eye Relief |
| POWER | |
| Power Source | CR2032 battery + Solar Failsafe |
| Battery Life | Up to 50,000 hours (setting 6) |
| Brightness Settings | 12 (10 daylight, 2 night-vision) |
| MECHANICAL | |
| Housing | Grade 5 Titanium (Black) |
| Adjustment Per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| Objective / Tube | 30mm (1.18″ diameter) |
| Dimensions | 3.22″ × 1.9″ × 1.77″ |
| Weight | 6.56 oz |
| DURABILITY & FITMENT | |
| Waterproof Rating | IP68 |
| Vibration | 1000G |
| Mounting | Picatinny Rail (Absolute Co-Witness QD, 1.41″ height) |
Package Includes
- ✓1x HE530C 30mm Enclosed Rifle Sight
- ✓1x Absolute Co-Witness QD Mount
- ✓1x Kill Flash & Clear Lens Caps
- ✓1x Lens Cloth
- ✓1x Multi-Tool (T10 L-Key)
- ✓1x User Manual & Warranty Card
