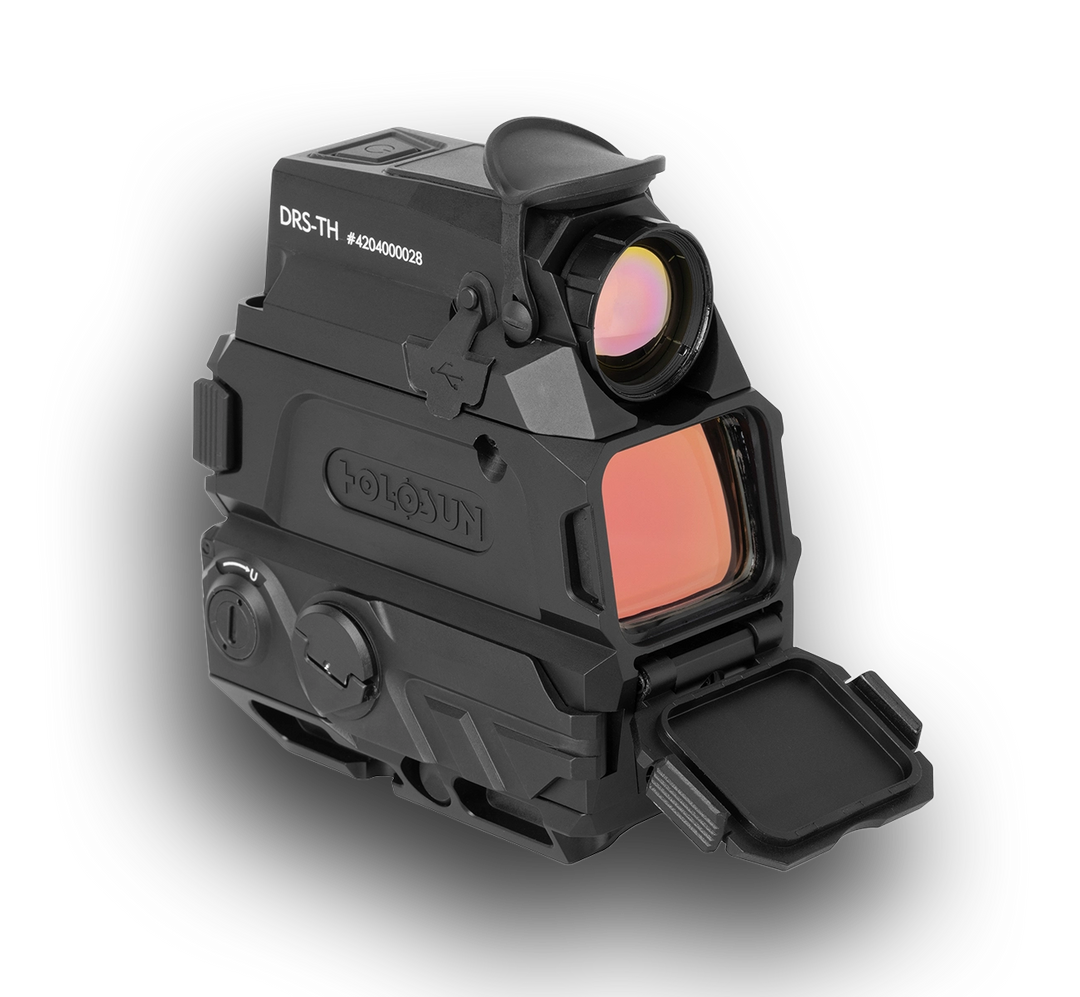

Holosun DRS-TH Thermal Red Dot Sight
Key Features
- Thermal + Red Dot Fusion – a 256×192 thermal sensor overlays heat signatures directly within the red dot sight picture
- Multi-Reticle System (MRS) – selectable 2 MOA dot, 65 MOA circle, or circle-dot for speed or precision
- 4 Thermal Image Modes – White Hot, Black Hot, Outline, and Highlight adapt to any environment
- 1024×768 OLED Display – 50 FPS refresh delivers smooth, clear thermal visualization
- 3-Stage Thermal Zoom – 1x, 3x, and 5x digital zoom for improved target ID at distance
- Internal Video Recording – capture and review critical footage directly from the optic
- Dual 18350 Battery System – two rechargeable batteries deliver up to 10 hrs thermal runtime
- Magnetic USB Charging – convenient charging and data transfer without removing the optic
- Shake Awake Red Dot – motion-activated illumination keeps the optic ready the instant it's needed
- Rugged 7075-T6 Housing – precision-machined aluminum with IP67 waterproofing and 1000G vibration resistance
Description
The Holosun DRS-TH (Digital Reflex Sight — Thermal) combines a high-performance LED red dot with an integrated 256×192 thermal sensor, overlaying real-time heat signatures directly within a familiar red dot sight picture. The result is dramatically faster target detection and engagement in total darkness, smoke, fog, or daylight — a genuine all-conditions fusion optic for professional and field use.
White Hot, Black Hot, Outline, and Highlight thermal modes adapt to changing environments, while selectable 1x–5x digital zoom and onboard video recording add field flexibility. The Multi-Reticle System offers a 2 MOA dot, 65 MOA circle, or circle-dot, and if thermal isn't needed, simply flip down the front lens cap and run the DRS-TH as a standard red dot. Two rechargeable 18350 batteries with magnetic USB charging power the system inside an IP67-rated 7075-T6 aluminum housing.
Specifications
▼
| REFLEX SIGHT | |
| Light Source | LED |
| Wavelength | 650nm |
| Reticle | 2 MOA Dot & 65 MOA Circle |
| Selectable Reticle | Yes |
| Solar Power | No |
| Shake Awake | Yes |
| Magnification | 1x |
| Multi-Coated Optics | Yes |
| Brightness Settings | 8 Daylight & 4 Night Vision |
| Unlimited Eye Relief | Yes |
| Parallax Free | Yes |
| THERMAL | |
| Sensor Resolution | 256×192 |
| OLED Resolution | 1024×768 |
| Frame Rate | 50 FPS |
| MRTD | <50 mK |
| Digital Zoom | 1x, 3x, 5x |
| Image Modes | White Hot, Black Hot, Outline, Highlight |
| Lens Focus | 25mm |
| Aperture | F1.1 |
| Focus Range | 5m – Infinity |
| Field of View | 7.2°×5.3° |
| Spectral Range | 8 – 14µm |
| Video Recording | Yes |
| Battery | 2× 18350 |
| Battery Life | Observation: 10 hrs / Full Function: 8 hrs |
| External Charging | 5V/1A Magnetic USB |
| MECHANICAL | |
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Anodized |
| Housing Color | Black |
| Adjustment Per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| Submersion | IP67 |
| Vibration | 1000G |
| Working Temperature | -20°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| PHYSICAL | |
| Window Size | 1.25″ × 0.98″ |
| Body Dimensions | 3.7″ × 2.2″ × 3.5″ |
| Body Weight | 18 oz |
| Central Height Mount | 1.72″ |
| Mount Weight | 2.3 oz |
| Direct Mount | Picatinny |
Package Includes
- ✓DRS-TH Digital Thermal Sight
- ✓2× 18350 Rechargeable Batteries
- ✓Charging & Data Cable (USB-A to Magnetic)
- ✓Lens Cloth
- ✓Multi-Tool
- ✓Wrench
- ✓Manual
- ✓Warranty Card
