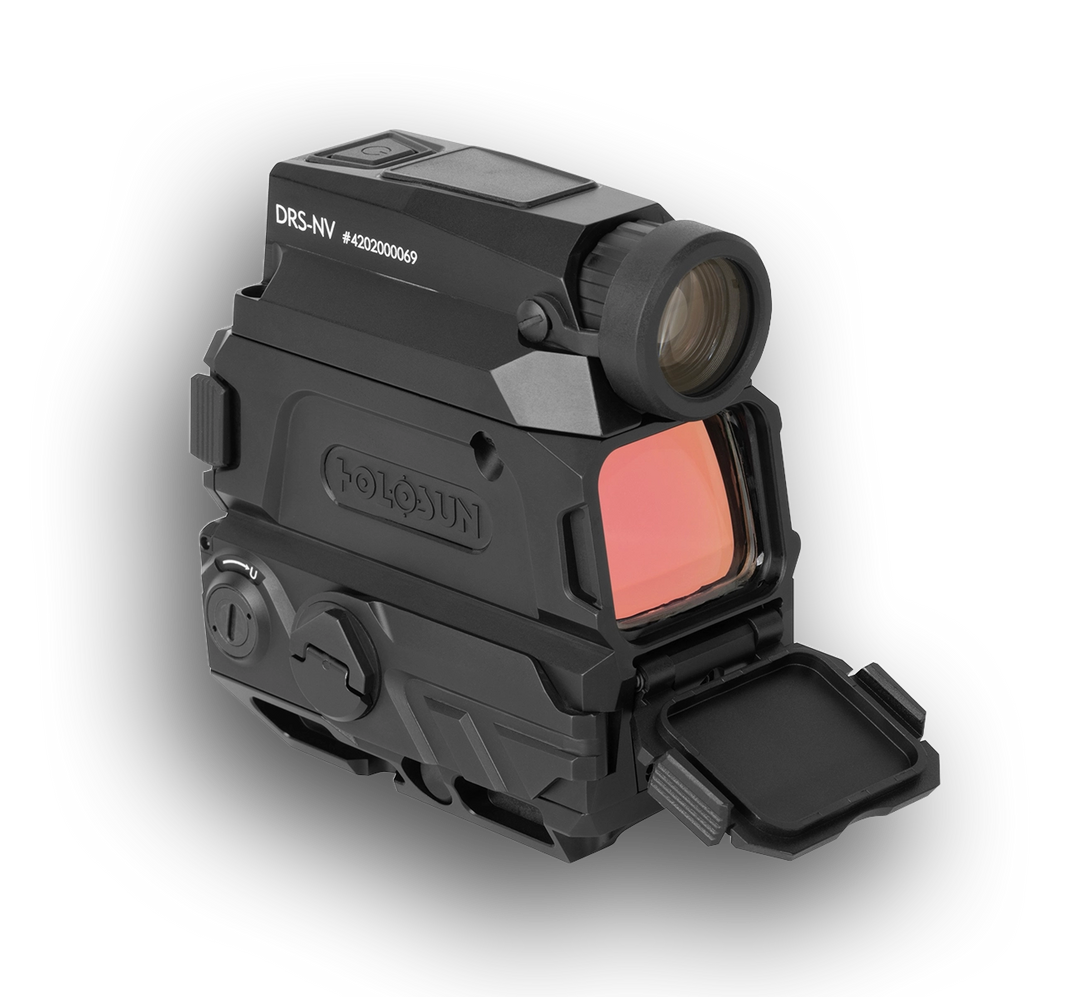

Holosun DRS-NV Digital Night Vision Red Dot Sight
Key Features
- Digital Night Vision + Red Dot Fusion – a 1920×1080 sensor and precision LED red dot combine in one optic for seamless day and low-light performance
- 1024×768 OLED Display – crisp imaging at up to 60 FPS for smooth observation and tracking
- Multi-Reticle System (MRS) – selectable 2 MOA dot, 65 MOA circle, or circle-dot to tailor the reticle for speed or precision
- 4-Stage Digital Zoom – 1x, 2x, 4x, and 8x zoom for flexible target identification across distances
- Photo & Video Recording – capture images and video directly from the optic with onboard storage
- Dual 18350 Battery System – two rechargeable batteries deliver up to 8 hrs observation / 6 hrs full-function runtime
- Magnetic USB Charging & Data Transfer – convenient charging and easy file transfer without removing the optic
- Shake Awake Red Dot – motion-activated illumination powers the red dot the instant movement is detected
- Rugged 7075-T6 Housing – precision-machined aluminum with IP67 waterproofing and 1000G vibration resistance
Description
The Holosun DRS-NV (Digital Reflex Sight — Night Vision) fuses a high-performance LED red dot with an integrated digital night-vision system to create a true 24-hour rifle optic. A 1920×1080 sensor feeds a 1024×768 OLED display, delivering clear real-time imaging in moonlight, starlight, or with IR illumination — all while preserving the speed and simplicity of a traditional red dot sight.
Selectable 1x–8x digital zoom, four image modes, and onboard photo/video recording give the shooter flexibility in the field, while the Holosun Multi-Reticle System lets you switch between a 2 MOA dot, 65 MOA circle, or circle-dot. Powered by two rechargeable 18350 batteries with magnetic USB charging and housed in IP67-rated 7075-T6 aluminum, the DRS-NV is built to perform in the most demanding low-light environments.
Specifications
▼
| REFLEX SIGHT | |
| Light Source | LED |
| Wavelength | 650nm |
| Reticle | 2 MOA Dot & 65 MOA Circle |
| Selectable Reticle | Yes |
| Solar Power | No |
| Shake Awake | Yes |
| Magnification | 1x |
| Multi-Coated Optics | Yes |
| Brightness Settings | 8 Daylight & 4 Night Vision |
| Unlimited Eye Relief | Yes |
| Parallax Free | Yes |
| NIGHT VISION | |
| Sensor Resolution | 1920×1080 |
| OLED Resolution | 1024×768 |
| Frame Rate | 30 / 60 FPS |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Operating Illuminance | 0.01 lx |
| Lens Focus | 25mm |
| Aperture | F1.2 |
| Focus Range | 5m – Infinity |
| Field of View | 7.2°×5.3° |
| Spectral Range | 400nm – 950nm |
| Image Mode | Fusion |
| Video Recording | Yes |
| Battery | 2× 18350 |
| Battery Life | Observation: 8 hrs / Full Function: 6 hrs |
| External Charging | 5V/1A Magnetic USB |
| MECHANICAL | |
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Anodized |
| Housing Color | Black |
| Adjustment Per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| Submersion | IP67 |
| Vibration | 1000G |
| Working Temperature | -20°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| PHYSICAL | |
| Window Size | 1.25″ × 0.98″ |
| Body Dimensions | 3.7″ × 2.2″ × 3.5″ |
| Body Weight | 18.5 oz |
| Central Height Mount | 1.72″ |
| Mount Weight | 2.3 oz |
| Direct Mount | Picatinny |
Package Includes
- ✓DRS-NV Digital Night Vision Sight
- ✓2× 18350 Rechargeable Batteries
- ✓Charging & Data Cable (USB-A to Magnetic)
- ✓Lens Cloth
- ✓Multi-Tool
- ✓Wrench
- ✓Manual
- ✓Warranty Card
