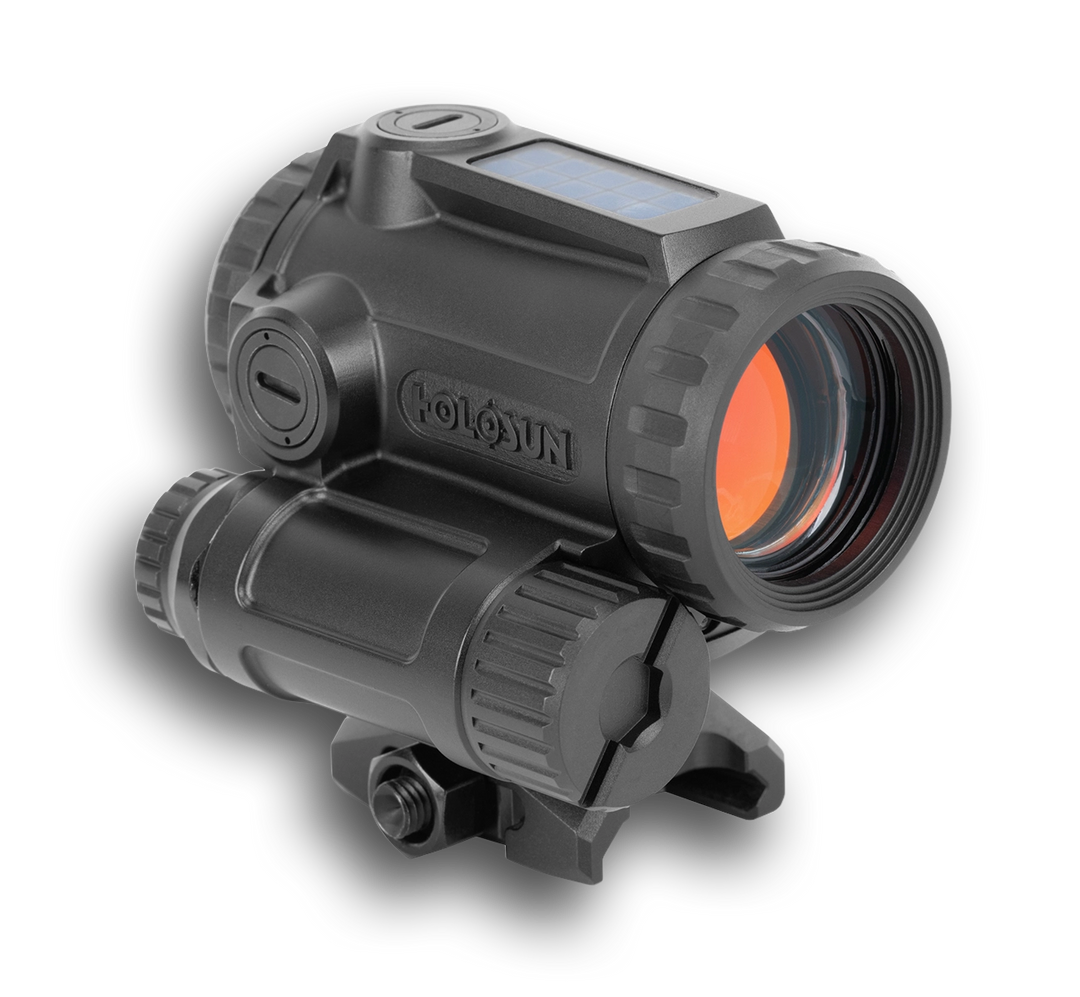

Holosun ARO-EVO-DUAL Enclosed Red Dot Optic w/ Green & IR Laser
Key Features
- 3-in-1 Aiming System – Integrates a precision red dot, a visible green laser, and an IR laser in one enclosed optic.
- Multi-Reticle System (MRS) – Select a 2 MOA dot, a 65 MOA circle, or a circle-dot for precision or speed.
- Visible Green Laser – 520nm Class 3R (<5mW) laser for fast daylight and low-light aiming.
- Infrared Laser – 850nm Class 1 (<0.7mW) IR laser for night-vision use under NODs.
- Tri-Channel Coaxial Zeroing – Red dot and both lasers are slaved together, so zeroing one aligns all three.
- Dual-Button Crane Remote – Included pressure pad activates the lasers without breaking your grip.
- Solar Failsafe & Shake Awake – Forward sensor auto-brightness, solar backup power, and motion-activated wake.
- Rugged 26mm Enclosed Build – Hard-anodized 6061-T6 aluminum sealed to IPX8 and rated to 1000G.
Description
The Holosun ARO-EVO-DUAL builds the ARO-EVO enclosed red dot into a true 3-in-1 aiming system, integrating a precision red dot with a visible green laser and an infrared laser in one streamlined optic. Both lasers project through the front lens and are coaxially slaved to the reticle, so zeroing the dot aligns all three aiming points and eliminates the bulk and alignment headaches of a separate laser unit.
A wide 26mm window and Holosun's Multi-Reticle System deliver a fast, adaptable sight picture (2 MOA dot, 65 MOA circle, or both), while a forward light sensor with Solar Failsafe keeps reticle brightness matched to the environment and Shake Awake conserves power. The 520nm Class 3R green laser handles daylight aiming and the 850nm Class 1 IR laser drives night-vision use, both controlled through the included dual-button Crane-plug pressure pad with internal cable routing. Powered by a single CR123A and housed in hard-anodized 6061-T6 aluminum rated IPX8 and 1000G, it ships with a 1.63″ lower 1/3 co-witness mount. Optic reticle is red.
Specifications
▼
| OPTICAL | |
| Reticle | Multi-Reticle System: 2 MOA Dot, 65 MOA Circle, or Circle-Dot |
| Reticle Color | Red (650nm) |
| Magnification | 1× |
| Light Source | LED (650nm red) |
| Coatings | Multi-layer reflective coatings |
| Parallax / Eye Relief | Parallax-free / Unlimited |
| LASER | |
| Visible Laser | Green, 520nm, Class 3R (<5mW) |
| IR Laser | 850nm, Class 1 (<0.7mW) |
| Zeroing | Tri-channel coaxial – dot, visible & IR zero together |
| Remote Switch | Dual-button Crane-plug pressure pad (included) |
| POWER | |
| Power Source | CR123A (side-loading tray, removable) |
| Red Dot Runtime | Up to 300,000 hours (setting 6) |
| Green Laser Runtime | Up to ~12 hours |
| IR Laser Runtime | Up to ~50 hours |
| Brightness Settings | 12 (8 daylight, 4 night-vision); Auto & Manual |
| Solar Failsafe | Yes – brightness assist & backup power |
| MECHANICAL | |
| Housing | 6061-T6 Aluminum (hard-anodized black) |
| Adjustment | 0.5 MOA per click |
| W&E Travel | ±50 MOA |
| Window Size | 1.02″ (26mm) diameter |
| Dimensions | 2.68″ × 1.77″ × 2.6″ |
| Weight | 8.15 oz (optic) / 2.45 oz (mount) |
| DURABILITY & FITMENT | |
| Waterproof Rating | IPX8 |
| Vibration | 1000G |
| Optic Footprint | Aimpoint T1 / T2 (micro) |
| Mounting | Included 1.63″ lower 1/3 co-witness (Picatinny) |
Package Includes
- ✓1x ARO-EVO-DUAL Enclosed Red Dot Optic
- ✓1x 1.63″ Lower 1/3 Co-Witness Mount
- ✓1x Dual-Button Crane-Plug Remote Pressure Pad
- ✓1x Lens Cloth
- ✓1x Multi-Tool
- ✓1x Wrench
- ✓1x User Manual & Warranty Card
