Holosun ARO-CORE MRS Enclosed Multi-Reticle Rifle Sight
Key Features
- Multi-Reticle System (MRS) – selectable 2 MOA dot, 65 MOA circle, or circle-dot for speed or precision
- Refined 22mm Window – larger viewing area for a clearer sight picture and faster target acquisition
- Shake Awake + Lockout Mode – instant motion-activated wake; Lockout prevents accidental setting changes
- 12 Brightness Settings – 10 daylight plus 2 night-vision compatible levels
- Side-Loading CR2032 – 50,000-hour battery life; swap the battery without dismounting
- Dual Mounts Included – 1.63″ lower 1/3 co-witness pedestal mount plus a 1.05″ low mount
- Mates With Magnifier Series – 22mm housing pairs cleanly with Holosun HM-series magnifiers
- Rugged Aluminum (MAO Finish) – IP67 waterproof and 1000G vibration resistant
Description

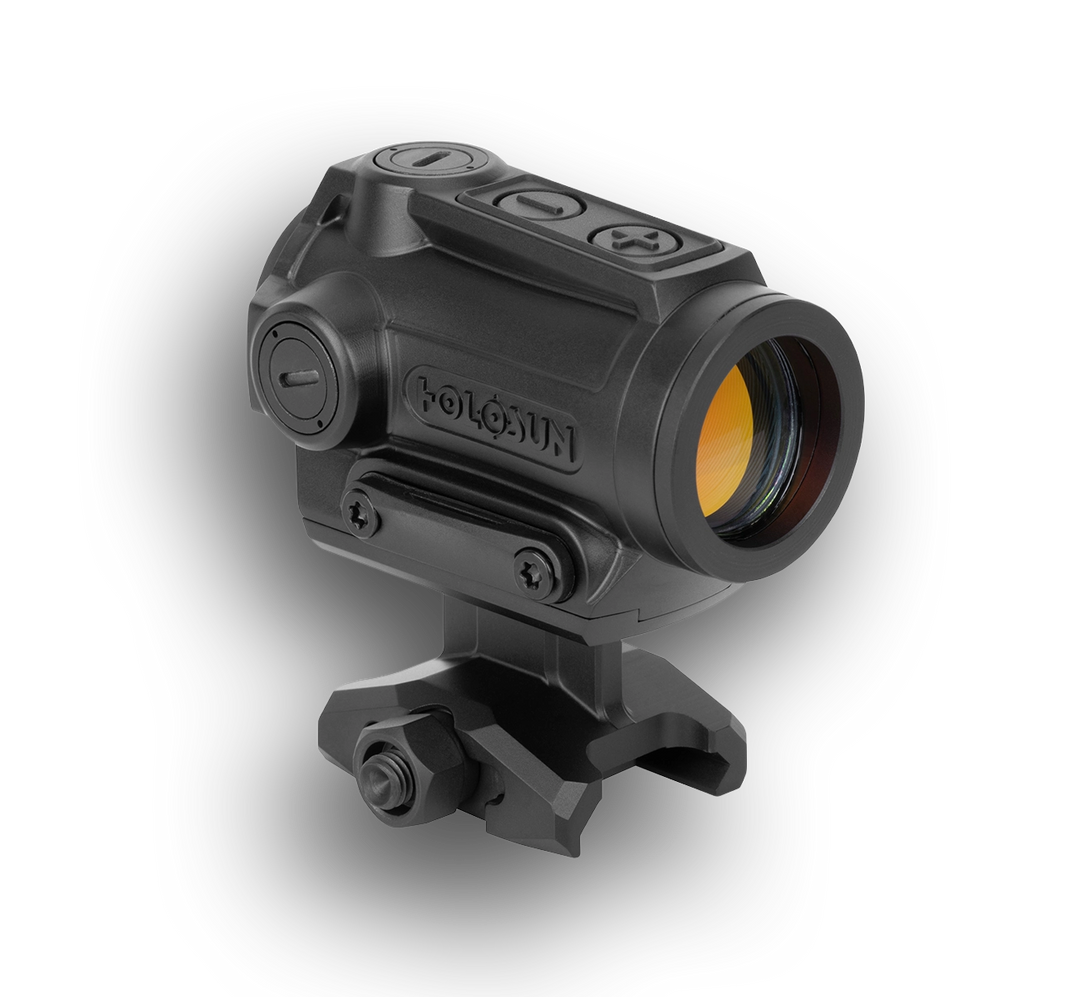

The Holosun ARO-CORE (Advanced Rifle Optic Core) is an evolution of the popular 20mm 403 and 503 series, built around an all-new 22mm enclosed housing that mates perfectly with Holosun's magnifier series and a new 1.63″ lower 1/3 co-witness pedestal mount. This MRS model features the Multi-Reticle System, letting you select a 2 MOA dot for precision, a 65 MOA circle for rapid acquisition, or a circle-dot combination for the best of both.
The aluminum housing with MAO finish delivers IP67 waterproofing and 1000G vibration resistance, while Shake Awake with Lockout Mode and a side-loading CR2032 battery (up to 50,000 hours) keep the optic ready and simple to maintain. Each sight ships with both a 1.63″ lower 1/3 mount and a 1.05″ low mount. Available in Red, Green, or Gold reticle.
Specifications
▼
| OPTICAL | |
| Reticle | 2 MOA Dot & 65 MOA Circle (selectable Circle-Dot) |
| Wavelength | 650nm (Red / Gold), 520nm (Green) |
| Magnification | 1x |
| Window Size | 0.866″ (22mm) |
| Eye Relief | Unlimited |
| Parallax | Parallax-Free |
| Multi-Coatings | Yes |
| Selectable Reticle | Yes |
| ELECTRONIC | |
| Light Source | LED |
| Battery | CR2032 (side-loading tray) |
| Battery Life | 50,000 hrs (setting 6) |
| Brightness Settings | 10 Daylight + 2 Night-Vision Compatible |
| Removable Battery | Yes |
| MECHANICAL | |
| Housing Material | Aluminum |
| Surface Finish | MAO |
| Housing Color | Black |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| Submersion | IP67 |
| Vibration | 1000G |
| Working Temp. | -30°C ~ 60°C |
| Storage Temp. | -40°C ~ 70°C |
| PHYSICAL | |
| Body Dimensions | 2.48″ × 1.54″ × 2.63″ |
| Body Weight | 3.38 oz |
| Central Mount Height | 1.63″ |
| Low Mount Height | 1.05″ |
| Mount Weight | 1.73 oz |
| FITMENT | |
| Included Mounts | 1.63″ Lower 1/3 + 1.05″ Low |
| Optic Footprint | T1 / T2 |
| Direct Mount | Picatinny |
| FEATURES | |
| Shake Awake | Yes |
| Lockout Mode | Yes |
| Memory Mode | Yes |
| Solar Power | No |
Package Includes
- ✓ARO-CORE MRS Optic
- ✓CR2032 Battery
- ✓1.63″ Lower 1/3 Co-Witness Mount
- ✓1.05″ Low Mount
- ✓Lens Cloth
- ✓Multi-Tool
- ✓Wrench
- ✓Manual
- ✓Warranty Card
