Key Features
- 256 x 192 Sub-35mK Thermal Sensor
- 15mm f/1.0 Lens System

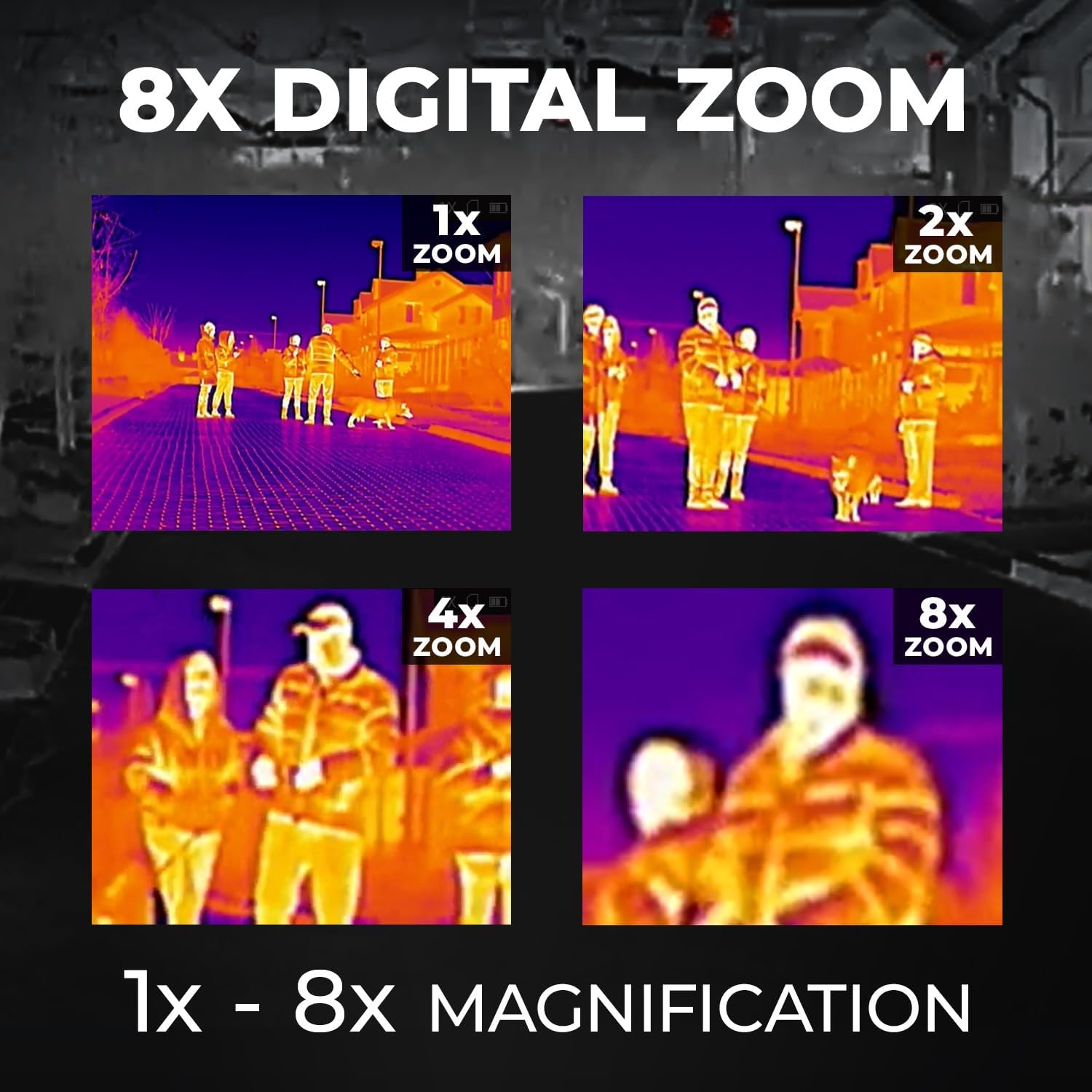

- 2x Magnification, 1-8 Digital Zoom

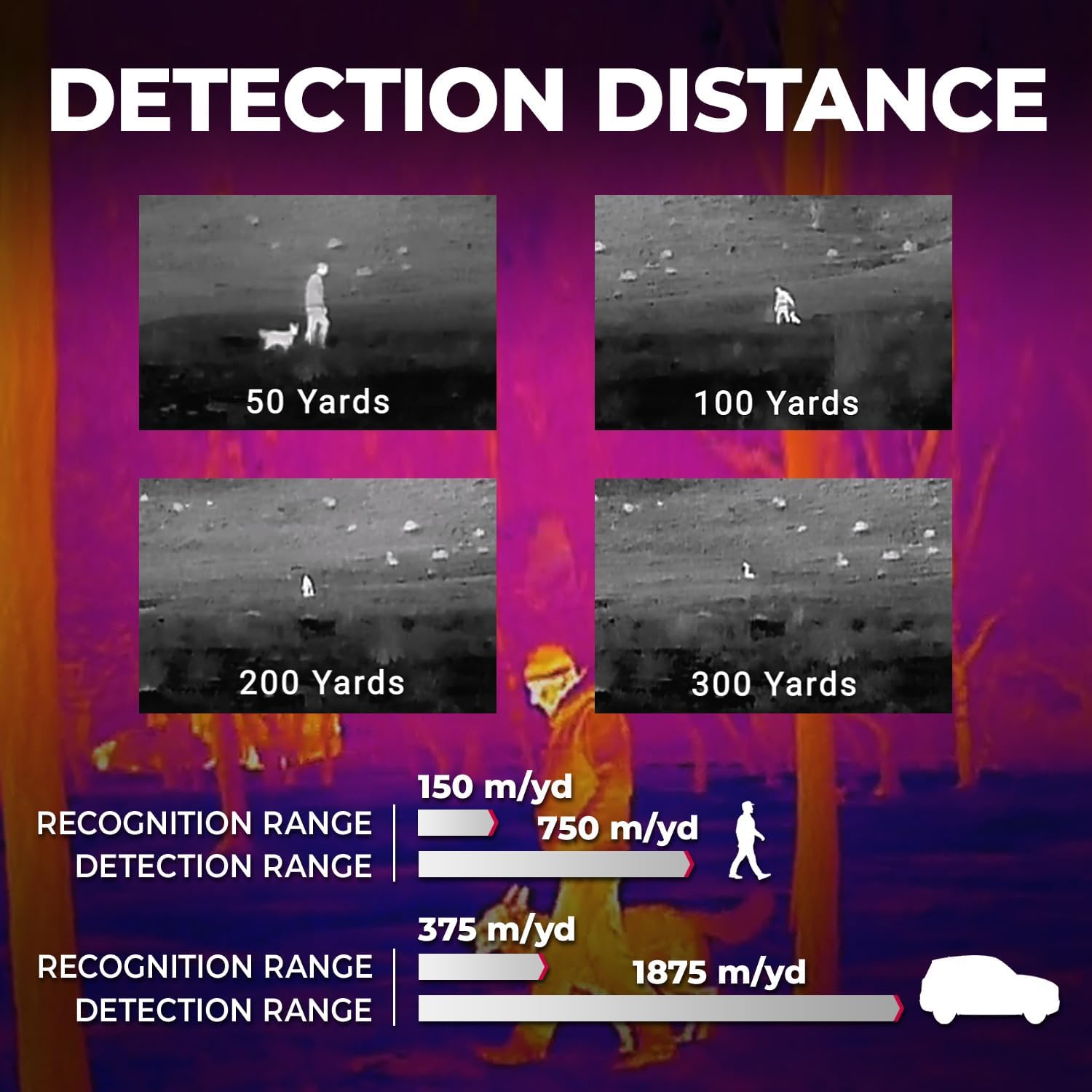

- 820 Yard Detection Range
- 11.7 x 8.8° Field of View
- Black/White/Red Hot & Fusion Palettes
- 1280 x 960 LCOS Display
- Wi-Fi Streaming to Networked Devices

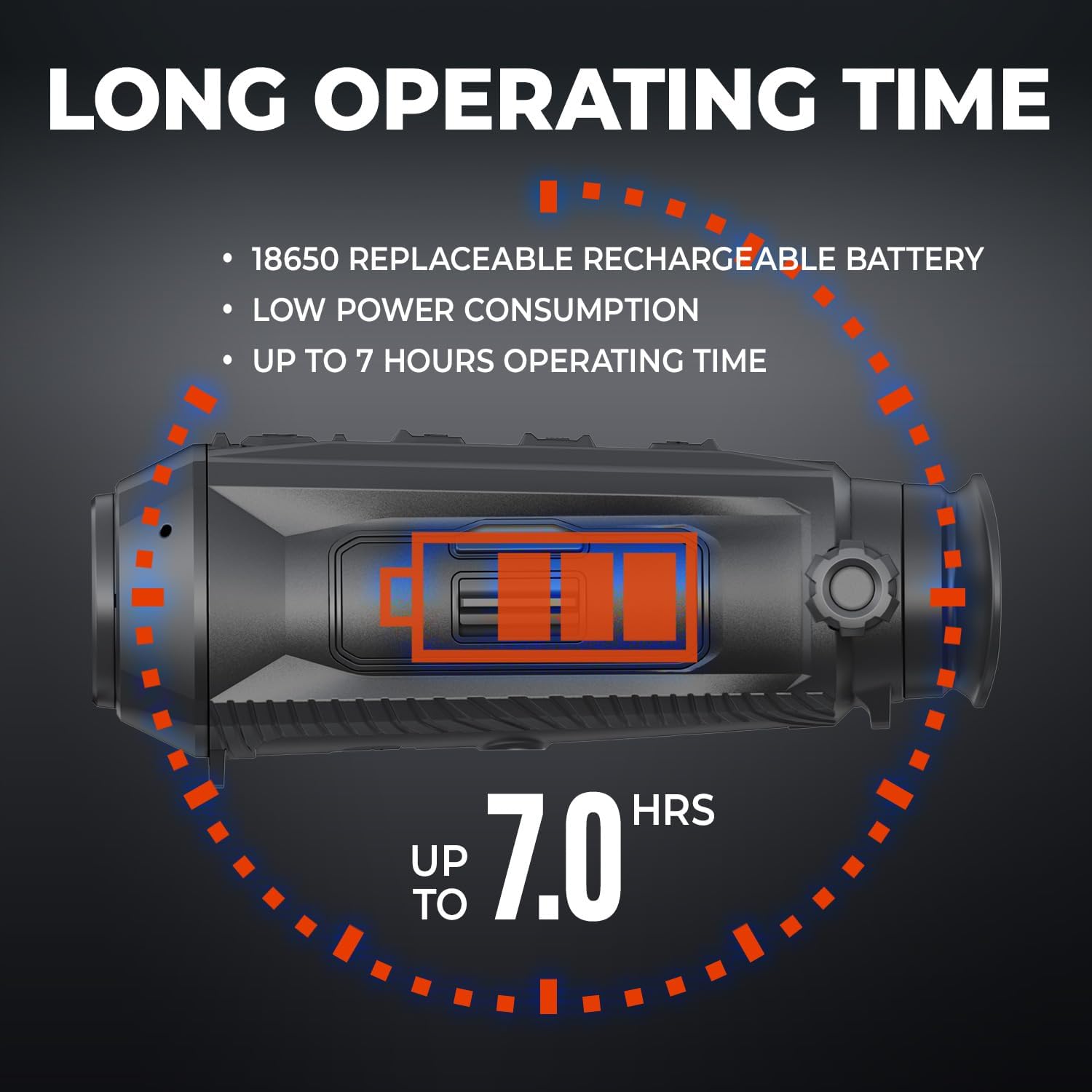

- Removable 18650 Rechargeable Battery
- IP67 Rated, Dust-Tight & Submersible
Description

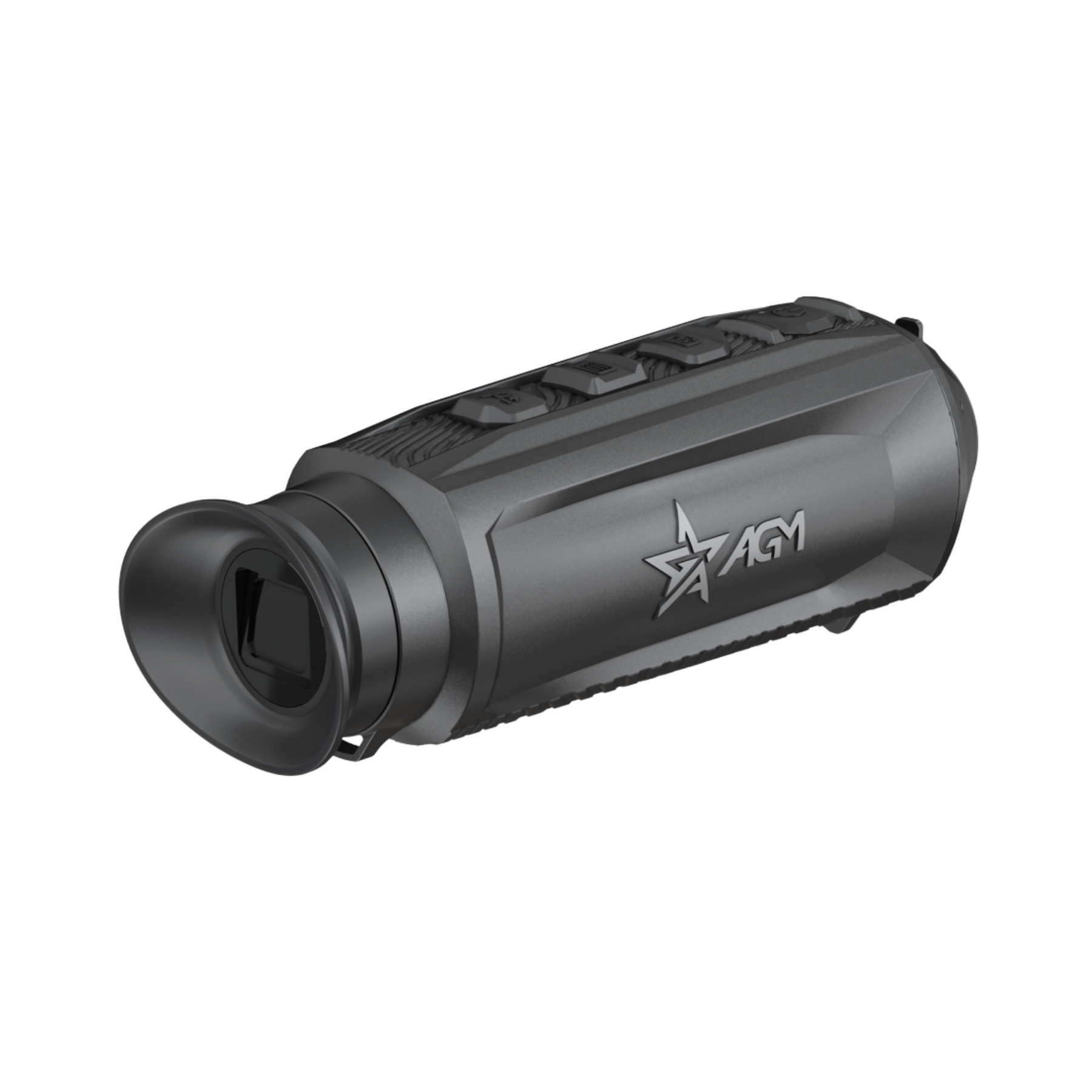

The AGM TaipanV2 Thermal Monocular series is the newest addition to what is already the most extensive thermal product assortment in the world! The TaipanV2 series boasts multiple objective lens sizes which are paired with an industry-leading 256 resolution 12 micron, sub-35mK thermal detector. The Taipan V2 also bring many new advancements to the product family which users have been clamoring for in the original Taipan monoculars. These primary improvements include moving from a nonremovable rechargeable internal battery to a single removable rechargeable 18650 and a new 90 degree tilt sensor which powers off the display to save battery life!
The TaipanV2 also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: F1.0 aperture optics, 50Hz refresh rate, 16GB of built-in memory, Wi-Fi compatibility to pair with the AGM Connect App, an IP67 waterproof rating, USB Type-C port for external power capabilities and 4 color palettes. They also utilize a wider rubber eyepiece ton make viewing the 1280 LCOS display extremely comfortable in the field when viewing for long periods of time in a single session.
The TaipanV2 are built for well-rounded use and would work great for hunting, farming/herd protection, law enforcement, search & rescue, boating, camping and other general outdoors activities.And of course, all TaipanV2 models will come with AGM’s 5 year transferable warranty.

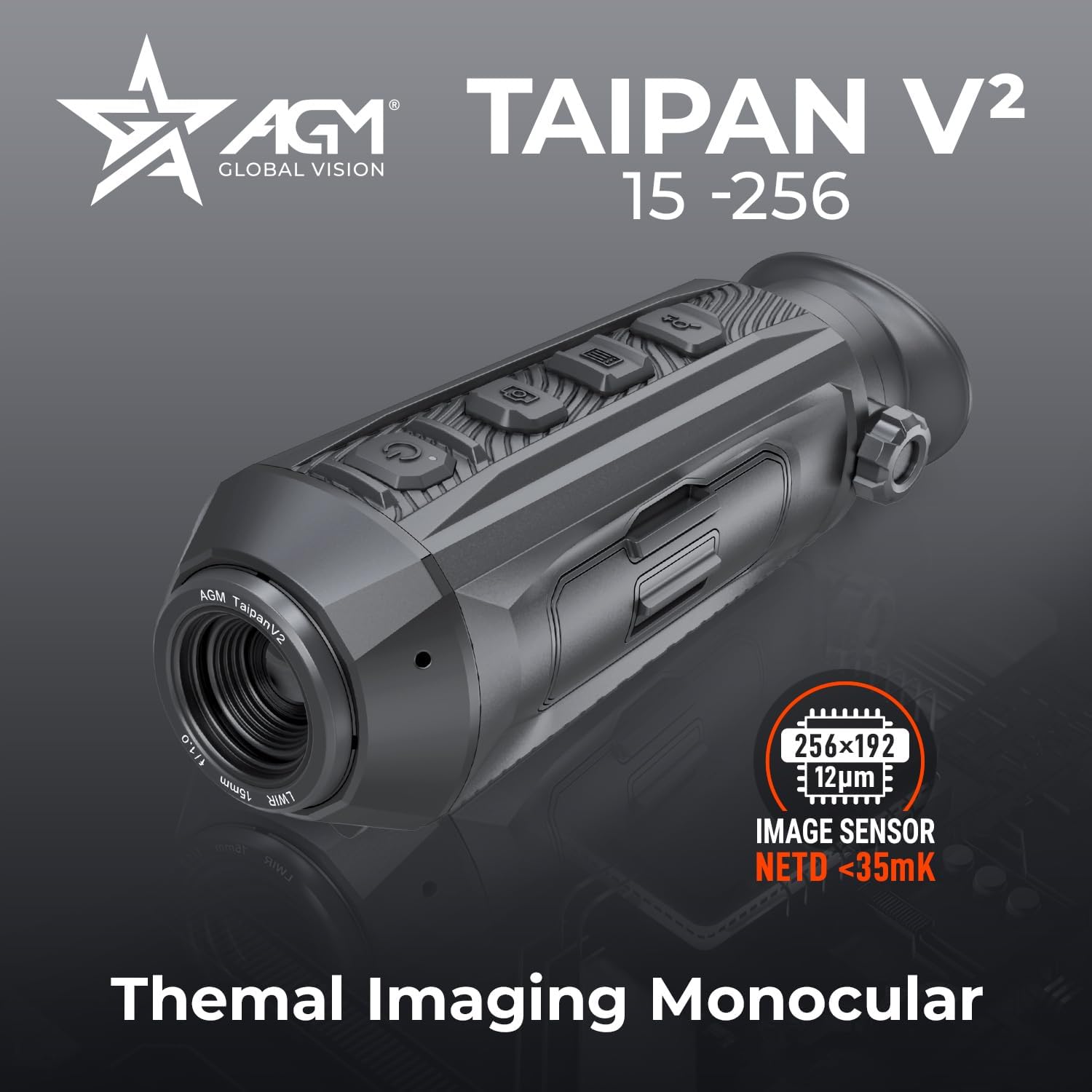

- 256 x 192 vanadium oxide thermal sensor
- Under 35mK noise equivalent temperature difference for clean image
- 8- to 14-micron spectral response
- 15mm f/1.0 lens, 2x magnification, 1x/2x/4x/8x digital zoom
- 50 Hz refresh rate for smooth video capture
- 1280 x 960 LCOS display
- Black hot, white hot, red hot, fusion palettes
- 16GB onboard memory
- Removable, rechargeable 18650 li-ion battery
- USB-C recharging
- 90° tilt sensor powers off display to save battery life
- IP67 rated, dust-tight, submersible to 3.3'
- Pairs via built-in Wi-Fi hotspot with devices running the AGM Connect App
- Wide rubber eyepiece for viewing comfort
Items Included

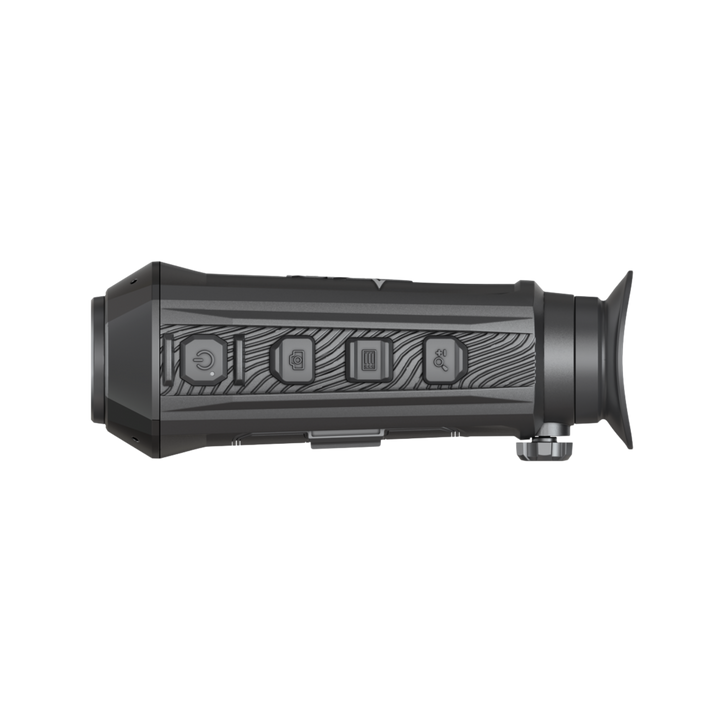

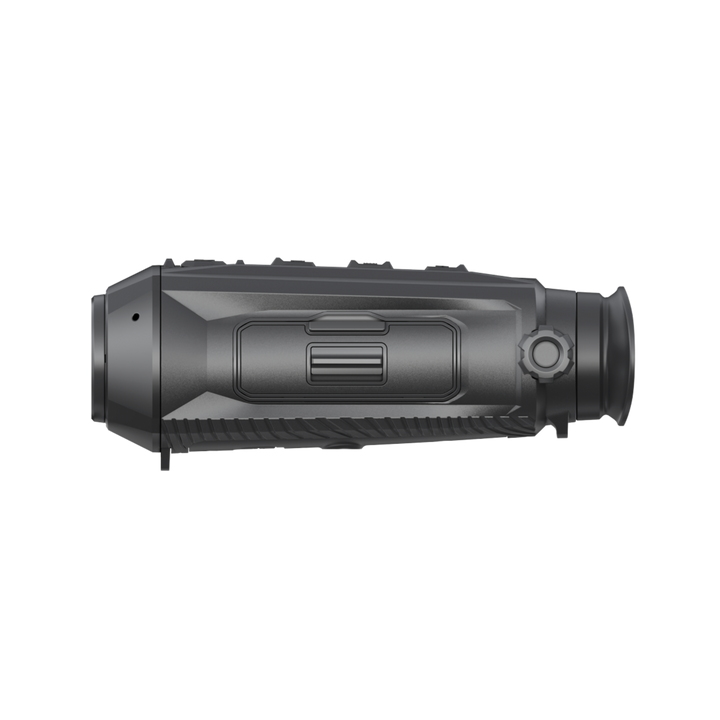

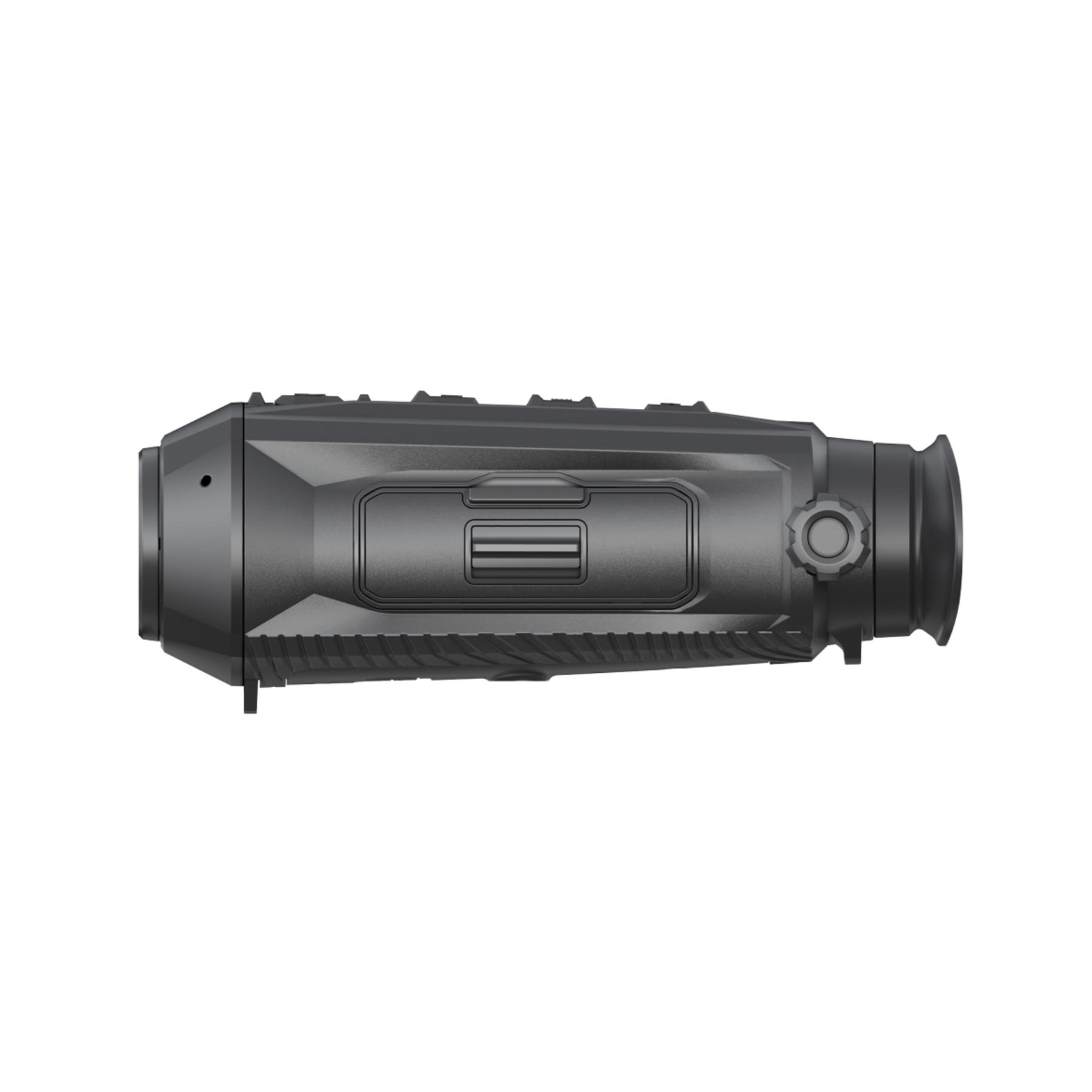

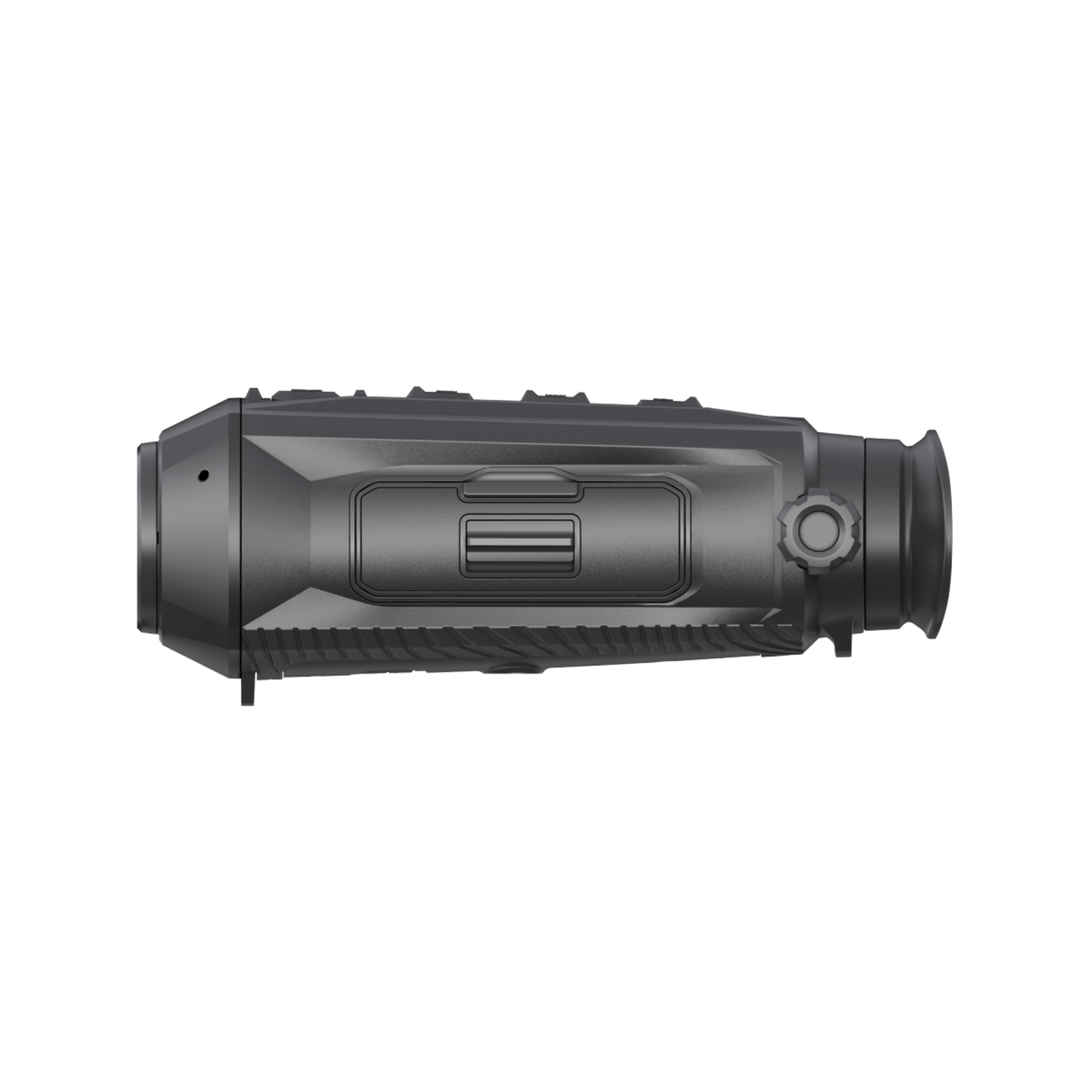

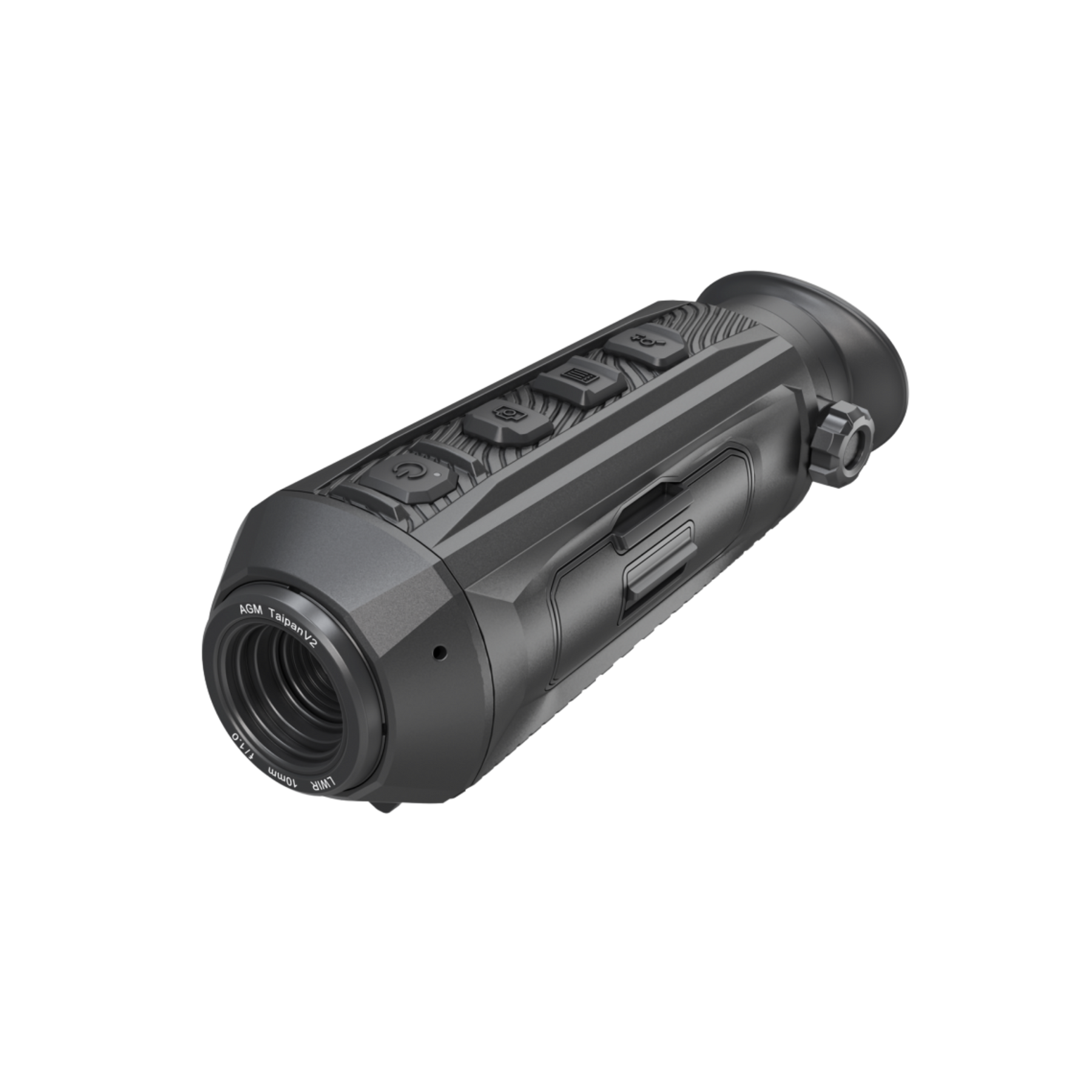

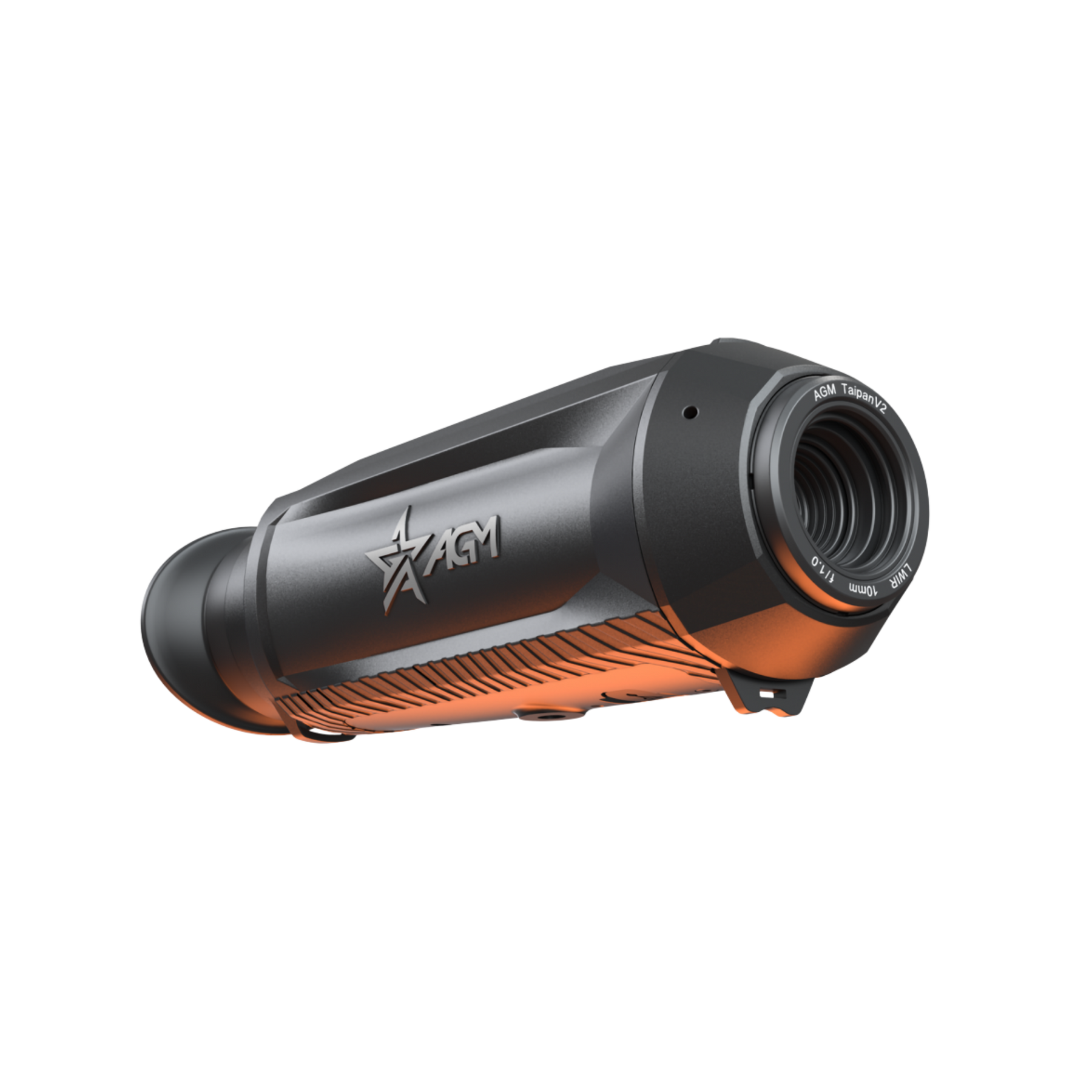

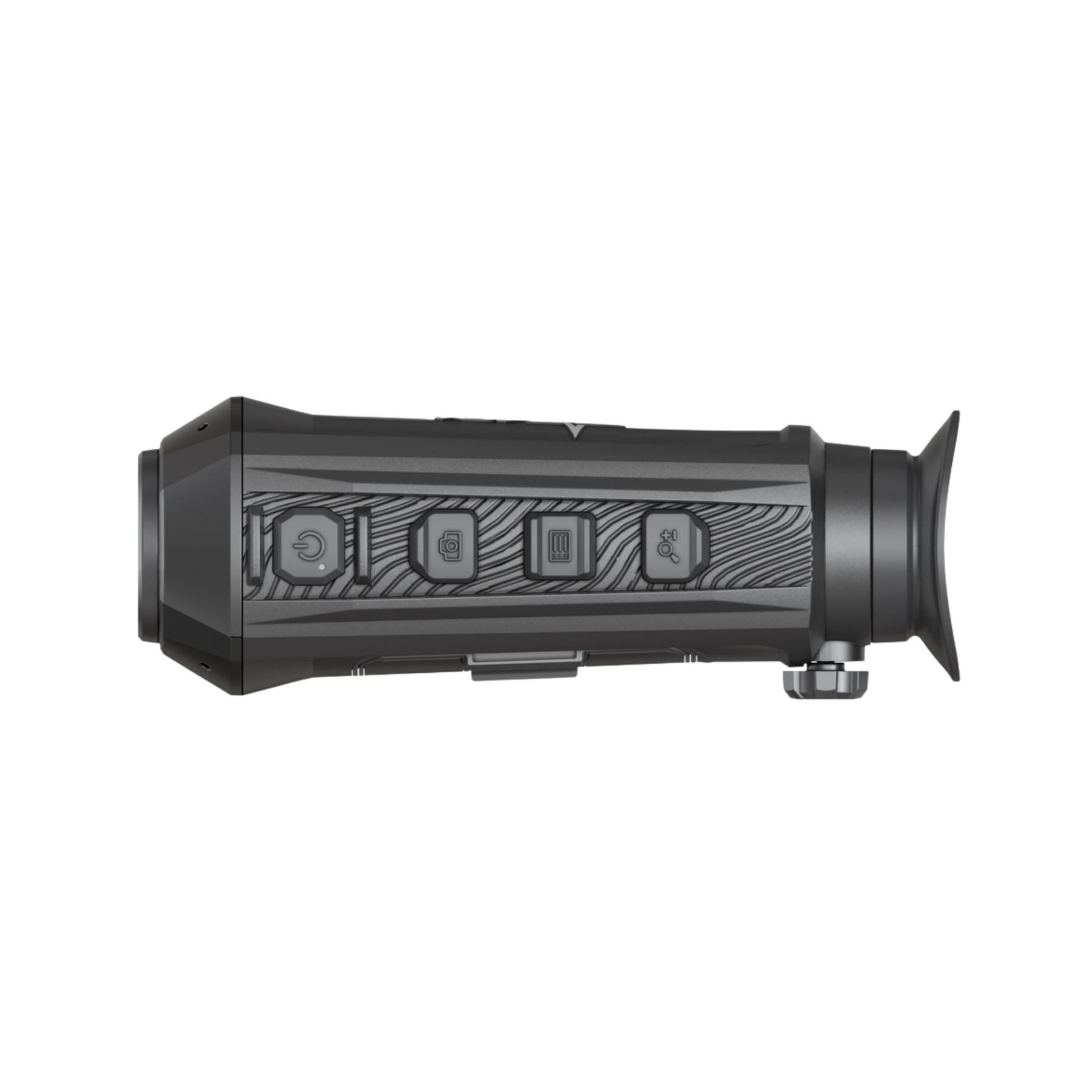

- AGM TaipanV2 15-256 Thermal Imaging Monocular (50 Hz)
- 18650 Battery
- USB Cable
- AC Adapter/Charger with US & EU Plugs
- Lanyard
- Lens Cloth
- Carry Bag
- Limited 5-Year Manufacturer Warranty
Specifications
| Configuration |
Monocular
|
| Sensor Size |
256 x 192
|
| Display |
1280 x 960
|
| Magnification |
2x
1 to 8x
|
| Inputs/Outputs |
1x USB-C (5 VDC at 2 A)
|
| Battery |
Rechargeable Lithium-Ion
|
General
| Configuration |
Monocular
|
| Sensor Size |
256 x 192
|
| Display |
1280 x 960
|
| Refresh Rate |
50 Hz
|
| Pixel Size |
12 µm
|
| Spectral Range |
8 to 14 µm
|
| Thermal Sensitivity |
<35 mK at f/1.0, 77°F / 25°C
|
| Detection Range |
820 yd / 749.8 m
|
Performance
| Magnification |
2x
1 to 8x
|
| Lens System |
15 mm, f/1.0
|
| Angle of View |
17.5 x 13.1°
|
| Diopter Adjustment |
-5 to +3
|
Camera
| Storage |
16 GB via Built-In Memory
|
Connectivity
| Wireless |
Wi-Fi
|
| Inputs/Outputs |
1x USB-C (5 VDC at 2 A)
|
Physical
| Battery |
Rechargeable Lithium-Ion
|
| Operating Conditions |
-22 to 131°F / -30 to 55°C
|
| Environmental Resistance |
Dust/Water-Resistant (IP67)
|
| Dimensions |
6.2 x 2.4 x 2.2" / 15.7 x 6.1 x 5.6 cm
|
| Weight |
11 oz / 313 g (with Batteries)
|
Packaging Info
| Package Weight |
2.735 lb
|
| Box Dimensions (LxWxH) |
10.6 x 7.9 x 3.8"
|
