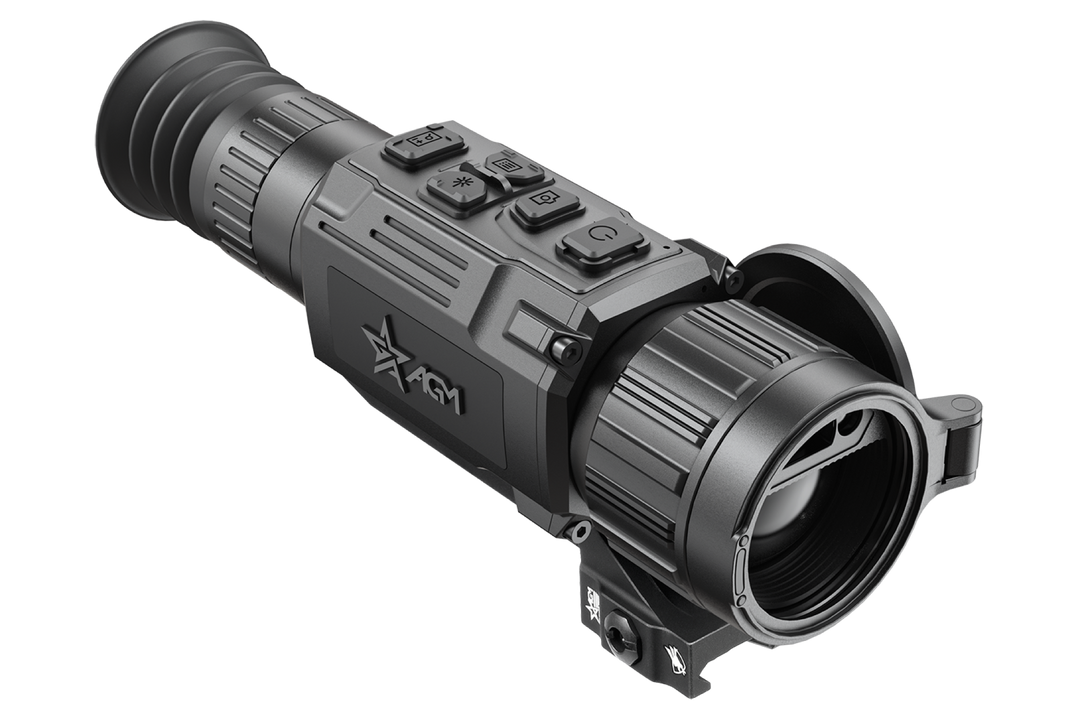

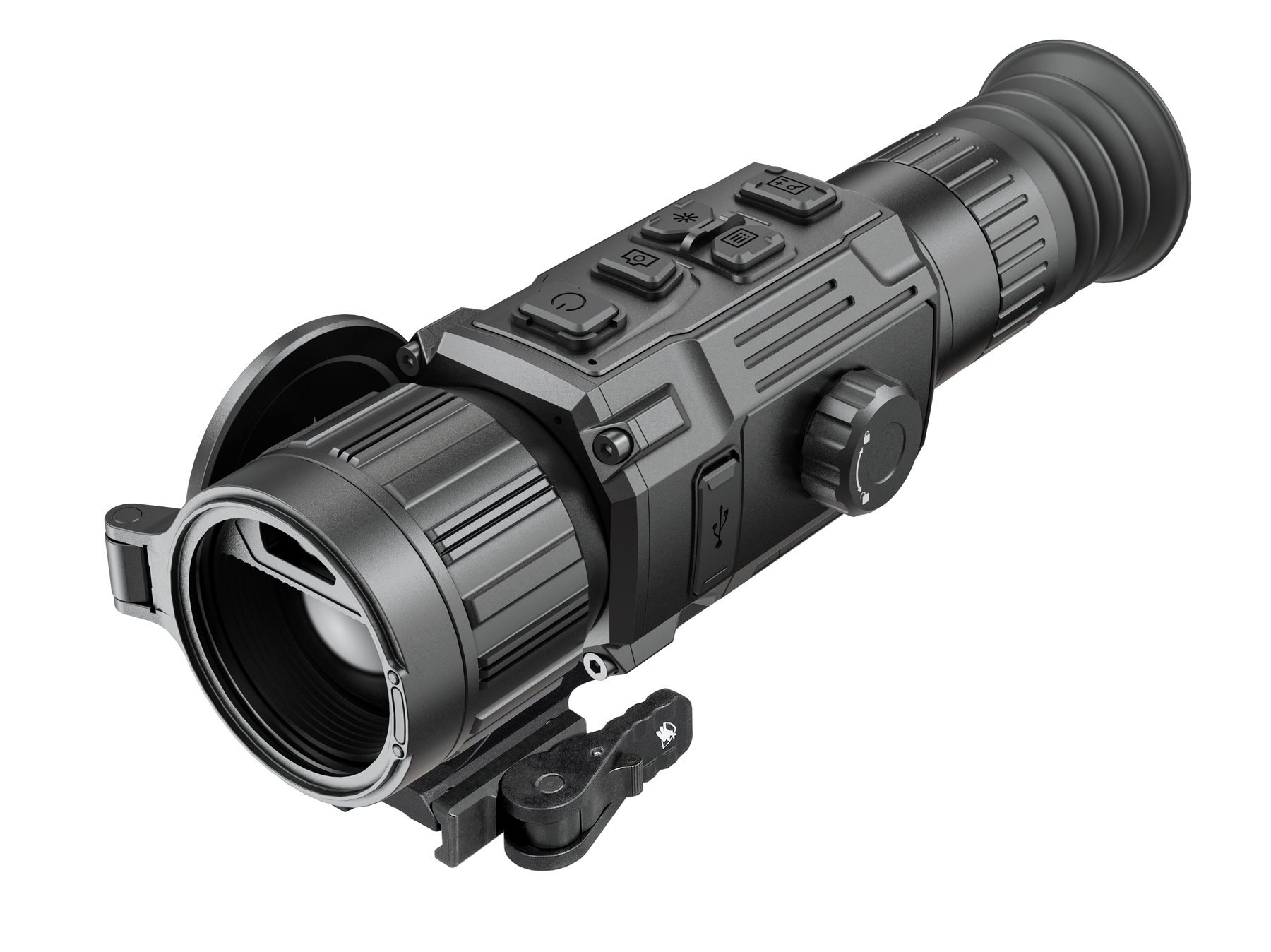

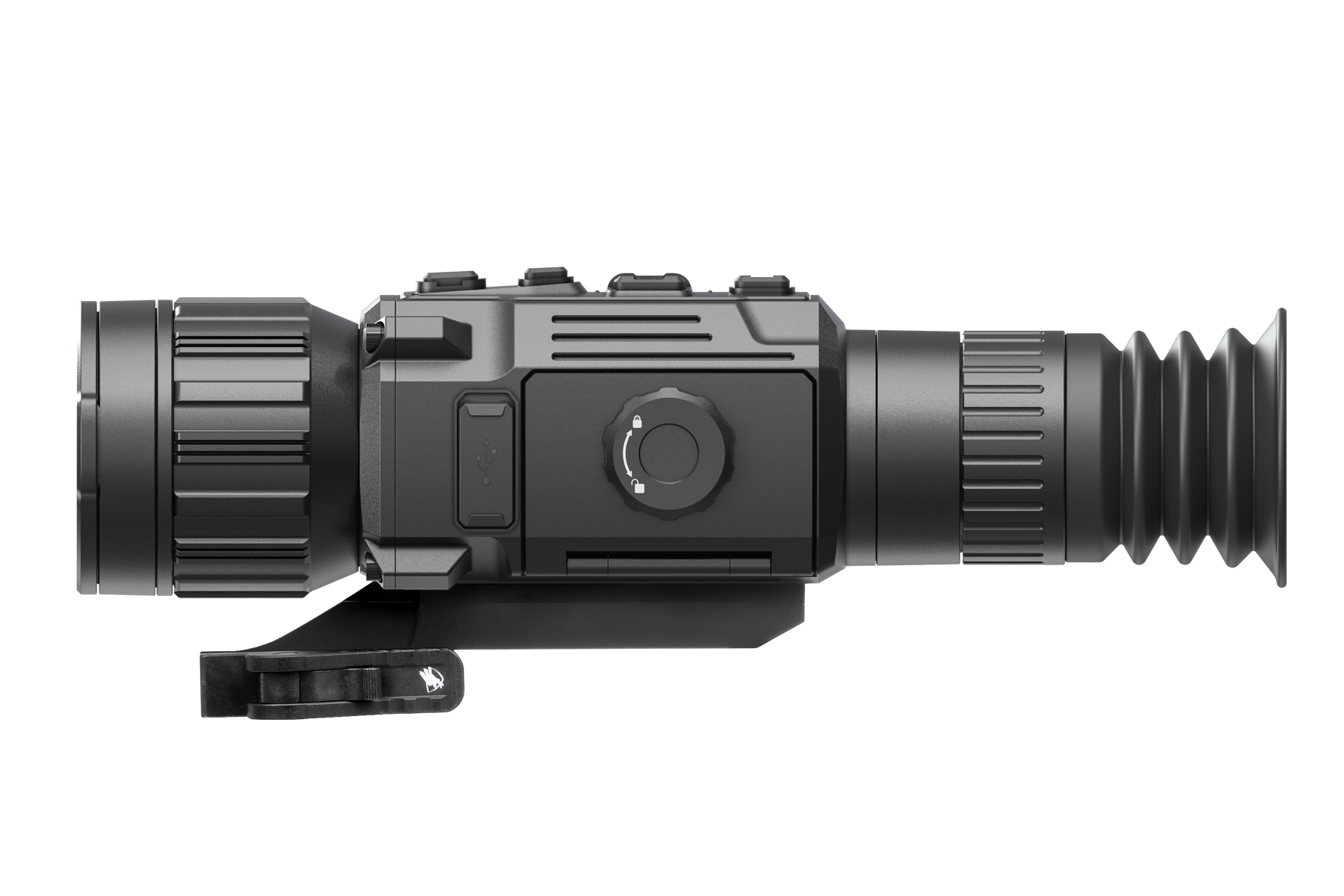

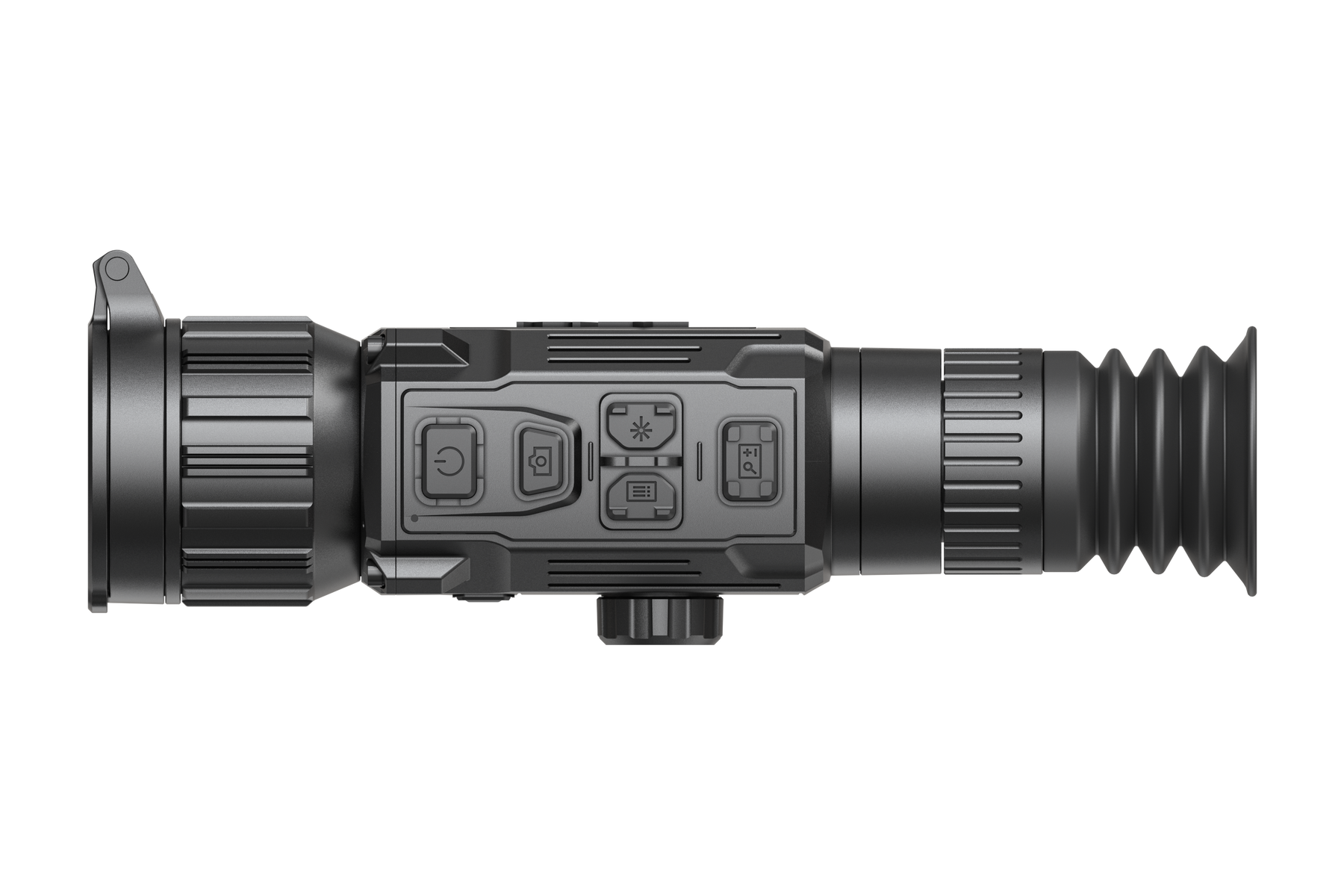

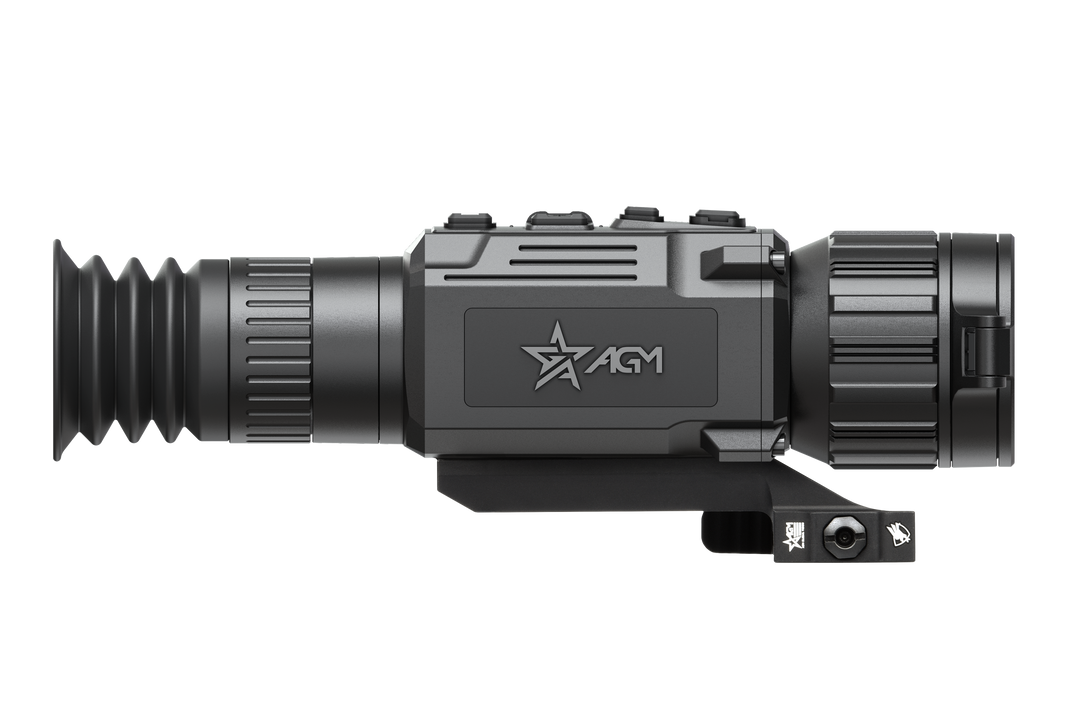

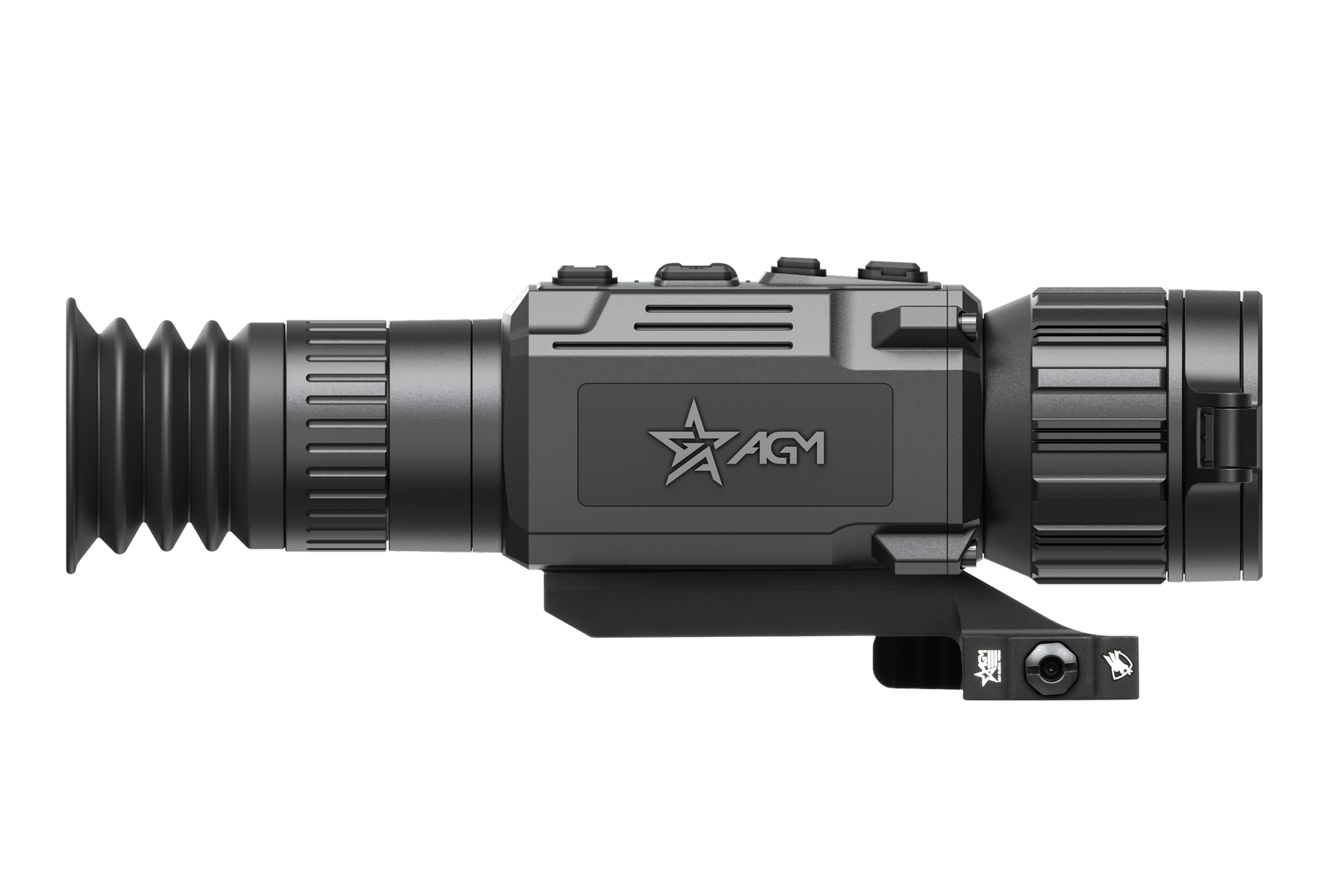

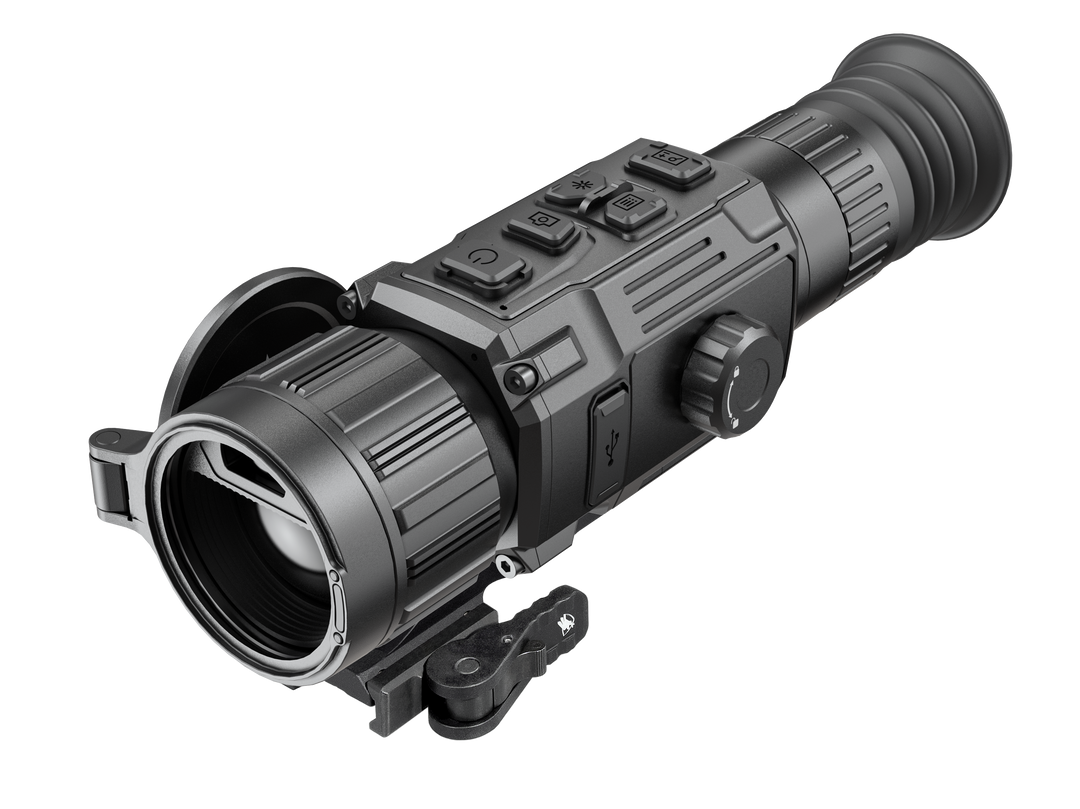

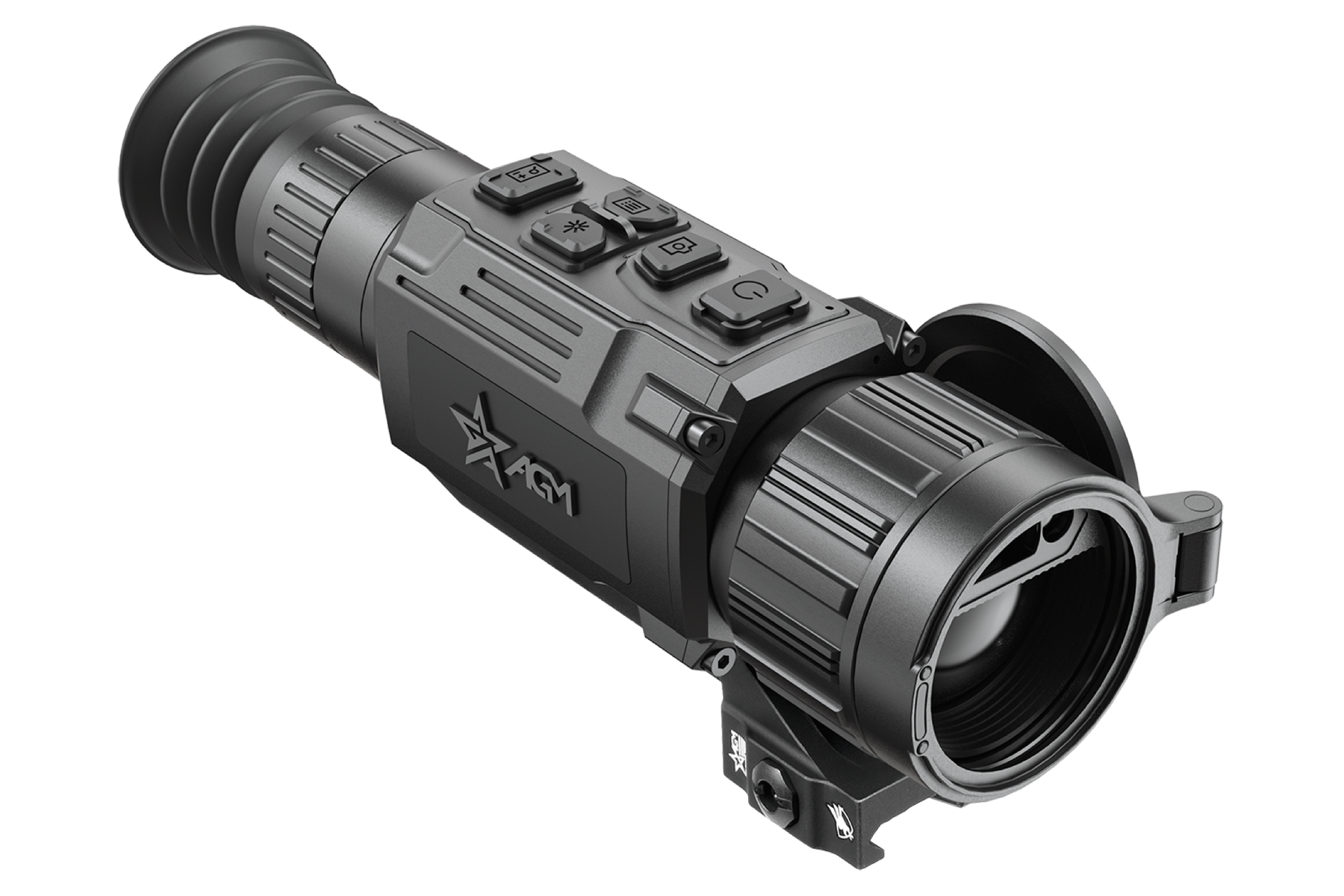

AGM Rattler V3 LRF 35-640 Thermal Rifle Scope – 640×512, 35mm, In-Lens Laser Rangefinder
Key Features
- Sub-15 mK 640×512 Sensor – industry-leading 12-micron detector for the sharpest 640 thermal image in the line
- In-Lens 1,000m Laser Rangefinder – LRF built into the objective keeps a compact, low profile
- 2560×2560 OLED Display – massive high-resolution screen paired with AGM Image Boost 2.0 processing
- 35mm Germanium Lens, 2.5–20x – 1.5-mile detection range with a 2.5x base magnification for open terrain
- Shutterless NUC – non-freezing algorithmic image correction with no blackout
- On-Board Ballistic Calculator – real-time holdover generated from integrated range data
- Removable NE-4400 Battery – robust, glove-friendly swappable pack good for 5.5+ hours
Description
The AGM Rattler V3 LRF 35-640 pairs a 35mm F1.0 germanium lens with an industry-leading sub-15 mK, 12-micron 640×512 detector and a 2560×2560 OLED display to deliver one of the sharpest thermal images in its class, with a detection range of about 1.5 miles. A fully integrated in-lens 1,000-yard laser rangefinder and on-board ballistic calculator give you accurate distance and firing solutions in real time.
A redesigned eyepiece sets the base magnification at 2.5x — ideal for predator hunting in open country — with digital zoom to 20x. The V3 adds a shutterless NUC and AGM’s Image Boost 2.0 algorithm, glove-friendly buttons, and a removable NE-4400 rechargeable battery for 5.5+ hours of runtime. Onboard 64 GB storage, shot-activated recording, Wi-Fi, and USB-C external power are all included, along with an American Defense (ADM) 2120 quick-release mount. Backed by AGM’s 5-year transferable warranty.
Specifications
▼
| THERMAL | |
| Detector | 12 µm Uncooled FPA |
| Resolution | 640×512 |
| Refresh Rate | 50 Hz |
| NETD | Less than 15 mK |
| Waveband | 8–14 µm |
| OPTICS & DISPLAY | |
| Lens | 35 mm F1.0 Germanium |
| Base Magnification | 2.5× |
| Digital Zoom | 1× / 2× / 4× / 8× |
| Magnification | 2.5–20× |
| Display | 2560×2560 OLED |
| RANGING & PERFORMANCE | |
| Laser Rangefinder | In-lens, up to 1,000 m |
| Ballistic Calculator | Yes |
| Detection Range (6′ object) | Approx. 1.5 mi |
| POWER & FEATURES | |
| Battery | Removable NE-4400 Li-ion |
| Run Time | 5.5+ hr |
| External Power | USB-C |
| Storage | 64 GB eMMC |
| Recording | Shot-activated, video/audio |
| Connectivity | Wi-Fi |
| GENERAL | |
| NUC | Shutterless |
| Image Processing | Image Boost 2.0 |
| Mount | ADM 2120 quick-release |
| Construction | Waterproof & shockproof |
| Warranty | 5-Year Transferable |
Package Includes
- ✓1x AGM Rattler V3 LRF 35-640
- ✓1x ADM 2120 Mount
- ✓2x NE-4400 Rechargeable Battery
- ✓1x Battery Charger
- ✓1x USB-C Cable
- ✓1x Lens Cloth
- ✓1x Carrying Case
