High-Performance Thermal Imaging: Advanced thermal sensor with 256x192 resolution for clear image detection in all light conditions.

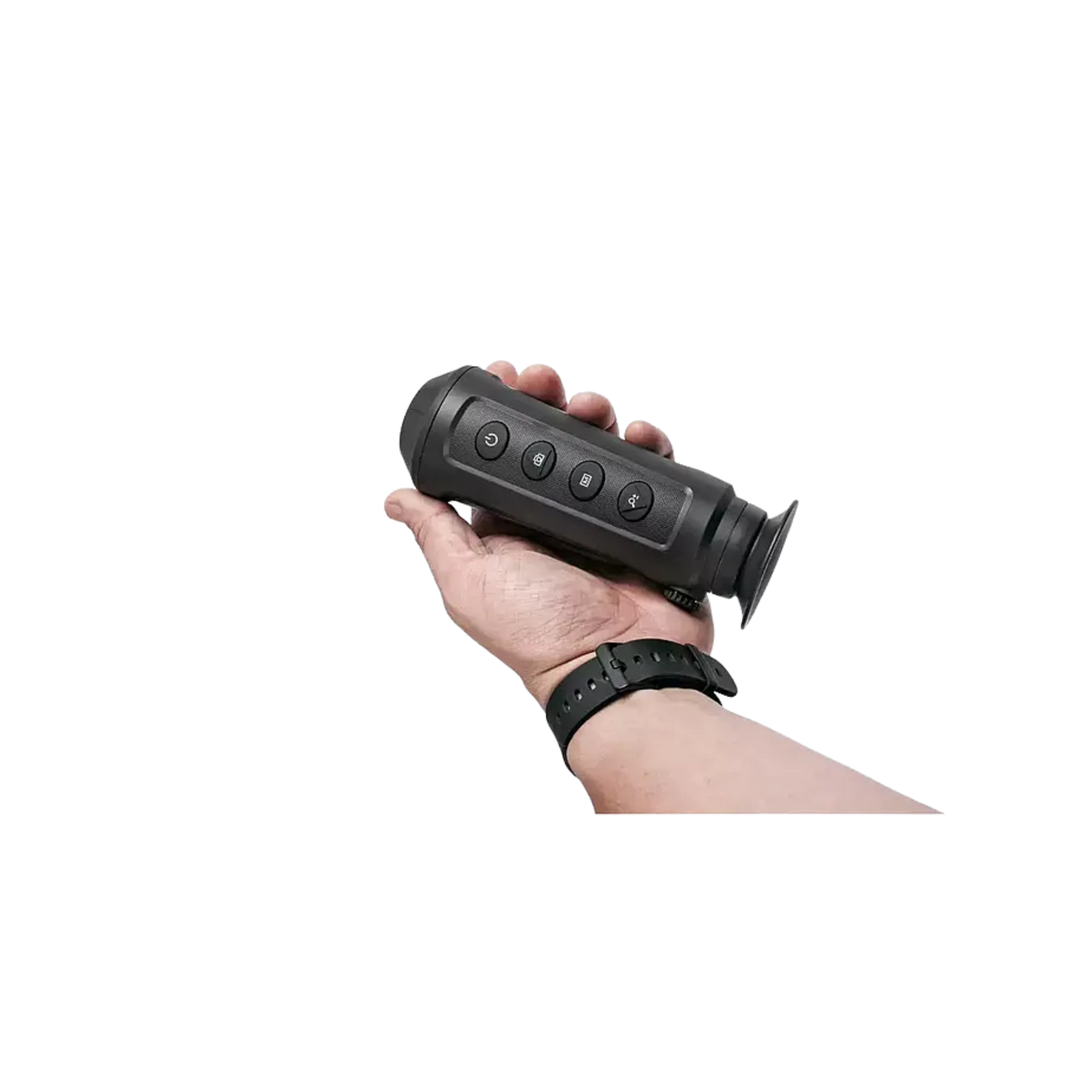

Compact & Lightweight Design: Portable and easy to handle, ideal for outdoor and tactical use.

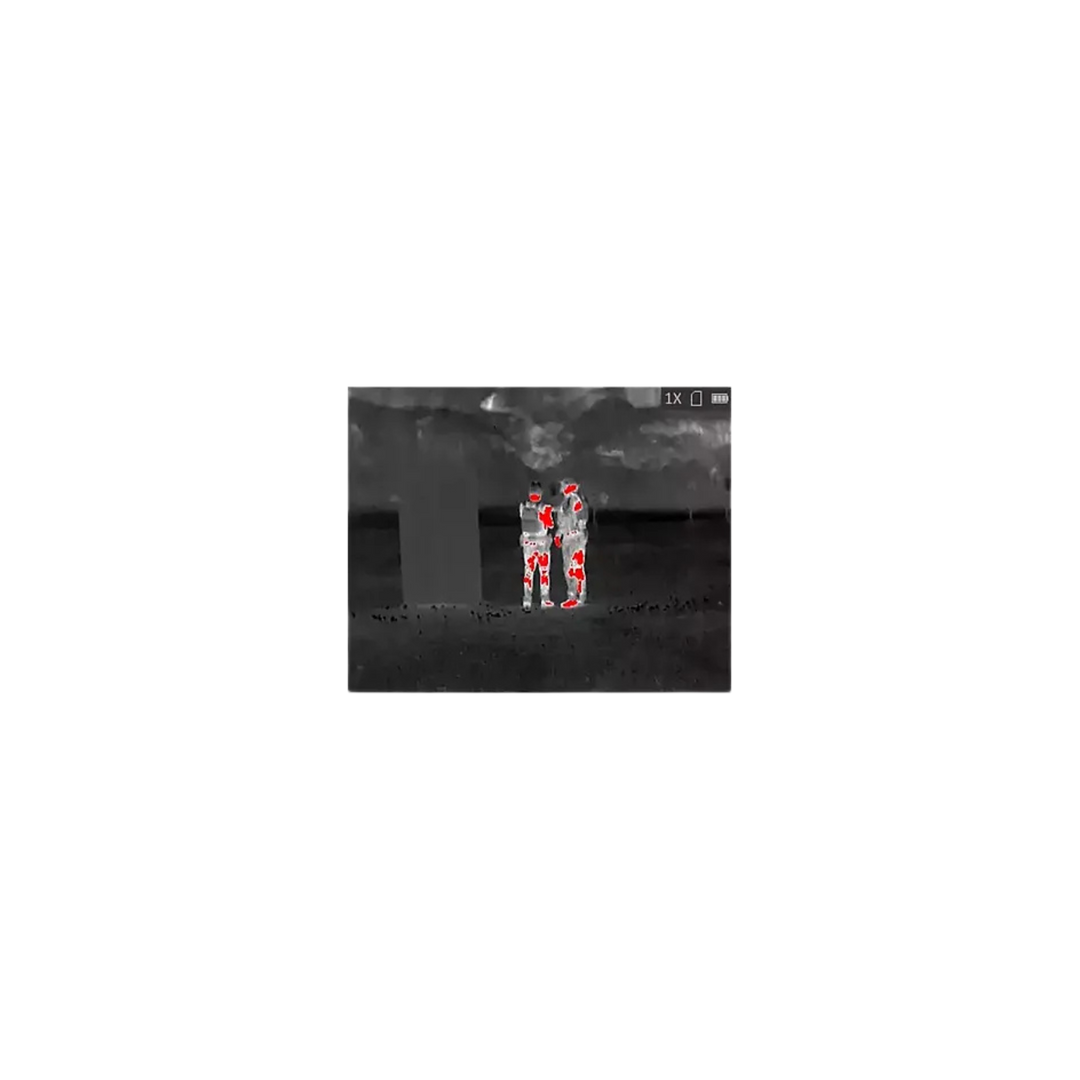

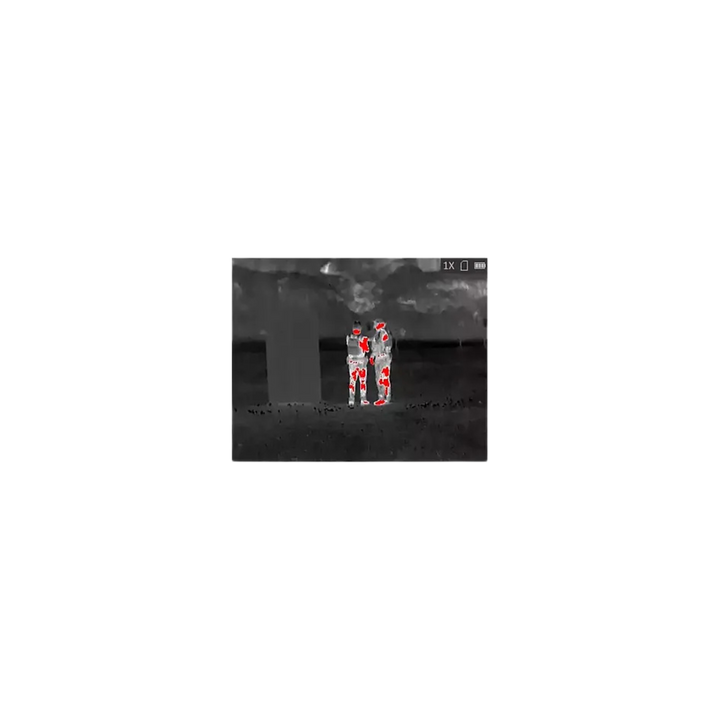

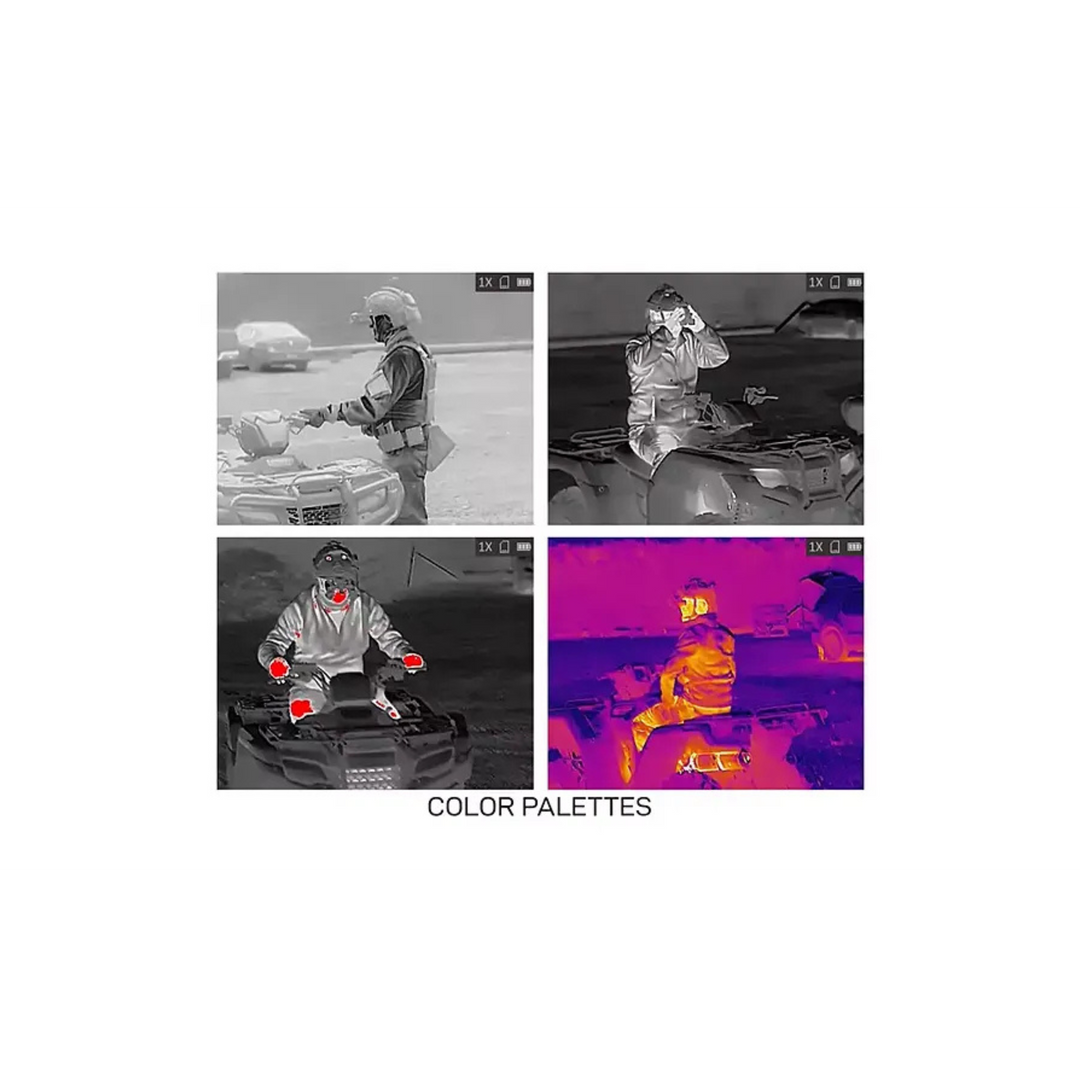

Multiple Color Palettes: Switch between color modes to enhance visibility in different environments.
Built-In Video Recording: Capture images and videos directly through the monocular for review and analysis.
Long-Lasting Battery Life: Reliable battery performance for extended viewing and operation in the field.
Description

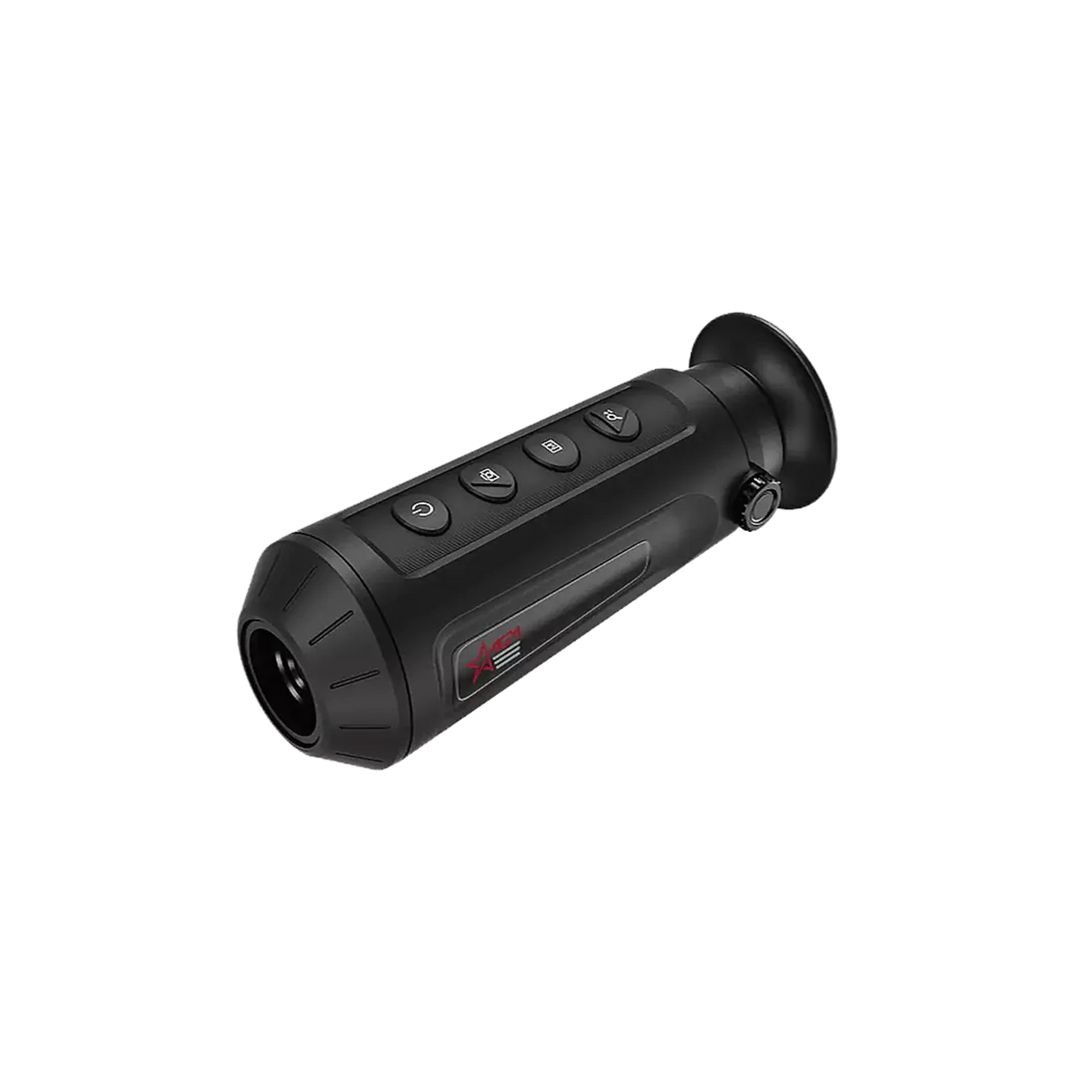

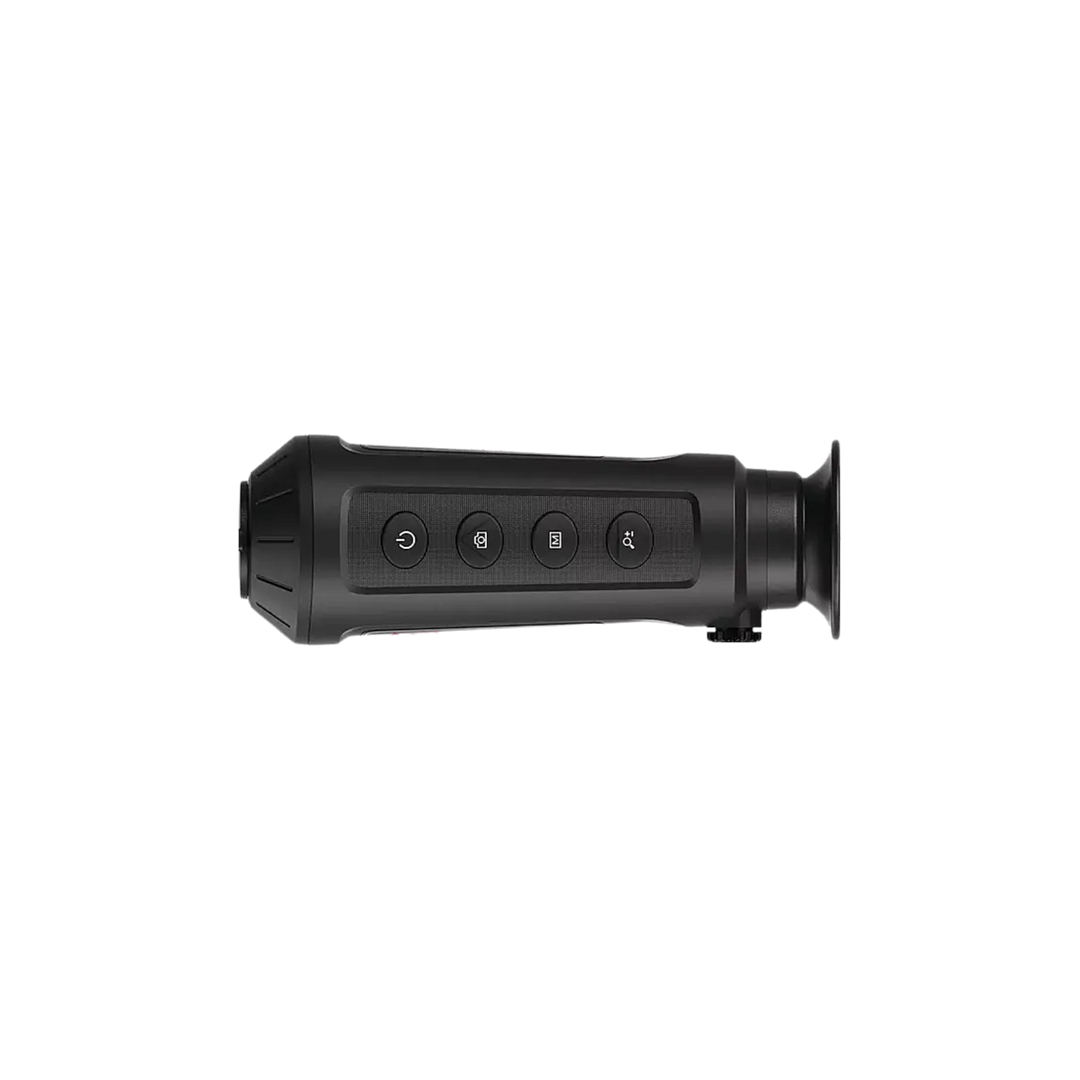

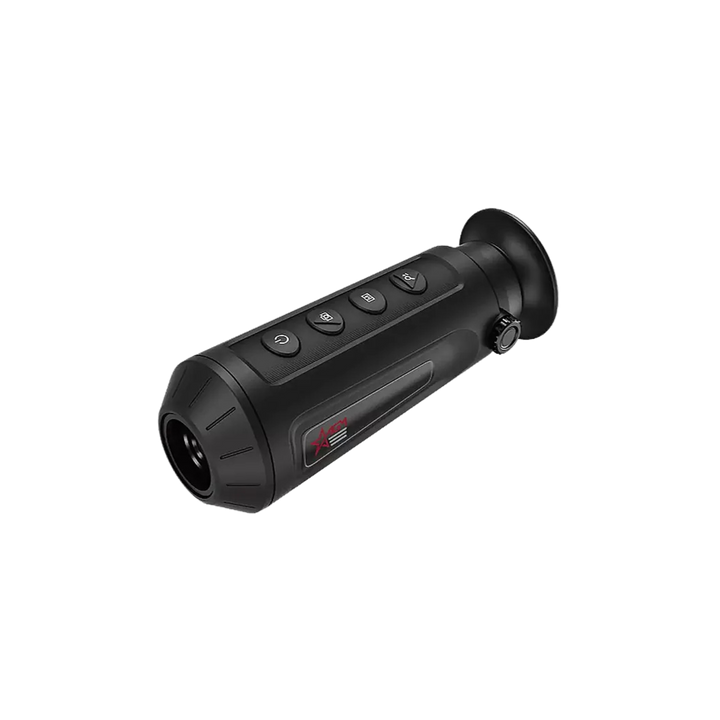

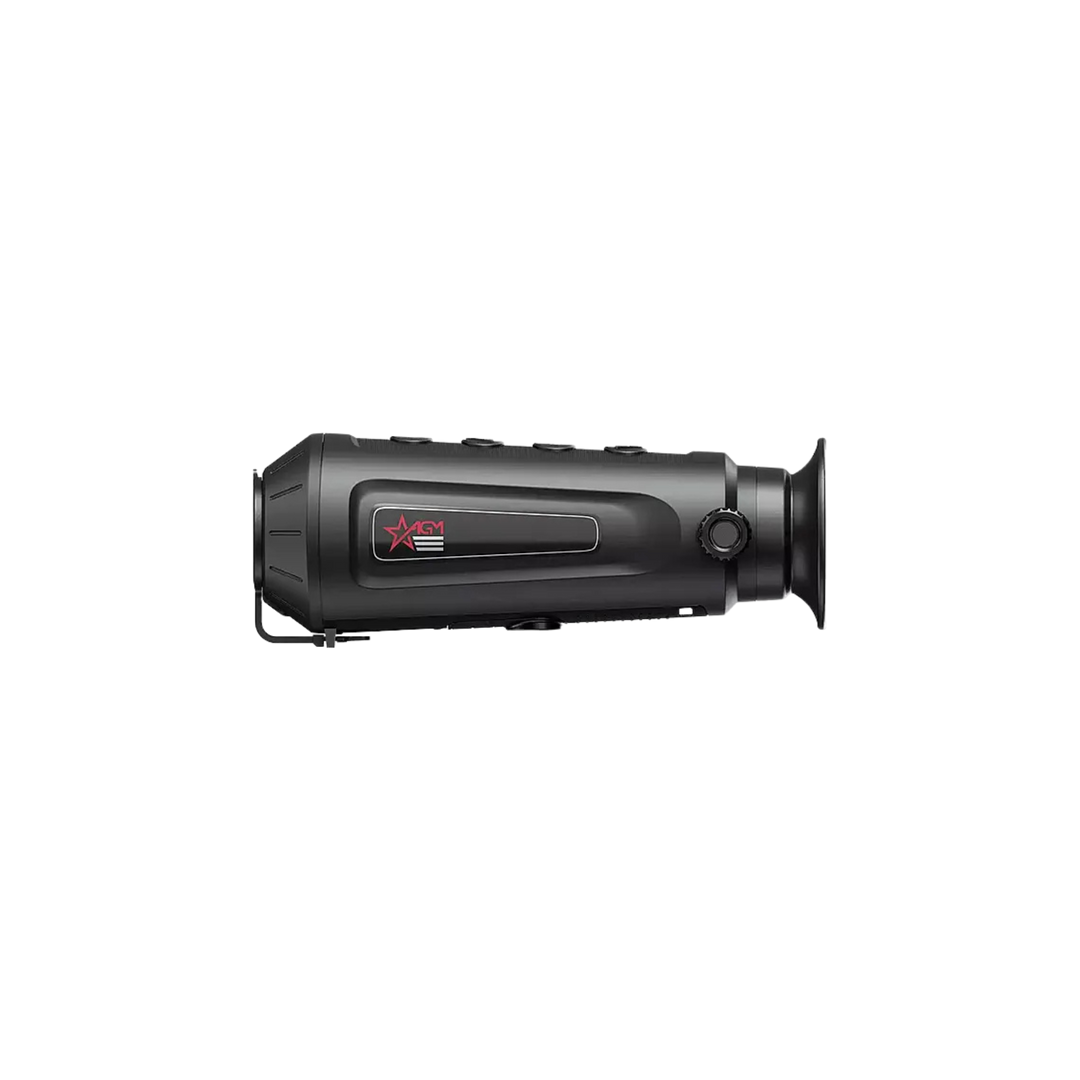

The AGM Global Vision Taipan TM15-256 Thermal Imaging Monocular is a top-tier thermal monocular designed for high-performance imaging in any lighting condition. With a 256x192 thermal sensor resolution, this compact monocular offers detailed image detection, making it ideal for outdoor enthusiasts, hunters, and tactical professionals. It features multiple color palettes, allowing you to adjust the display for different environmental conditions. Equipped with a built-in video recording function, you can capture critical images and footage directly through the device. The robust battery life ensures you’ll have reliable operation throughout your excursions, making it a versatile tool for various applications.
FUNCTIONS:
Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
Mode Switch: Device supports pallet switch and distance measurement.
Storage: Built-in memory module supports video recording/snapshot capturing.

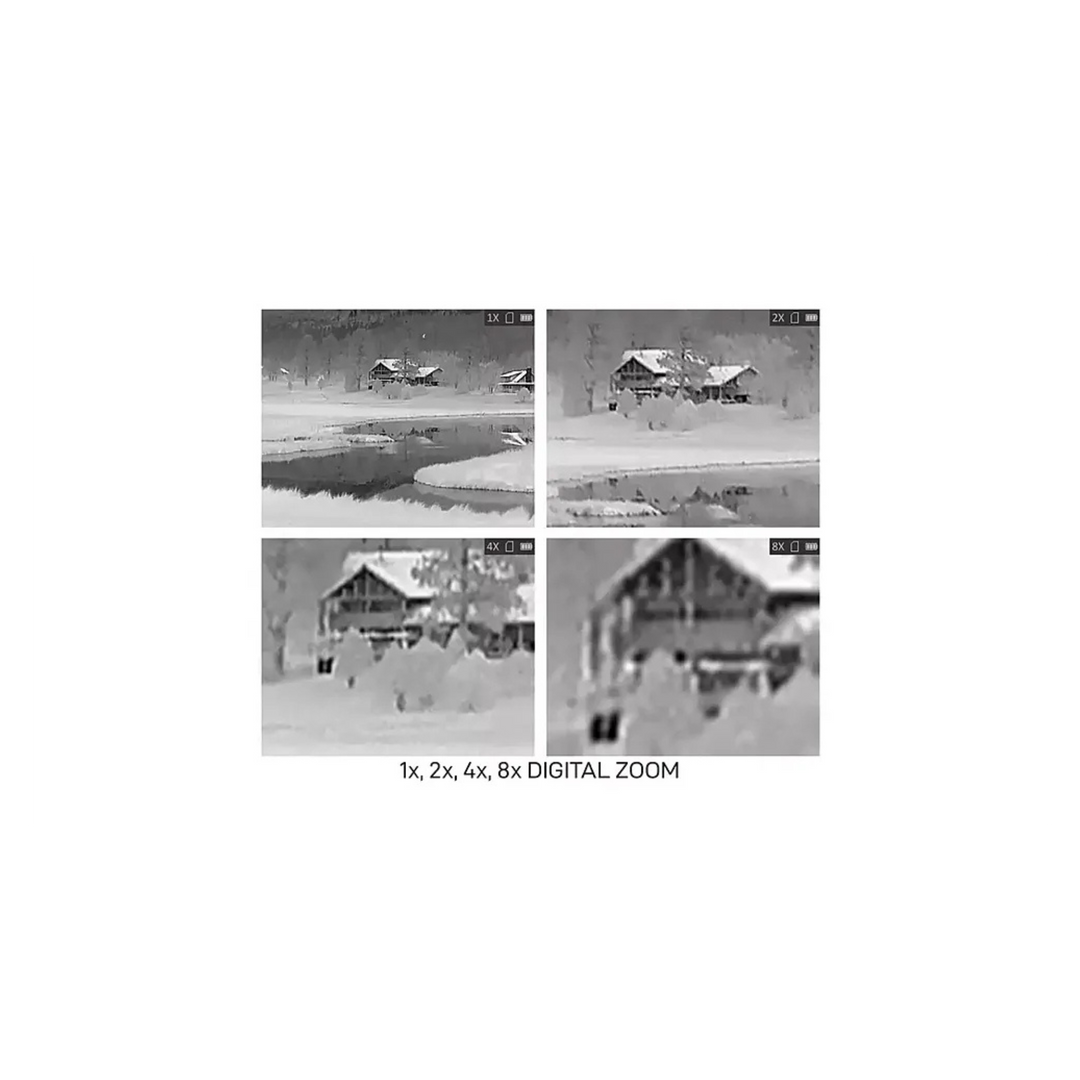

Digital Zoom: Device supports 1×, 2×, 4×, and 8× digital zoom.
Wi-Fi Hotspot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
256×192 resolution, 12 μm, high sensitivity detector
Adaptive AGC, DDE, 3D DNR
720 × 540 LCOS display
Built-in rechargeable Lithium battery
Up to 8 hours continuous running (with Wi-Fi hotspot function off)
“Auto Power Off” and “Sleep” modes
Wi-Fi hotspot
Type-C interface
3-Year warranty
Specifications
Specification
Value
Palettes
Black Hot, White Hot, Red Hot, Fusion
Working Temperature
-20°C to 55°C (-4°F to 131°F)
Interface
USB Type-C
Pixel Interval
12 μm
Multi-Language Menu
Yes
Drop Test Height
1.5 m (4.9 feet)
Magnification
1.5x - 12x
Detector Type
Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband
8μm to 14μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh Rate
Sensor 25 Hz / OLED 50 Hz
Aperture
F1.0
Resolution
256×192
Detection Range (6' object)
710m/yd
NETD
Less than 35 mk (@25°C), F#=1.0
Lens (Focal Length)
15 mm
Power
5 VDC/2 A, 1.5 W
Field of View (H × V)
11.69° × 8.78°
Digital Zoom
1×, 2×, 4×, 8×
Diopter Adjustment Range
-3 to +1 dpt
Monitor
720×540, 0.2 inch, LCOS
Storage
Built-in memory module (8 GB)
Record Video
On-board video recording
Capture Snapshot
Yes
Battery Type
Built-in rechargeable Lithium battery
Wi-Fi
Yes
CVBS Output
Yes (via USB)
Battery Operating Time
Up to 8 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display
Yes
Weight
280 g (0.62 lb)
Overall Dimensions
158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
Protection Level
IP67
