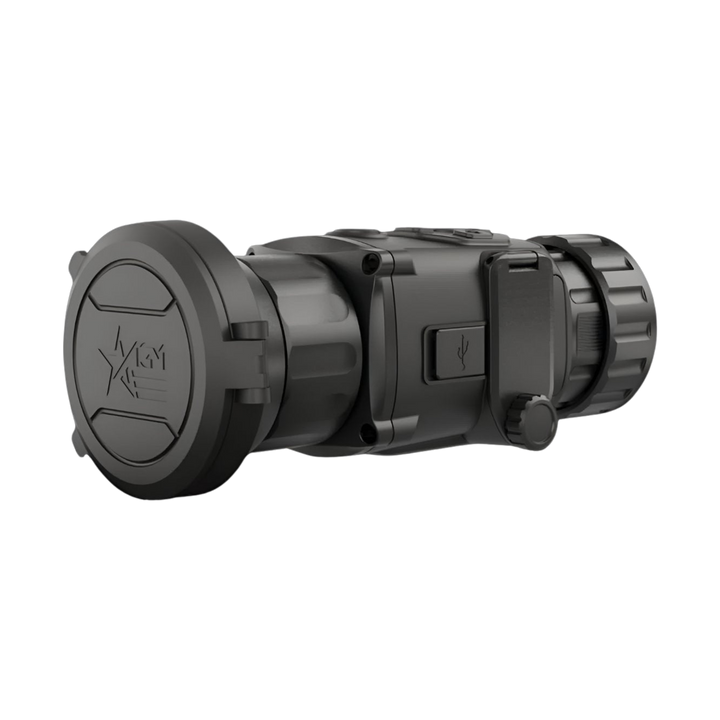

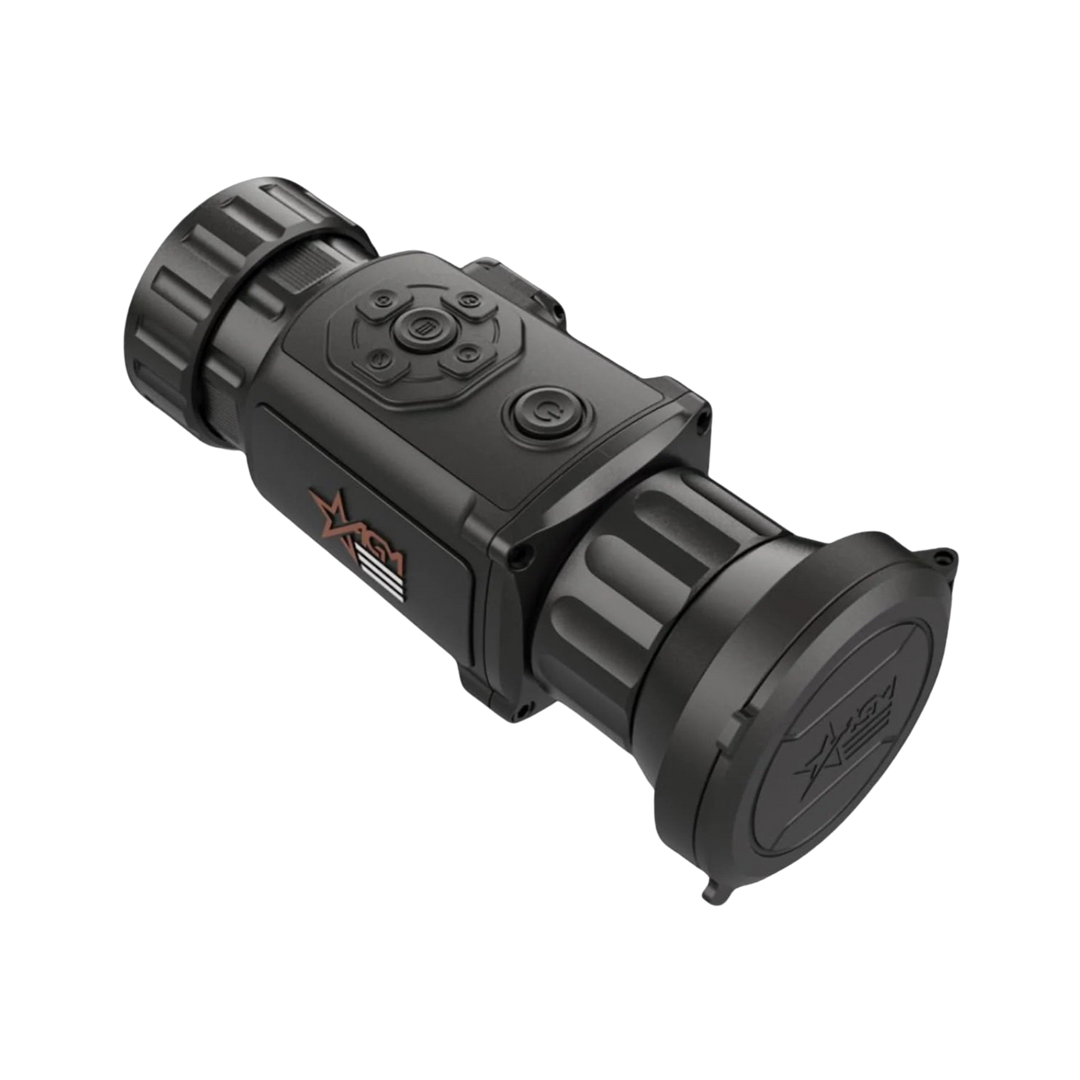

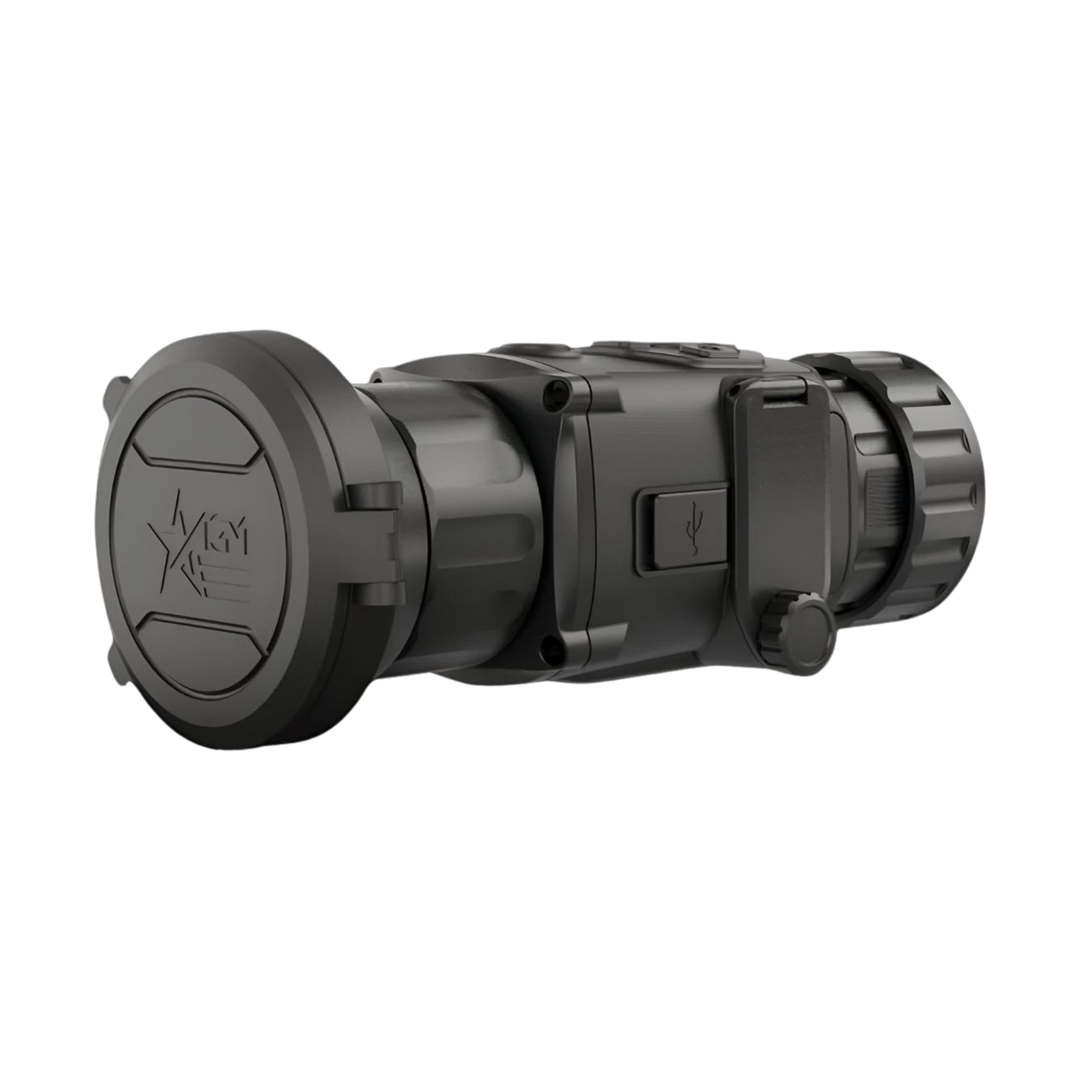

AGM Global Vision Rattler TC50-640 Thermal Imaging Clip-On -12μm Detector, 640x512 Resolution, 16GB Storage, Wi-Fi
- In stock, ready to ship
- Backordered, shipping soon
- Seamless Thermal Transformation: Easily convert your day optics into a high-performance thermal imaging device with the AGM Rattler TC50-640.
- 12μm Thermal Detector: Features a high-sensitivity 12μm thermal sensor with 640x512 resolution for crystal-clear images in challenging conditions.
- OLED Display & Long Range: Equipped with a 1024x768 OLED display and a detection range of up to 2,500 meters for medium to long-distance target identification.
- Onboard Recording & Storage: 16GB of built-in storage for video and image capture, with live video streaming via Wi-Fi through a mobile app.
- Durable & Versatile Design: Waterproof, shockproof, and powered by CR123 batteries or an external USB-C power supply for up to 4.5 hours of continuous operation.
The AGM Global Vision Rattler TC50-640 Thermal Imaging Clip-On System transforms your standard day optics into a high-performance thermal imaging device. Ideal for hunting, patrolling, and tactical situations, the Rattler TC50-640 features a 12μm high-sensitivity thermal detector with 640x512 resolution, delivering crystal-clear images even in the most challenging conditions such as darkness, fog, smoke, dust, and snow. Its 1024x768 OLED display ensures sharp, detailed visuals, and with a detection range of up to 2,500 meters, you'll be able to confidently identify targets at medium to long distances.
This thermal clip-on system supports up to 4.5 hours of continuous use with CR123 batteries, or you can extend the operational time via an external USB-C power supply. Capture every moment with the 16GB built-in storage for video recording and image capture, and enjoy live streaming through its onboard Wi-Fi module. Designed for durability, the Rattler TC50-640 is waterproof and shockproof, meeting IP67 standards. With adjustable color palettes, scene modes, and a stadiametric rangefinder, this device enhances your tactical experience, providing precision and reliability in any situation.
Specifications
Palettes |
Black Hot, White Hot, Red Hot, Fusion
|
Shock and Vibration | 750 g/ms |
Exit Pupil Diameter | 22 mm |
Distance Measurement |
Yes (Stadiometric Rangefinder)
|
Scene Mode |
Jungle, Recognition
|
Hotspot | Yes |
Detector Type |
12 μm VOx Uncooled Focal Plane Arrays
|
Response Waveband |
8 μm to 14 μm
|
FFC (Flat Field Correction) |
Auto, Manual, External Correction
|
Highest Temperature Spot Tracking | Yes |
Standby Mode | Yes |
Refresh Rate |
Sensor 50 Hz / OLED 50 Hz
|
Resolution | 640 x 512 |
Detection Range (6' object) | 2,500 m/yd |
Lens System | 50 mm, F1.0 |
Power |
5 VDC/2 A, USB Type-C interface, Supports external power supply
|
Mounting |
Optional Front Quick Release Adapters for different front lens diameter or Quick
|
Field of View (H × V) | 8.8° x 7.0° |
Monitor |
1024x768, 0.39 inch, OLED
|
Storage |
Built-in 16 GB EMMC
|
Record Video |
On-board video recording
|
Capture Snapshot | Yes |
Battery Type |
Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
|
CVBS Output |
Yes (via USB)
|
Battery Operating Time |
Up to 4.5 hours continuous running (@25°C, WiFi off) / Up to 4.0 hours continuous running (@25°C, WiFi on)
|
Battery Capacity Display | Yes |
Operating Temperature Range |
-20°C to 55°C (-4°F to 131°F)
|
Weight |
0.49 kg (1.08 lb)
|
Overall Dimensions |
153 mm × 78 mm × 66 mm (6.0 × 3.1 × 2.6 in)
|
Protection Level | IP67 |
Magnification | 1x |
