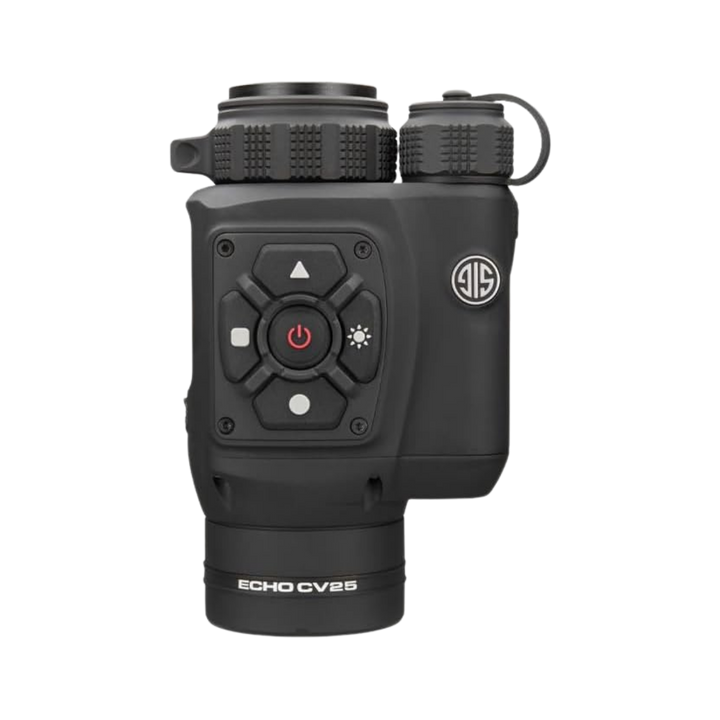

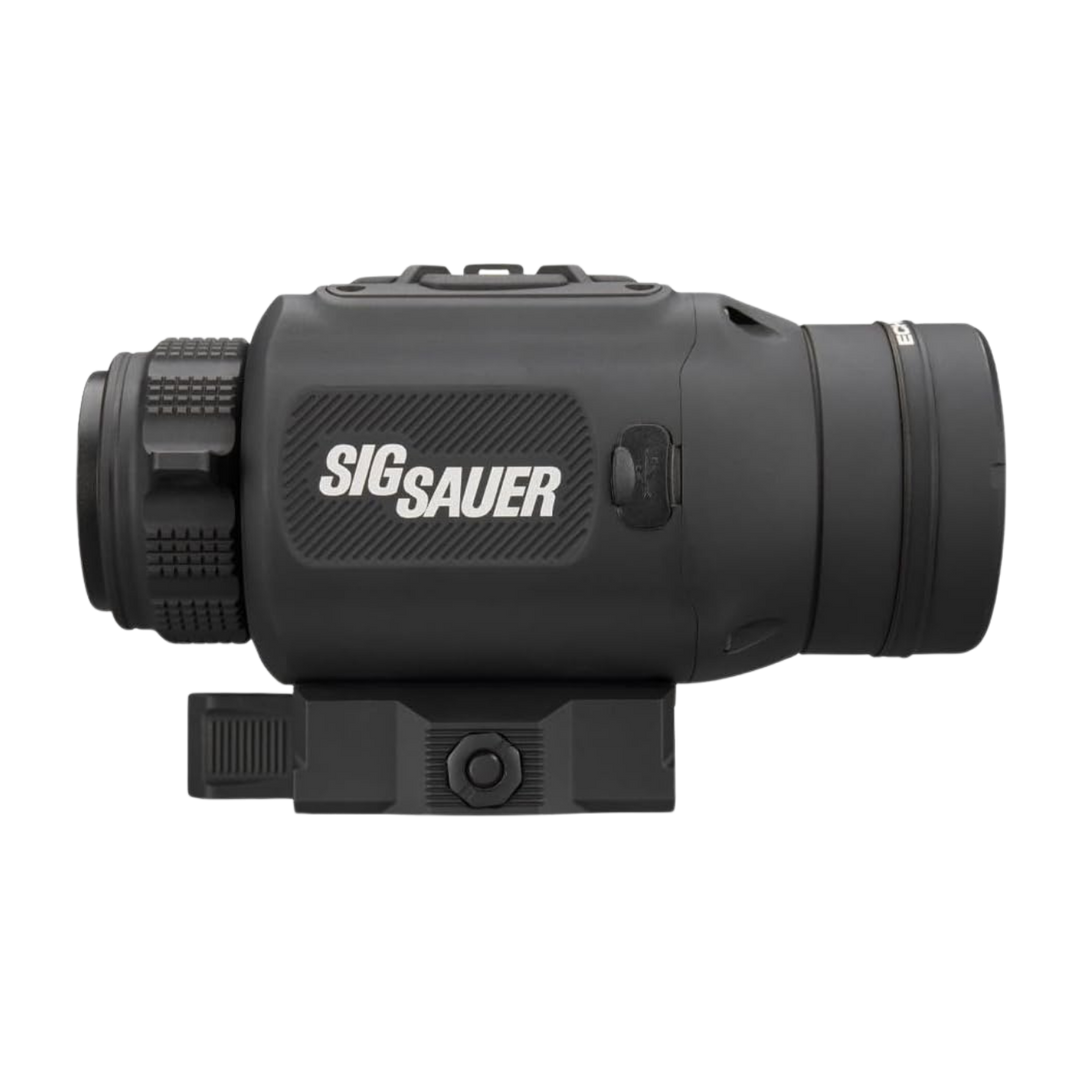

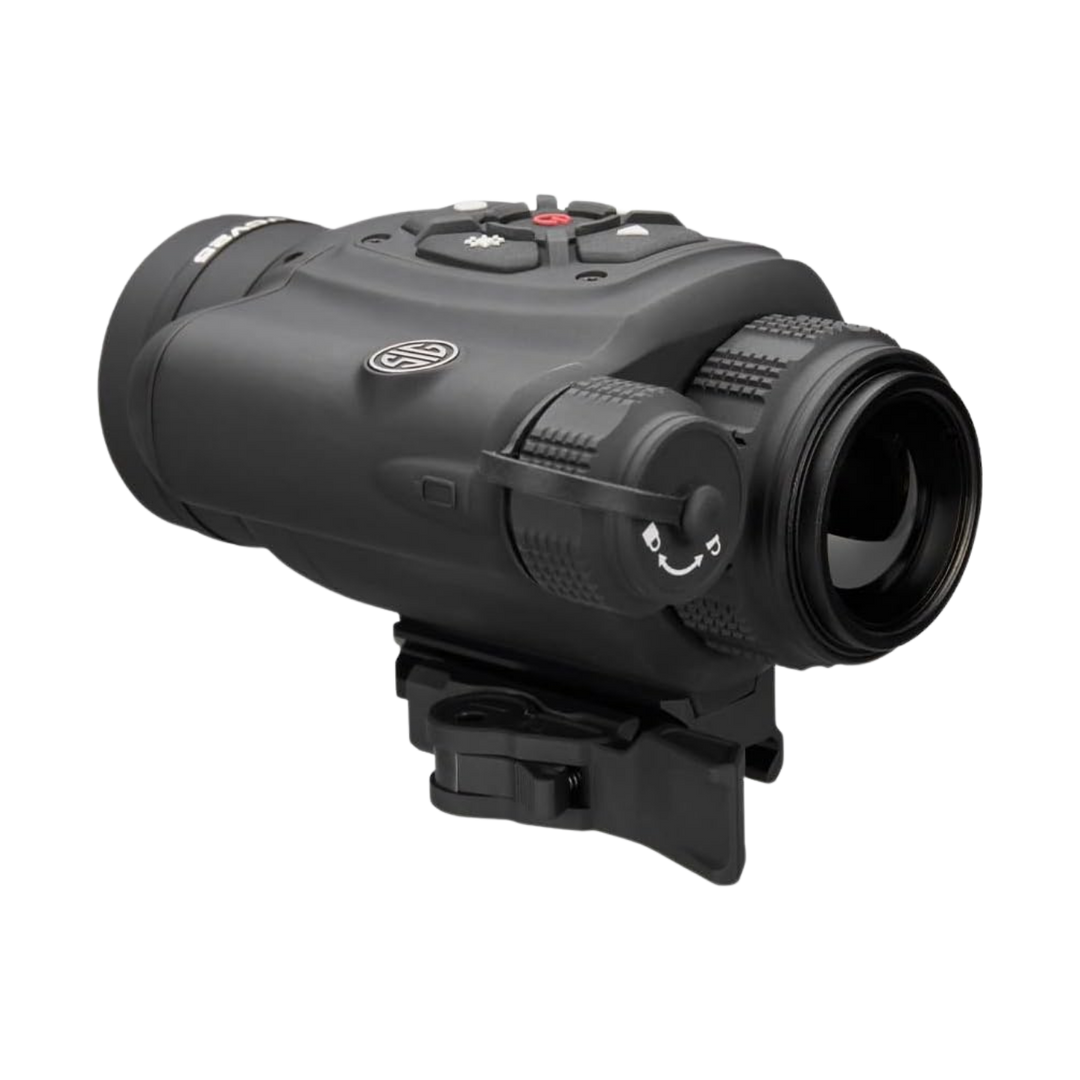

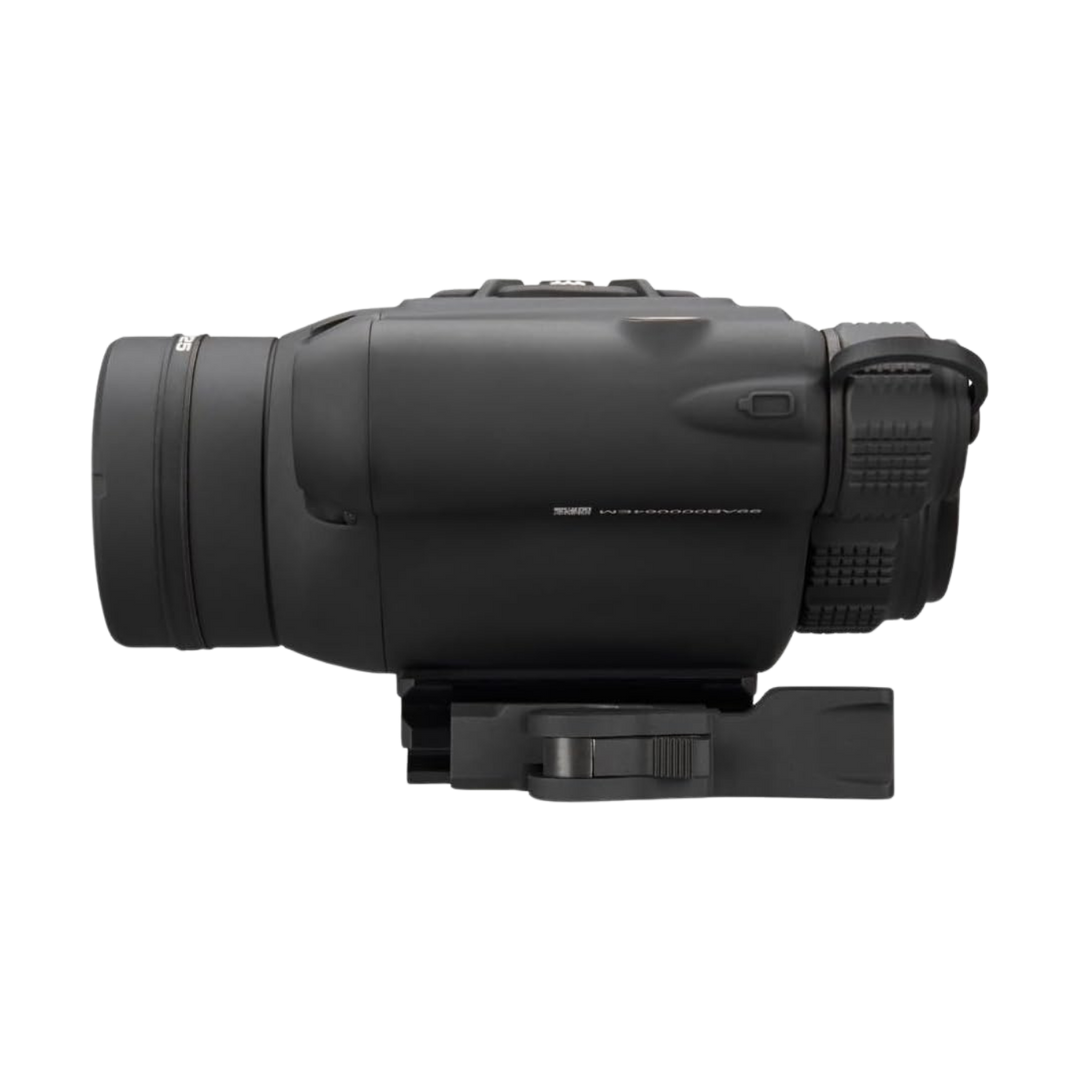

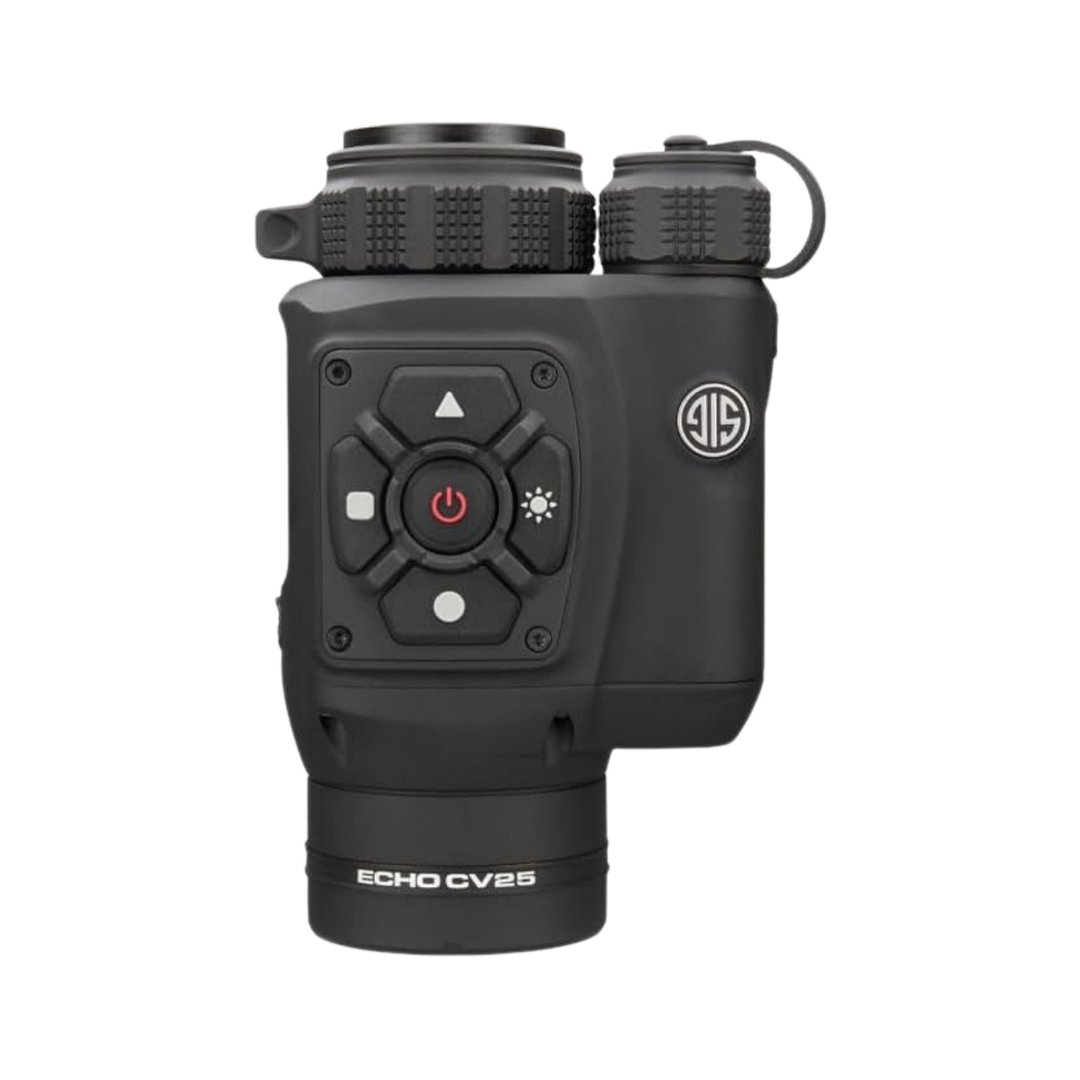

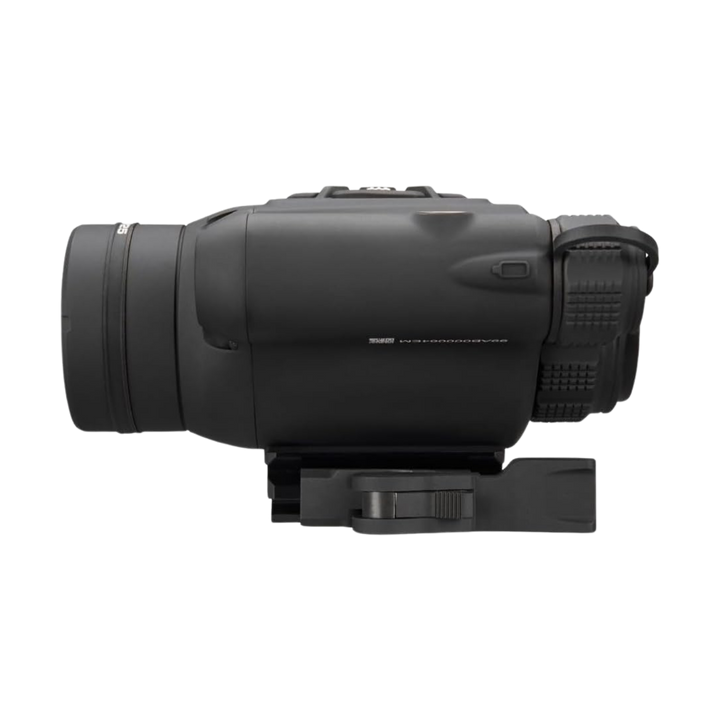

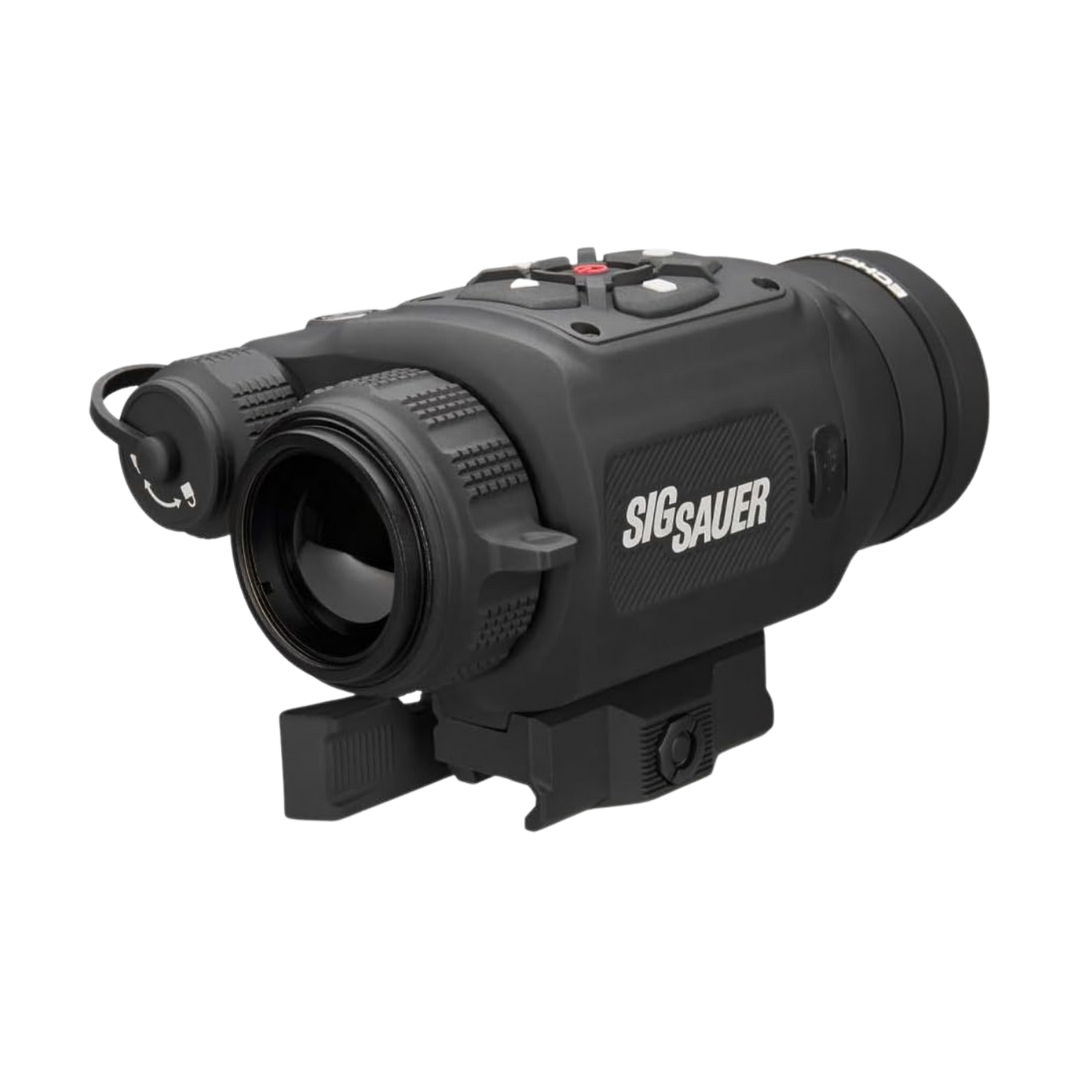

Sig Sauer Echo CV25 1-8x25mm Compact 5" Thermal Clip-On Device

Key Features

• Clip-On or Standalone Thermal: Attaches to your existing day optic — no need to remove or re-zero — or use it as a standalone thermal sight
• Compact 5" QD Design: Just under 5 inches with a Quick-Disconnect M1913 Picatinny mount at the industry-standard 1.535" height for easy swapping between firearms
• High-Res LWIR Core: 640×512 VGA 12µm thermal core, 50Hz refresh, ≤20mK sensitivity for smooth, detailed imaging in total darkness
• Parallax-Free Eyepiece: Keeps point of aim consistent and accurate in a clip-on application
• 1024×768 AMOLED Microdisplay: Razor-sharp clarity with 8 selectable color palettes
• BDX 2.0 Connectivity: Configure via the BDX app with live video streaming; record photos/video with audio to 32GB internal storage
• Rugged & IP67 Waterproof: Built for harsh conditions, lightweight on the weapon
• Backed by SIG SAUER’s INFINITE Guarantee

Description

The SIG SAUER ECHO CV25 is a compact, ultra-rugged thermal clip-on that transforms your existing day optic into a thermal imaging system — without removing or re-zeroing your scope — and can also run as a standalone thermal sight. At under 5 inches with a Quick-Disconnect Picatinny mount set to the industry-standard 1.535" height, it swaps easily between firearms. Its LWIR 640×512 12µm thermal core (50Hz, ≤20mK sensitivity) paired with a 25mm germanium objective and a 1024×768 AMOLED microdisplay delivers crisp, detailed imaging through darkness, smoke, fog, and brush. BDX 2.0 connectivity adds app configuration and live streaming, while 32GB internal storage records stills and video with audio. Powered by a removable 18650 lithium-ion battery with 9+ hour runtime (a spare is included), and rated IP67 waterproof. Designed to pair best with magnified optics in the 2–3× base magnification range.

Specs

In the Box

• SIG SAUER ECHO CV25 thermal clip-on
• (2) 18650 lithium-ion batteries
• QD-lever Picatinny mount
• Documentation
