Key Features

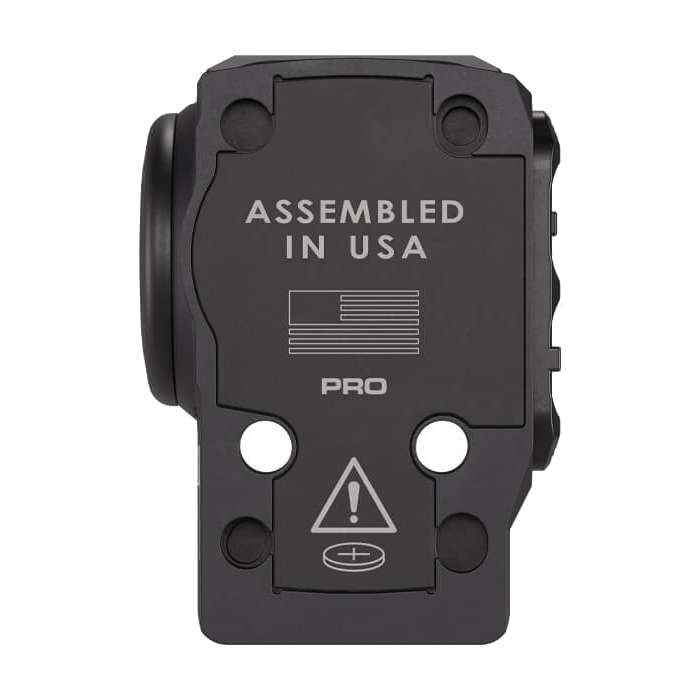

- PRO mounting footprint, which Sig identifies as the DeltaPoint Pro pattern, top mounted with screws for DeltaPoint Pro footprint and SIG PRO cut slides
- 3.5 MOA red dot drawn by a 225-pixel (15x15) LED matrix, a solid-state design with no moving adjustment parts

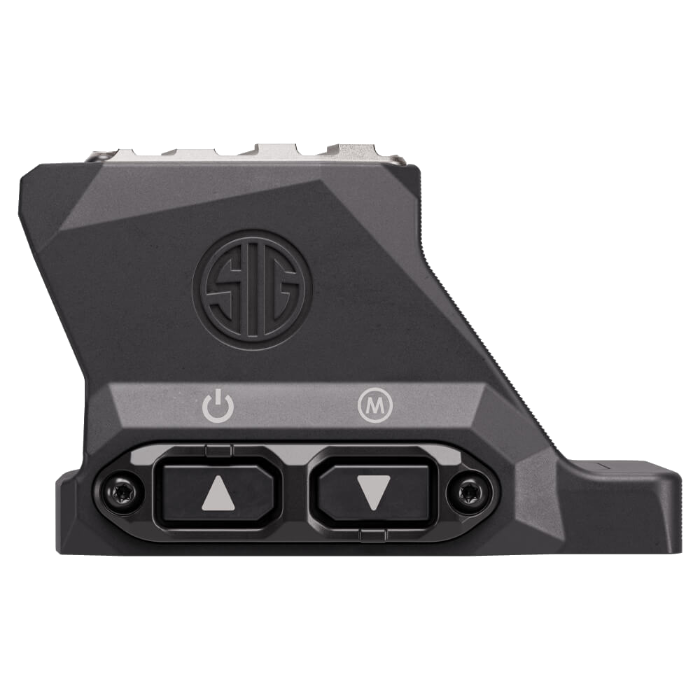

- Digital Zero: windage and elevation (80 MOA total each) are set by button presses or the XRAY5 App, which can store and recall multiple zero profiles
- Fully enclosed, sealed and argon-purged optical system rated IPX-8 waterproof to 40 meters (132 ft)

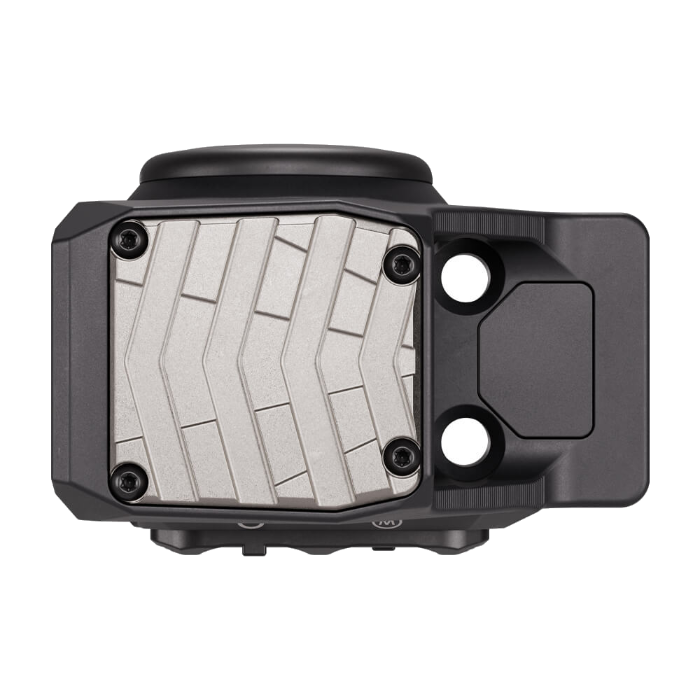

- 7075 aluminum housing with a Grade 5 titanium top cover shielding the lens
- 15 illumination settings (13 daylight, 2 night vision) with MOTAC motion-activated illumination and LightFight adaptive reticle brightness
- Side-loading CR2032 battery with up to 10,000 hours of run time, plus a built-in round counter with reset
- Full-size housing: 1.9 in long, 1.32 in wide, 1.17 in tall, 1.4 oz with battery
Description

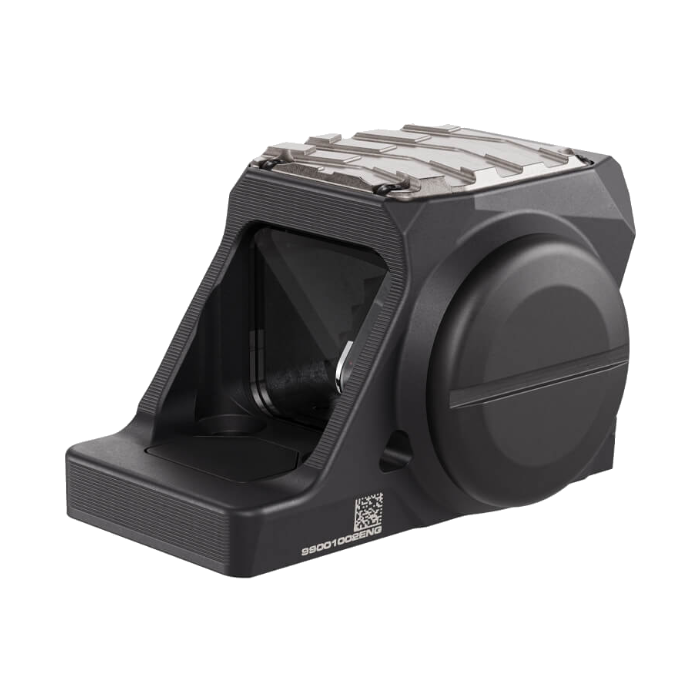

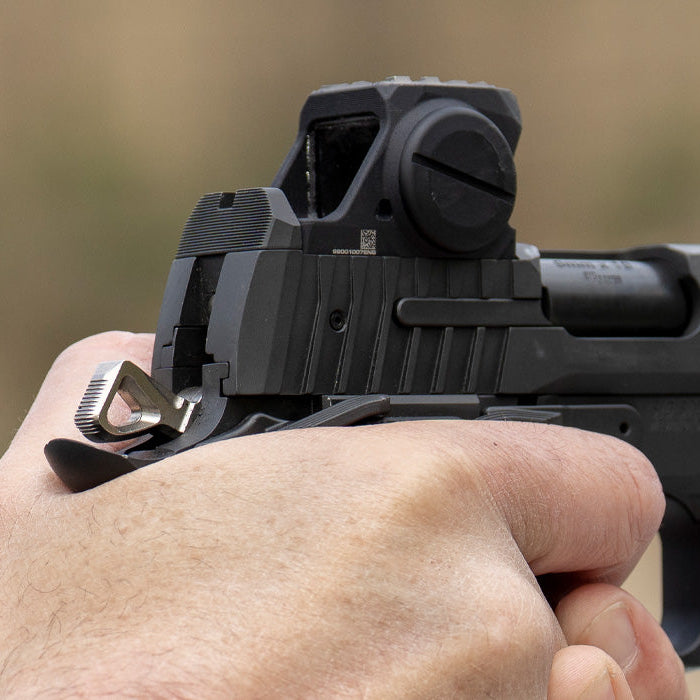

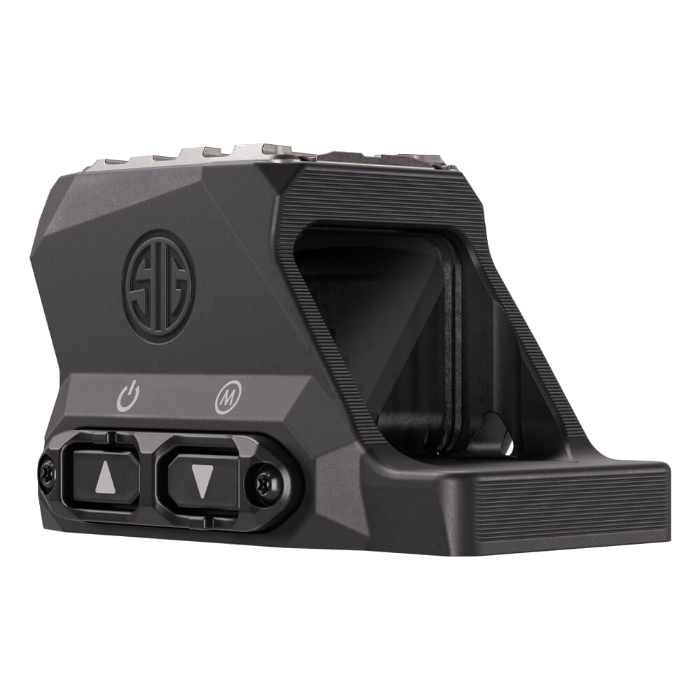

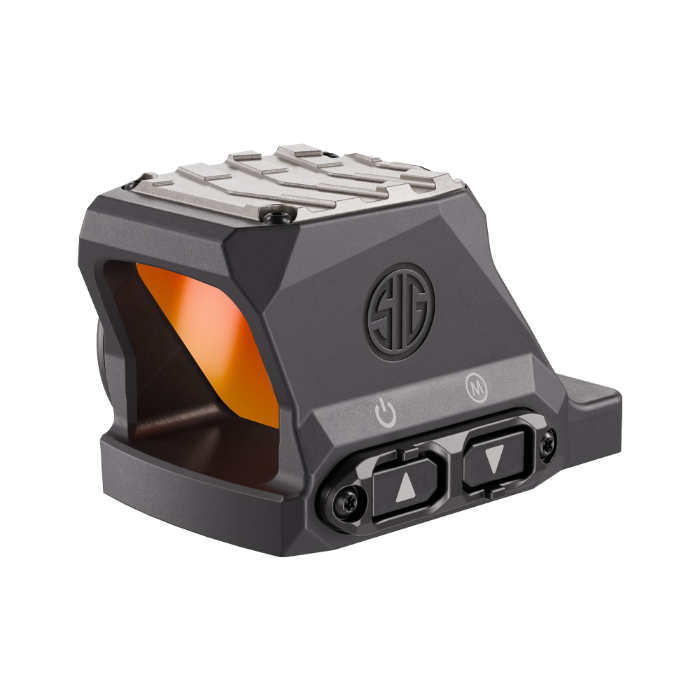

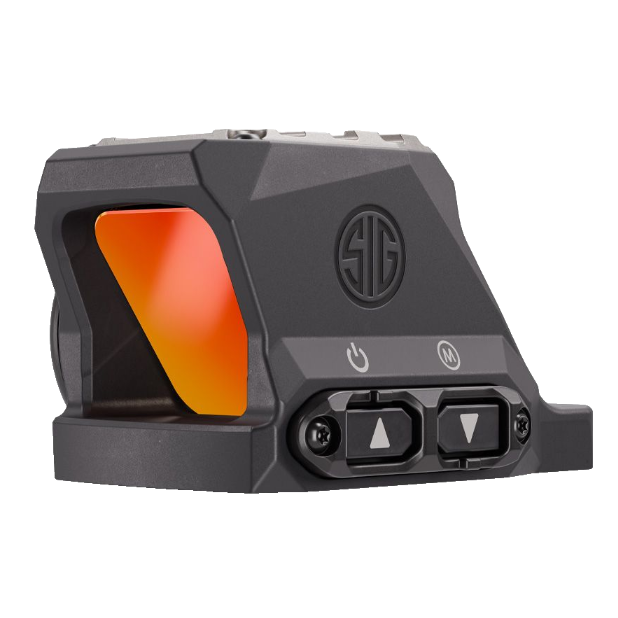

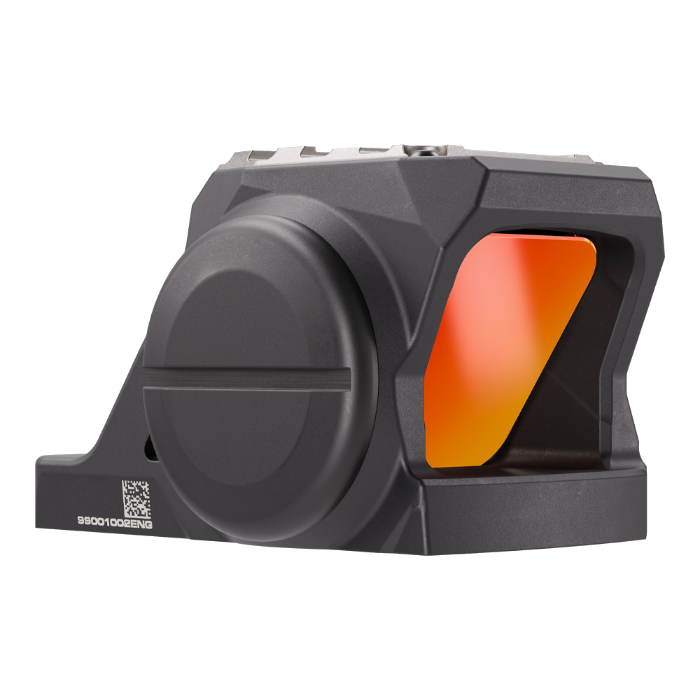

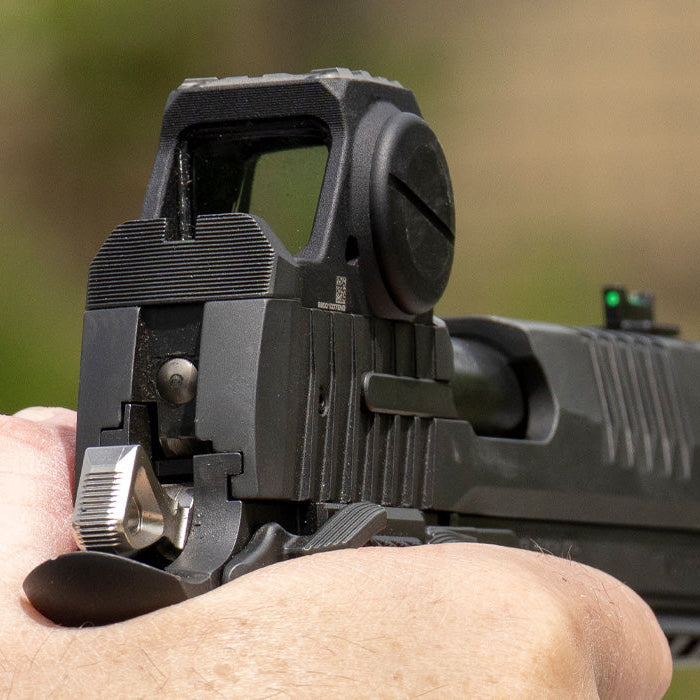

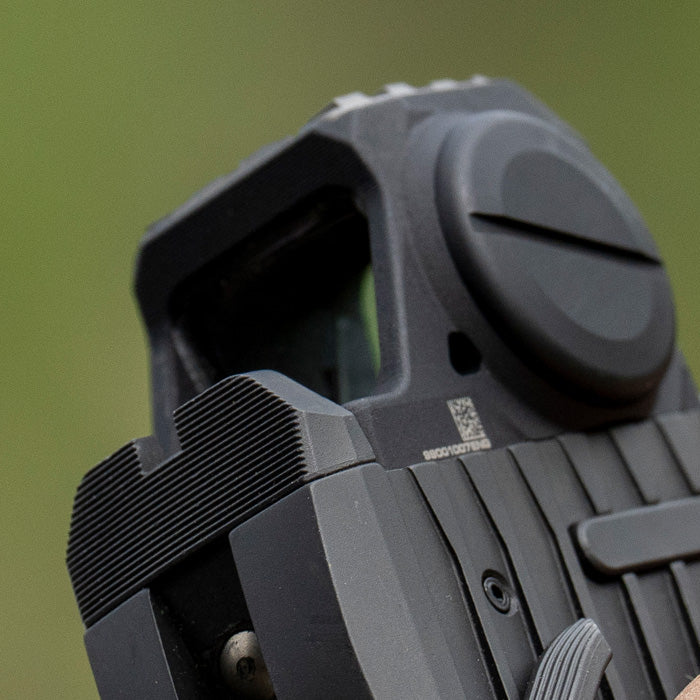

The Sig Sauer XRAY5 Enclosed PRO is a closed-emitter pistol red dot built on the PRO mounting footprint, which Sig identifies as the DeltaPoint Pro pattern. It mounts from the top with screws and is the larger of the two standard-footprint XRAY5 housings at 1.9 inches long and 1.4 ounces with battery. Sig's manual lists mounting screws for DeltaPoint Pro footprint slides and SIG PRO cut slides. Confirm your slide cut before ordering.
Instead of mechanical windage and elevation screws, the XRAY5 projects its 3.5 MOA red dot from a 225-pixel LED matrix and moves the aiming point digitally. Zeroing is done with the buttons or through the XRAY5 App, which can save and recall more than one zero profile. The sight also offers 15 brightness levels including two for night vision, MOTAC motion activation, LightFight adaptive brightness and a resettable round counter.

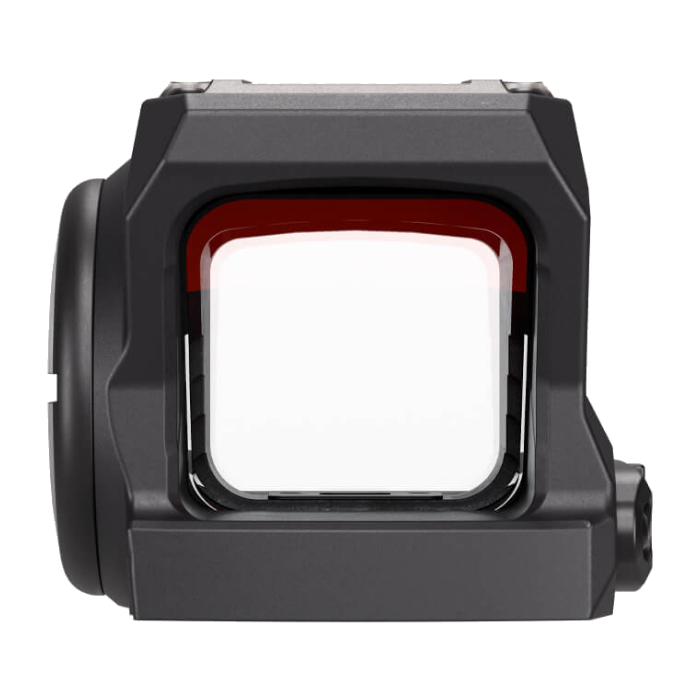

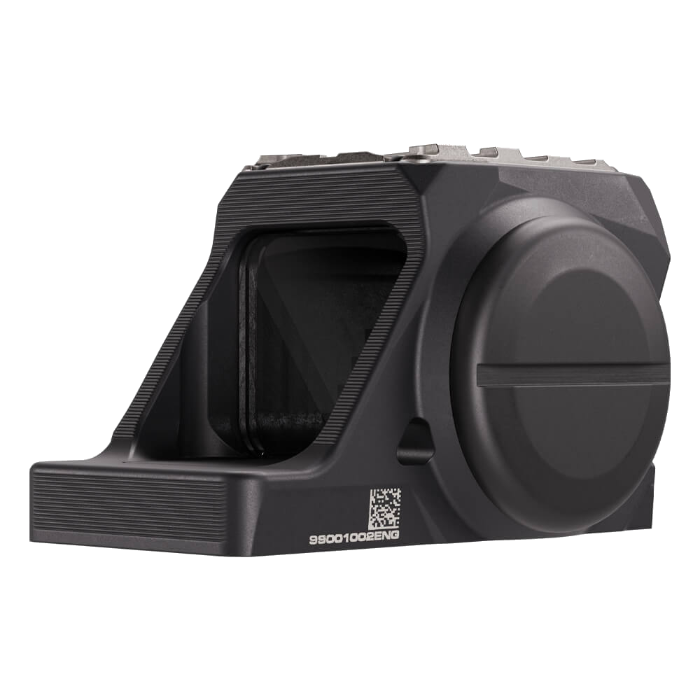

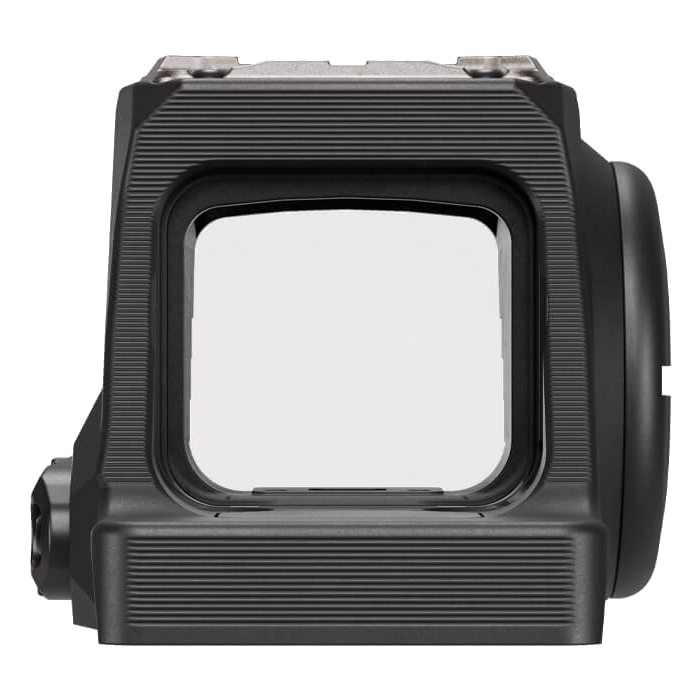

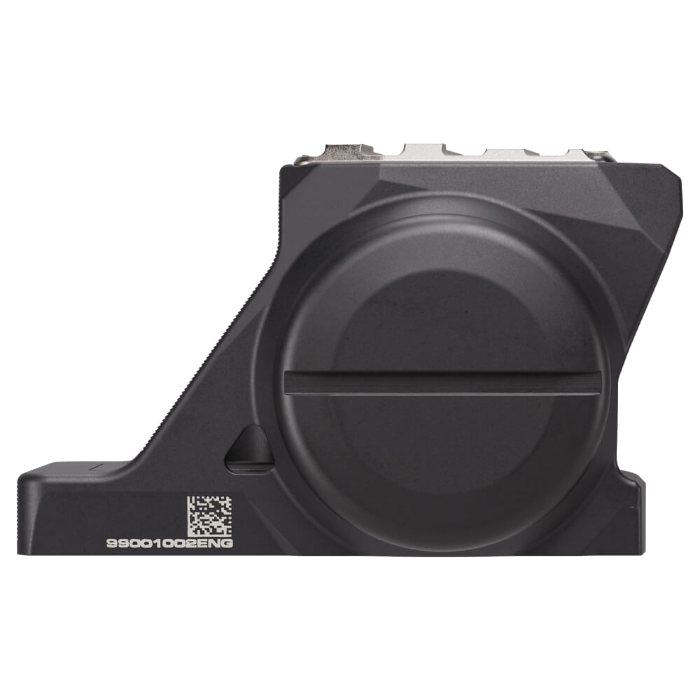

The optical system is fully enclosed, sealed and argon purged, with an IPX-8 rating to 40 meters. A 7075 aluminum body and Grade 5 titanium top cover protect the 24 mm aspheric lens. Power comes from one side-loading CR2032 battery, so the sight stays mounted during battery changes, and run time is listed at up to 10,000 hours. Sig Sauer designs, tests and assembles the XRAY5 in the USA and covers it with its Infinite Guarantee.
Specs
| Manufacturer |
SIG SAUER |
| Model |
XRAY5 Enclosed PRO |
| Manufacturer Part Number |
SOX53300 |
| RX Footprint |
PRO (DeltaPoint Pro) |
| Mount Type |
Top Mount |
| Reticle |
Red 3.5 MOA Dot |
| Emitter Type |
225 (15x15) LED matrix |
| Lens Type |
Asphere |
| Clear Aperture Diameter (Measured Diagonally) |
24 mm |
| Illumination Settings |
15 (13 Day / 2 NV) |
| Adjustment Method |
Digital (button presses / XRAY5 App) |
| Total Elevation Travel |
80 MOA |
| Total Windage Travel |
80 MOA |
| Battery |
(1) CR2032 |
| Battery Access |
Side-loading slotted threaded cap |
| Run Time |
Up to 10,000 hours (at medium setting) |
| Waterproofing |
IPX-8, up to 40 meters (132 ft) |
| Drop Rating |
3 drops from 5 feet onto concrete, mounted to 42 oz weight |
| Overall Length |
1.9 in (48.26 mm) |
| Overall Width |
1.32 in (33.53 mm) |
| Height |
1.17 in (29.72 mm) |
| Weight (with battery) |
1.4 oz (39.7 g) |
| Housing Material |
7075 aluminum with Grade 5 titanium top cover |
| Color |
Black Anodized |
| Country of Assembly |
Designed, developed, tested and assembled in the USA |
In the Box
- XRAY5 red dot sight
- CR2032 battery
- Mounting screws
- Battery cap keychain driver
- Mounting screw installation tool
- LensPen cleaning tool
- XRAY5 quick start card
