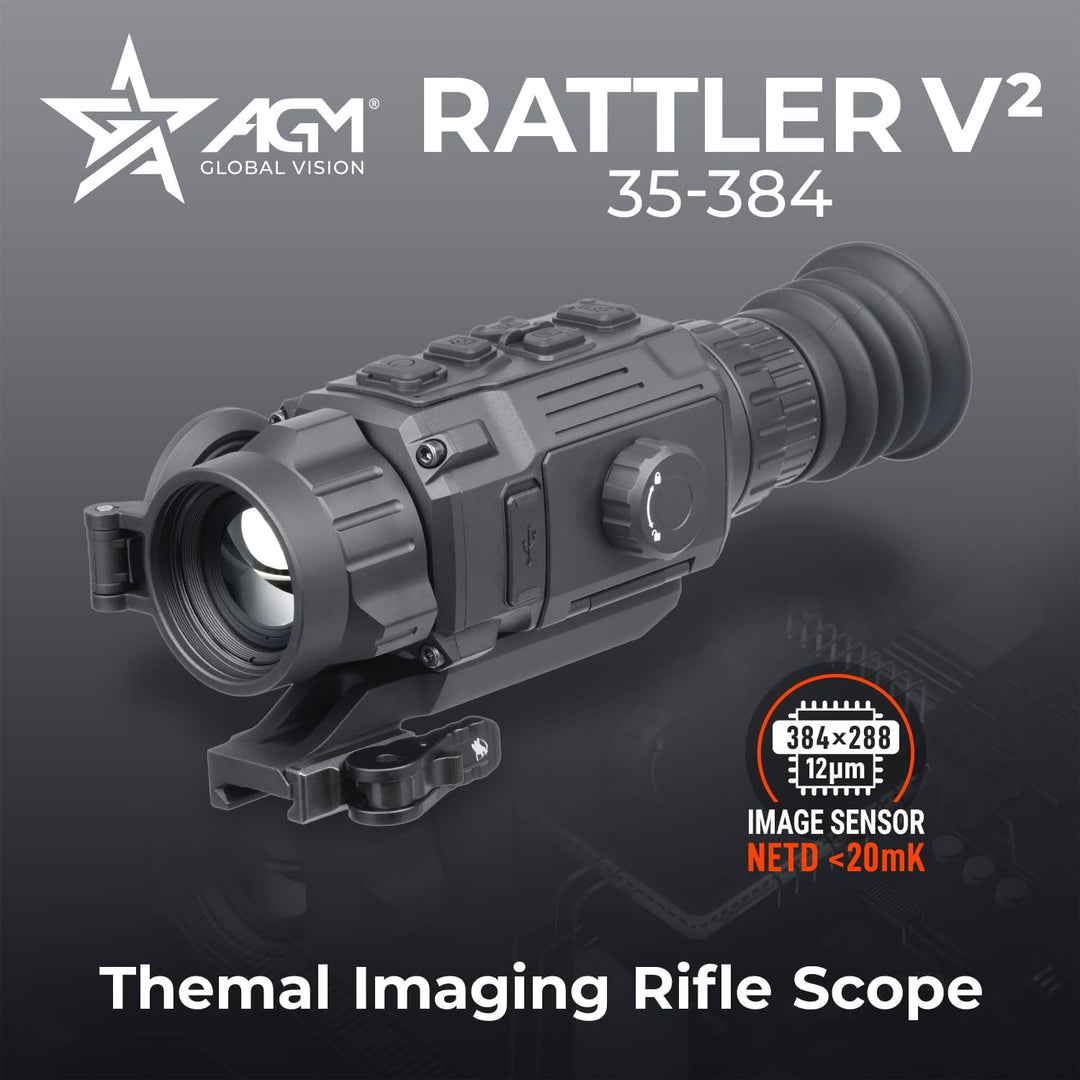

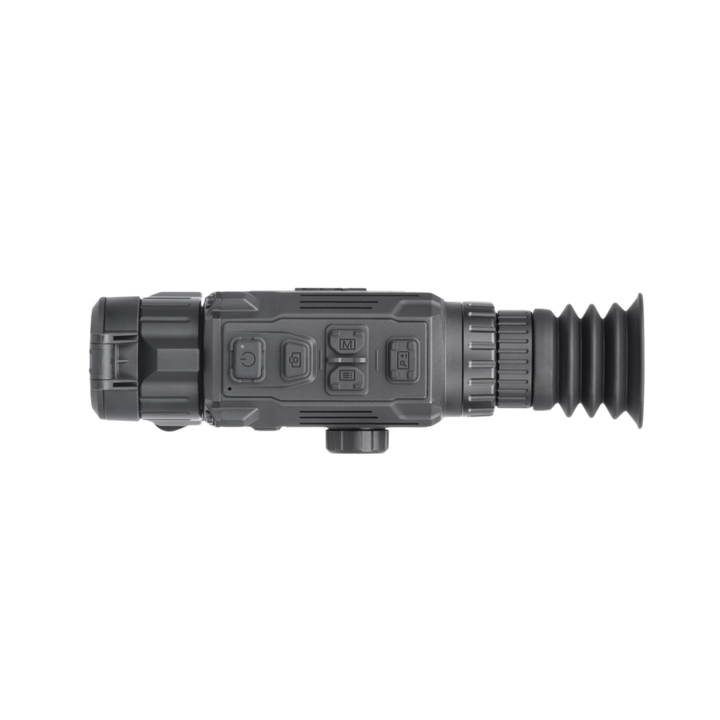

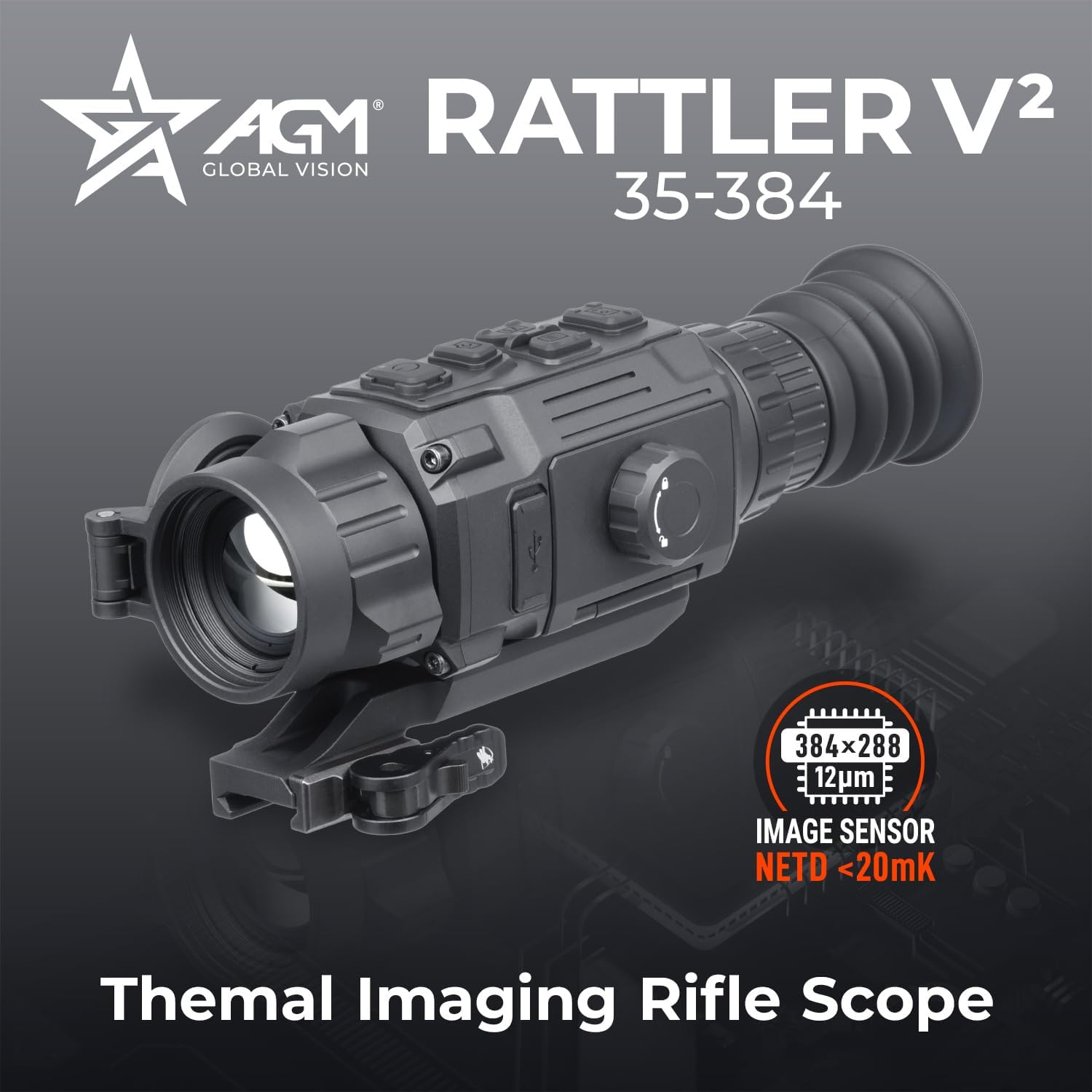

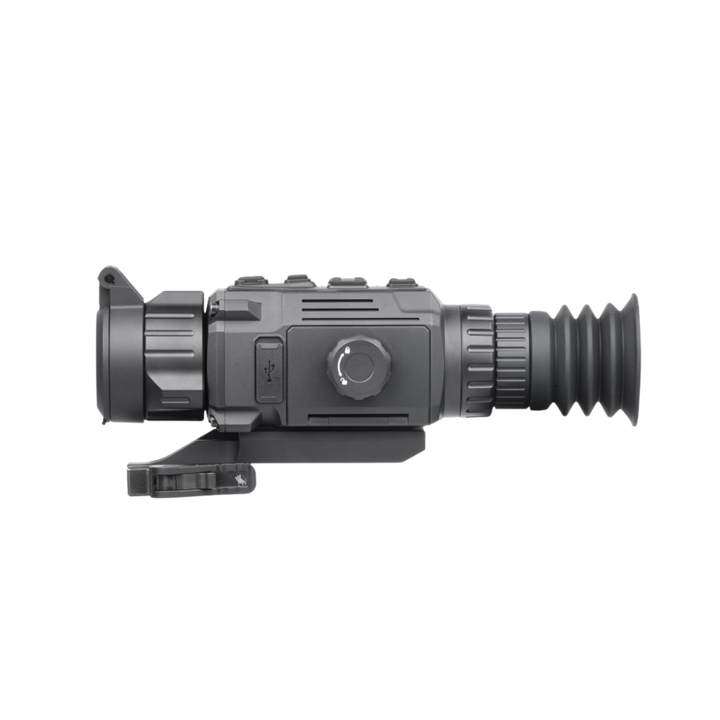

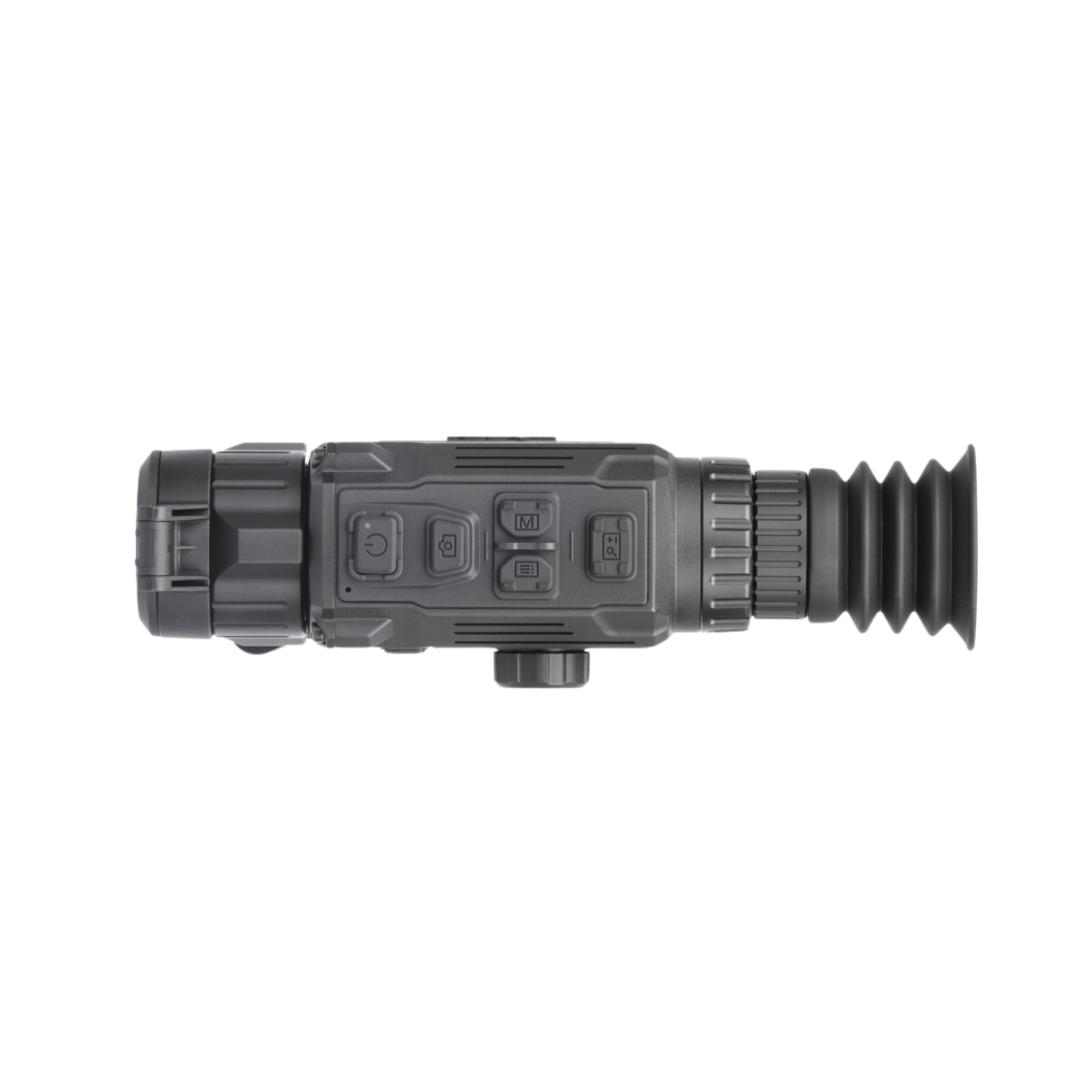

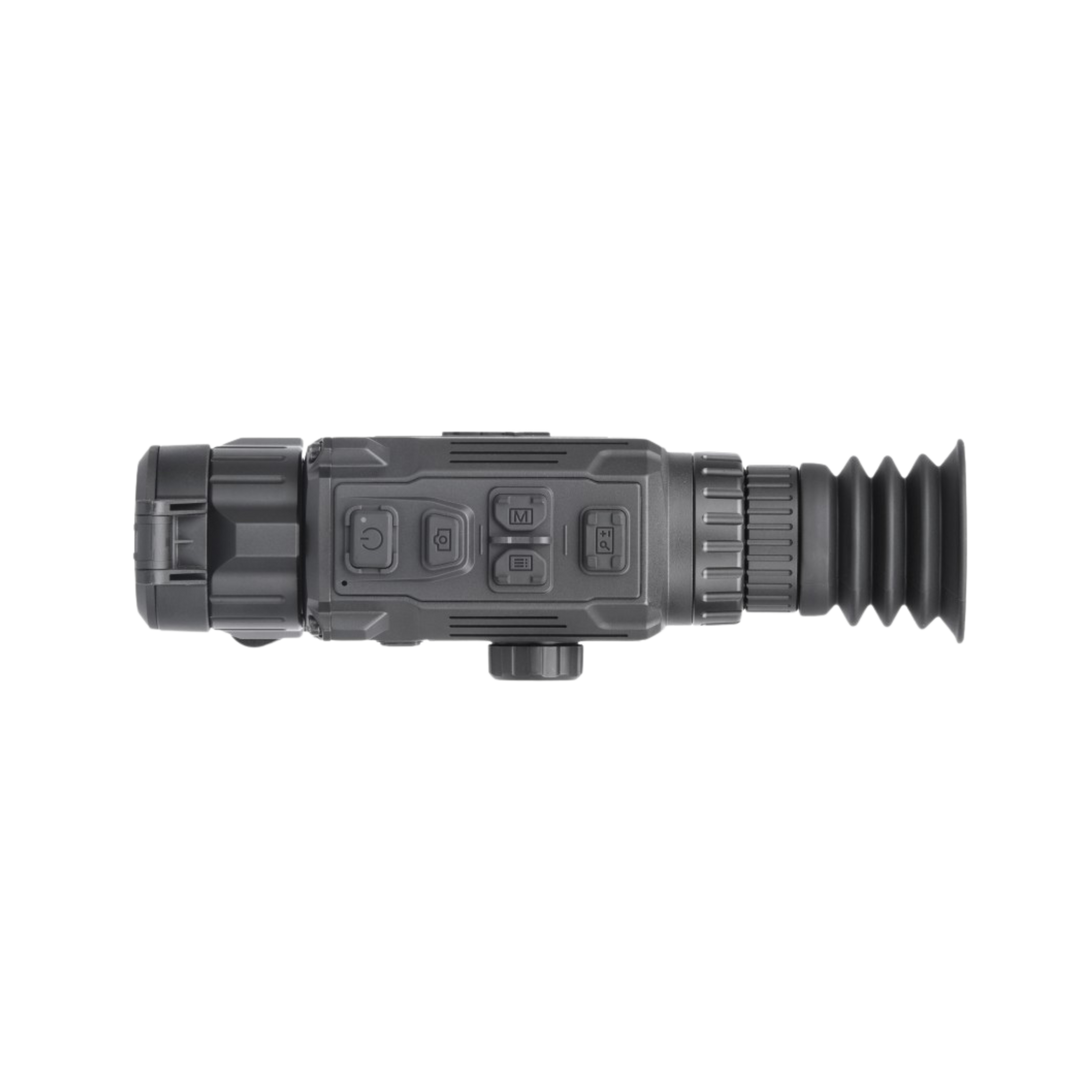

This thermal scope features a 35mm Germanium lens, a 384 x 288 resolution thermal sensor, and a 3x base magnification with a detection range of up to 1800 m/yd. Out of the two 384-resolution options, this thermal scope has a higher base magnification and a slightly narrower Field of View a (7.5° × 5.6° or 40 ft @ 100 yards) giving you a healthy mix of scanning coverage with improved identification capabilities at further distances.

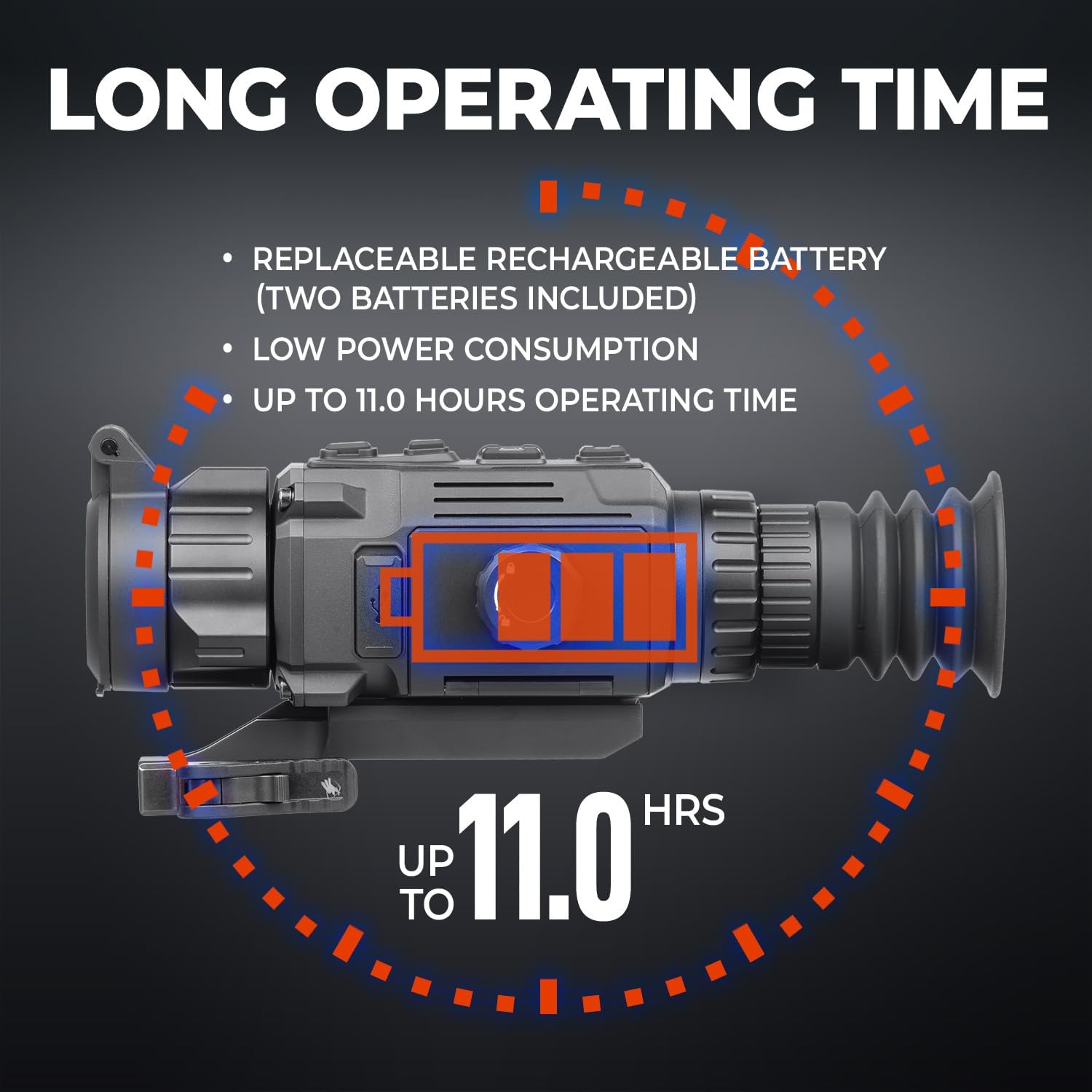

The RattlerV2 35-384 includes features familiar to AGM Rattler users, with some additional game-changing improvements such as an upgraded battery compartment that accommodates a rechargeable battery extending run time to 11 hours and a new 12-micron thermal sensor that has the highest sensitivity rating (sub-20 mk) on the market.
Notable features include Shot Activated Recording, a simplified menu layout, and 10 reticle options with multiple zeroing profiles for various calibers and rifles. The scope also comes with a custom ADM QD Mount for easy removal and reattachment, Wi-Fi hotspot connectivity through the AGM app, a user-friendly, raised 5-button layout for easy navigation, even with gloves, and much more!
Specs
| Sensor Size |
384 x 288
|
| Display |
1024 x 768
|
| Magnification |
Optical: 3x
Digital: 1 to 8x
|
| Inputs/Outputs |
1x USB-C
|
| Battery |
2x Rechargeable Lithium-Ion (Approx. 9 Hours)
|
General
| Sensor Size |
384 x 288
|
| Display |
1024 x 768
|
| Refresh Rate |
50 Hz
|
| Pixel Size |
12 µm
|
| Thermal Sensitivity |
<20 mK at f/1.0, 77°F / 25°C
|

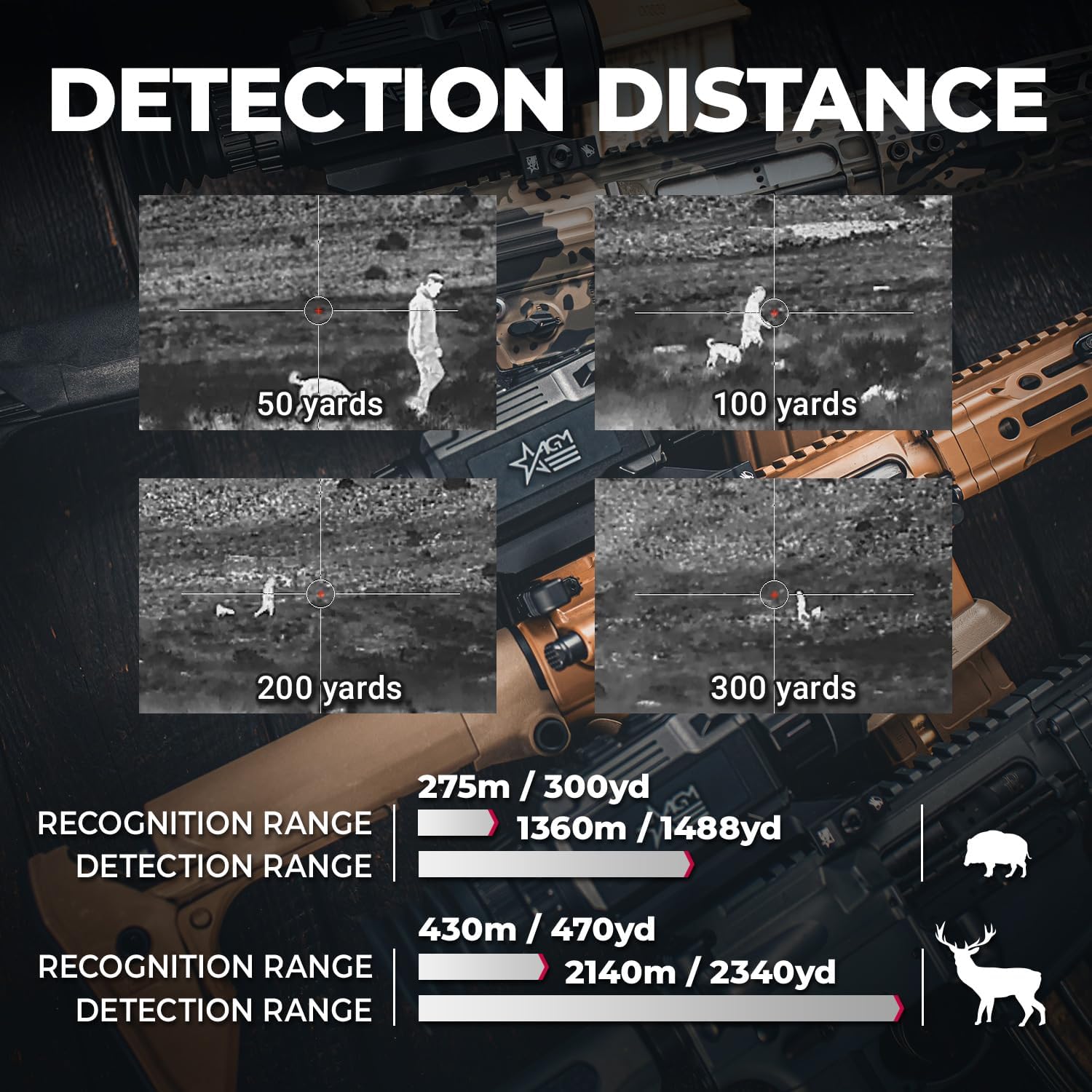

| Detection Range |
1969.2 yd / 1800 m
|
| Built-In Mic |
Yes
|
Performance

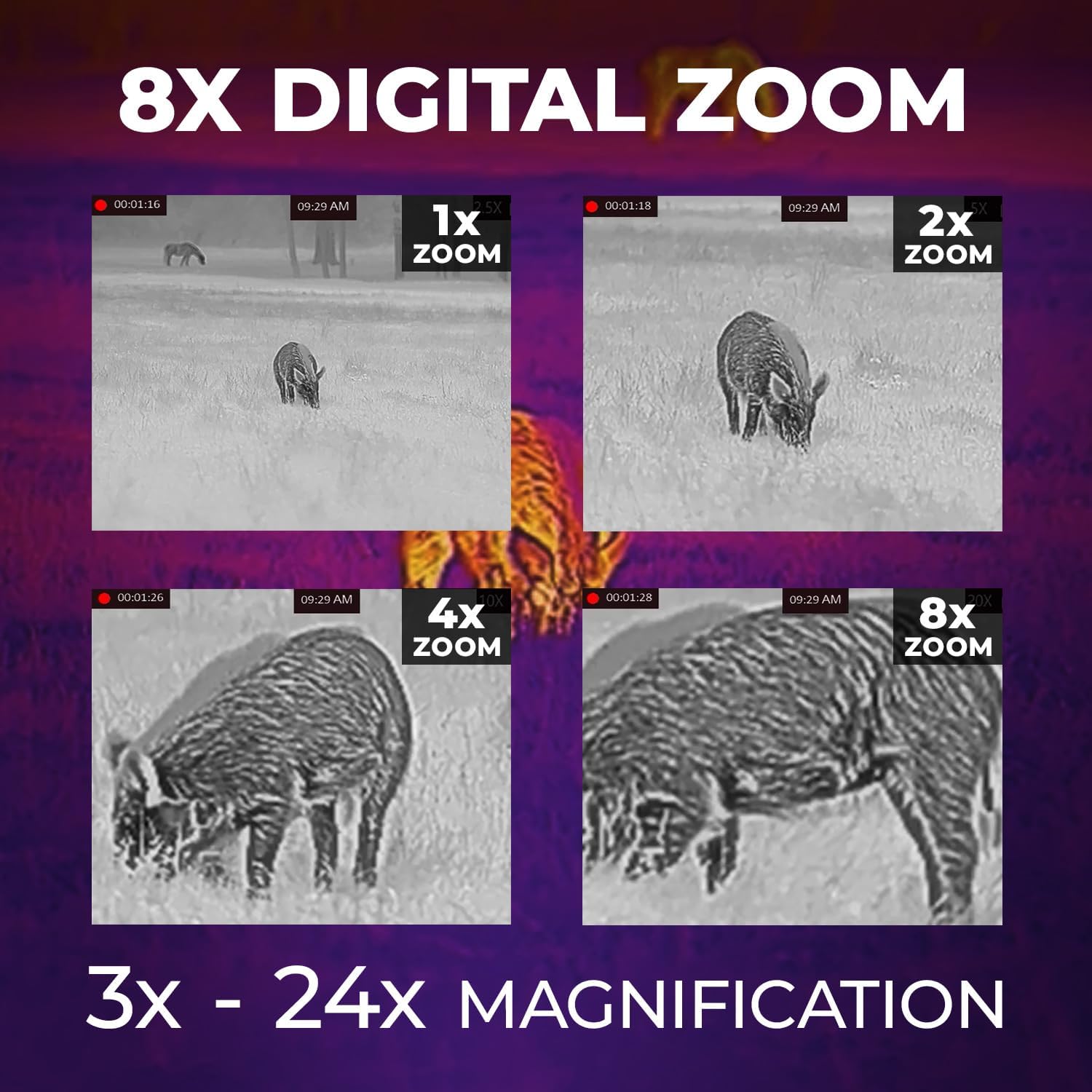

| Magnification |
Optical: 3x
Digital: 1 to 8x
|
| Lens System |
35 mm, f/1.0
|
| Angle of View |
7.5 x 5.6°
|
| Minimum Focus Distance |
1.6' / 0.5 m
|
| Exit Pupil Diameter |
6 mm
|
| Eye Relief |
45 mm
|
| Diopter Adjustment |
-5 to +5
|
Camera
| Storage |
16 GB via Built-In Memory
|
Connectivity
| Wireless |
Wi-Fi
|
| Inputs/Outputs |
1x USB-C
|
| GPS |
No
|
Physical
| Battery |
2x Rechargeable Lithium-Ion (Approx. 9 Hours)
|
| Operating Conditions |
-22 to 131°F / -30 to 55°C
|
| Environmental Resistance |

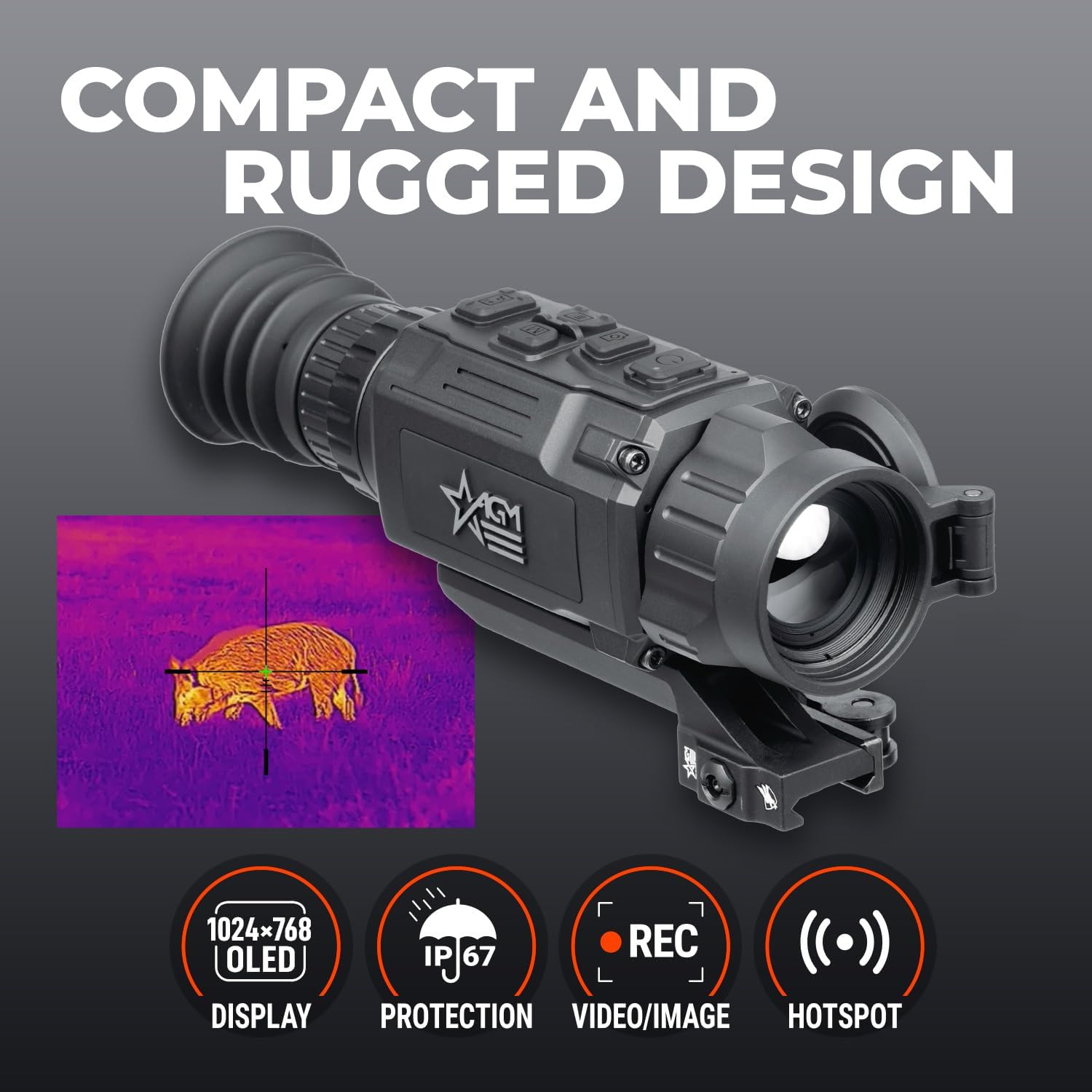

Dust/Water-Resistant (IP67)
|
| Dimensions |
8.7 x 2.7 x 2.6" / 22.1 x 6.9 x 6.6 cm
|
| Weight |
18 oz / 510.3 g
|
Packaging Info
| Package Weight |
5.78 lb
|
| Box Dimensions (LxWxH) |
14.6 x 11.7 x 5.6"
|
Package Includes
- ADM QD Mount
- Two NE-4400 Rechargeable Batteries
- Battery Charger
- USB Cable
- Lens Cloth
- Owners Manual
- Carrying Case
