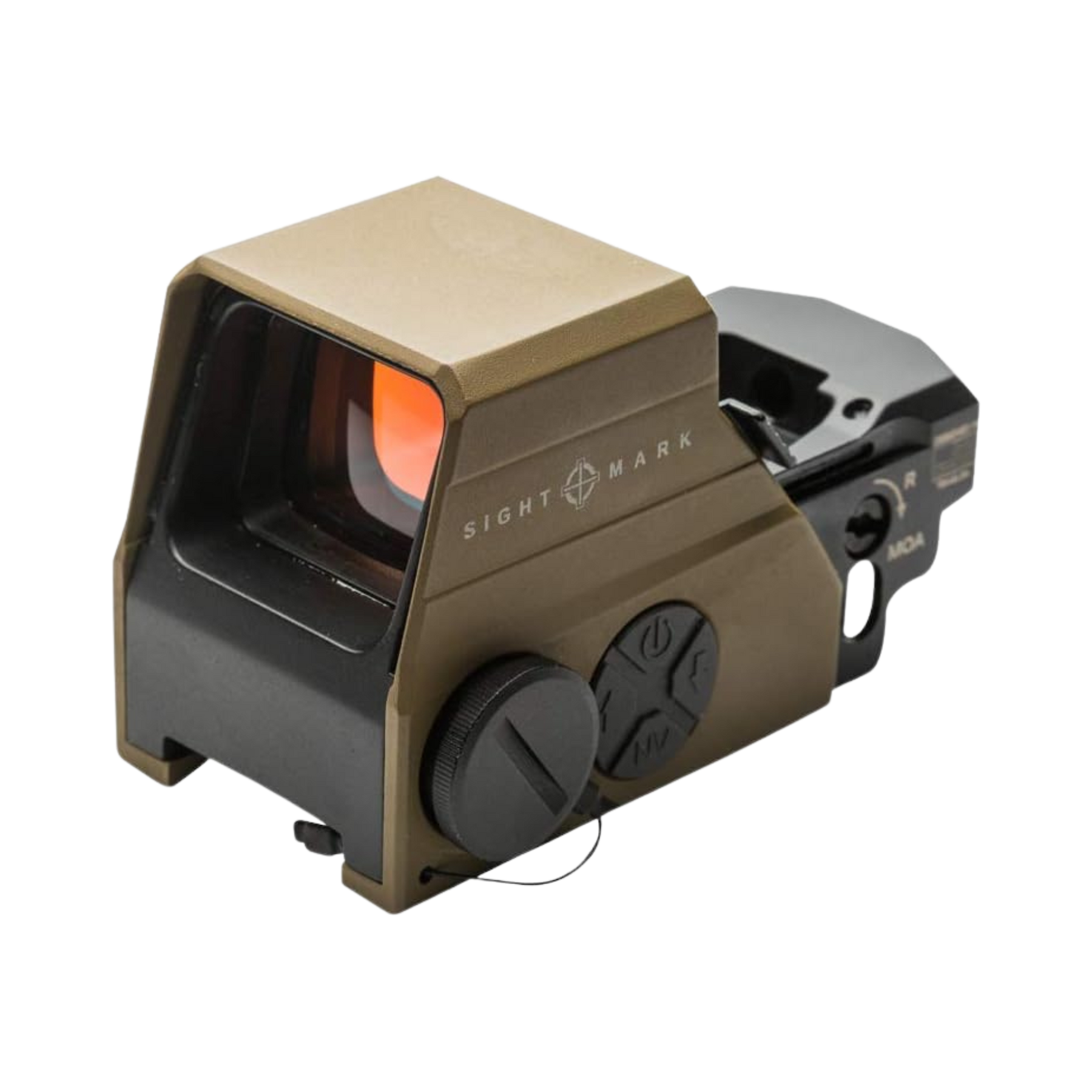

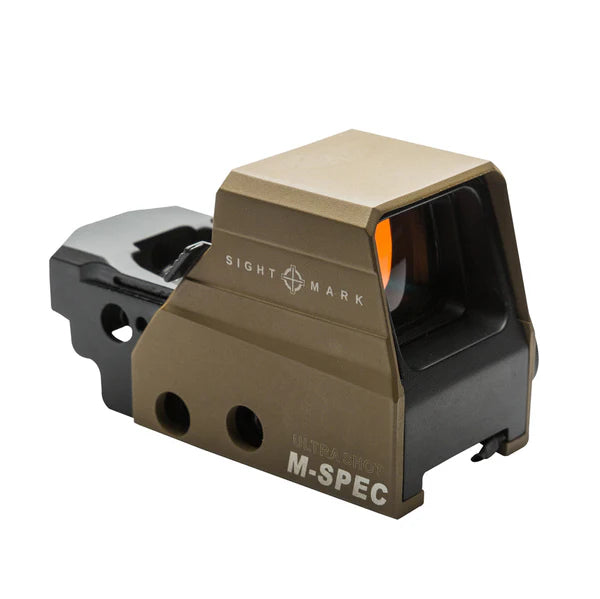

Sightmark Ultra Shot M-Spec Reflex Sight
- In stock, ready to ship
Unparalleled performance meets rugged durability with the Sightmark Ultra Shot M-Spec Reflex Sight. Designed for the serious shooter, this reflex sight boasts a 65 MOA Circle Red Dot Reticle with adjustable brightness settings, ensuring perfect visibility in any light conditions. Whether you're in the broad daylight or navigating the darkest environments with night vision, the Ultra Shot M-Spec has you covered.
Features

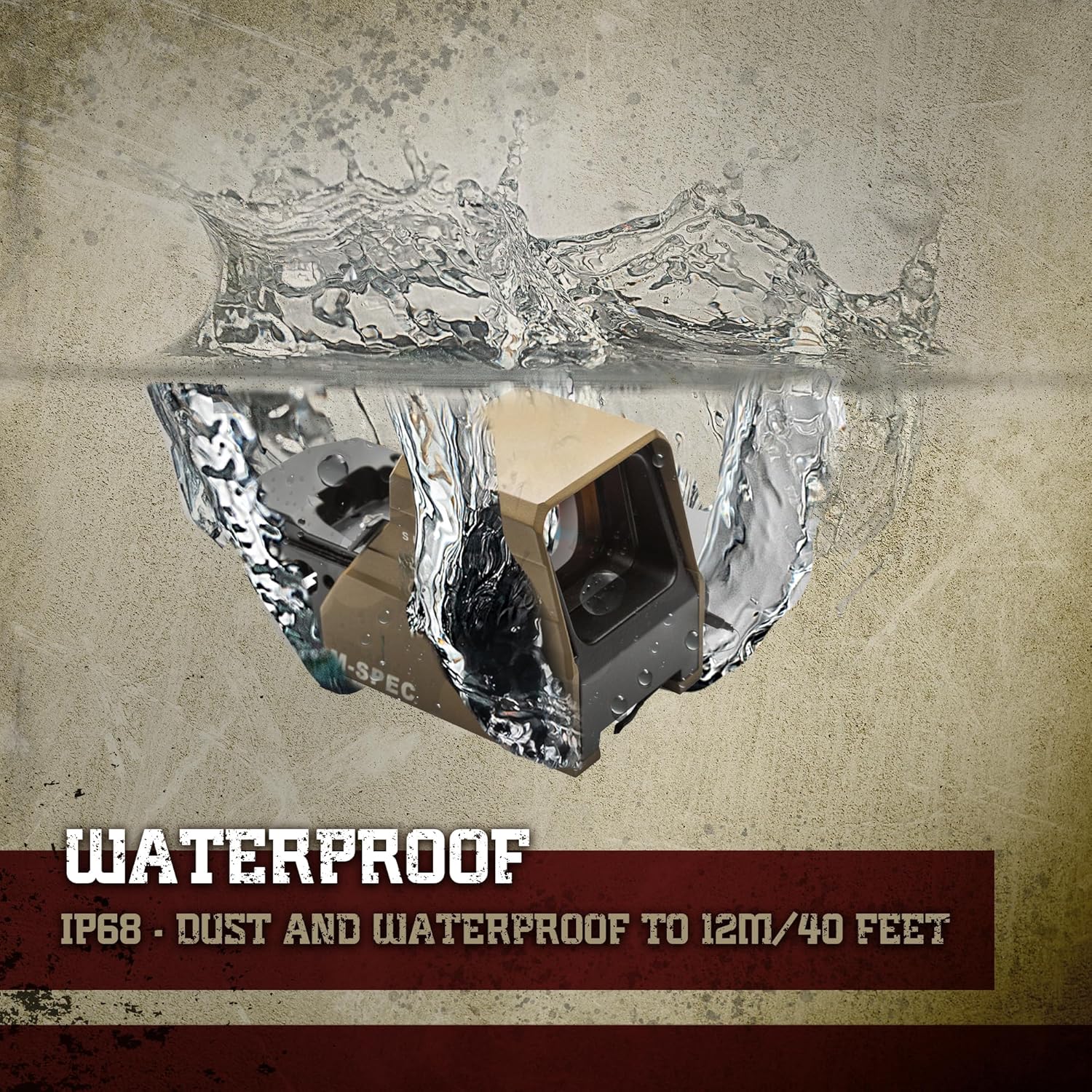

The Ultra Shot M-Spec is durable and waterproof up to 40 feet, with a protective aluminum shield and precise 120 MOA windage and elevation adjustments. It remains steady even under heavy recoil up to .50 BMG for consistent accuracy.
FMS and LQD are acronyms for the mounting system that some of our optic offer. FMS means fixed mounting system. LQD means locking quick detach.
- An FMS optic is more traditional in design as the optic is secured to the firearm with mounting screws.
- LQD models use a locking quick detach lever that allows users to take their optic off and on quickly but return the optic to zero once mounted back.
Features
- Advanced double lens design
- Digital switch, 10 daytime, 6 NV
- Protective hood, Integrated sunshade and Magnesium alloy housing
- CR123 battery powered
- Low battery indication with 12 hour shutoff

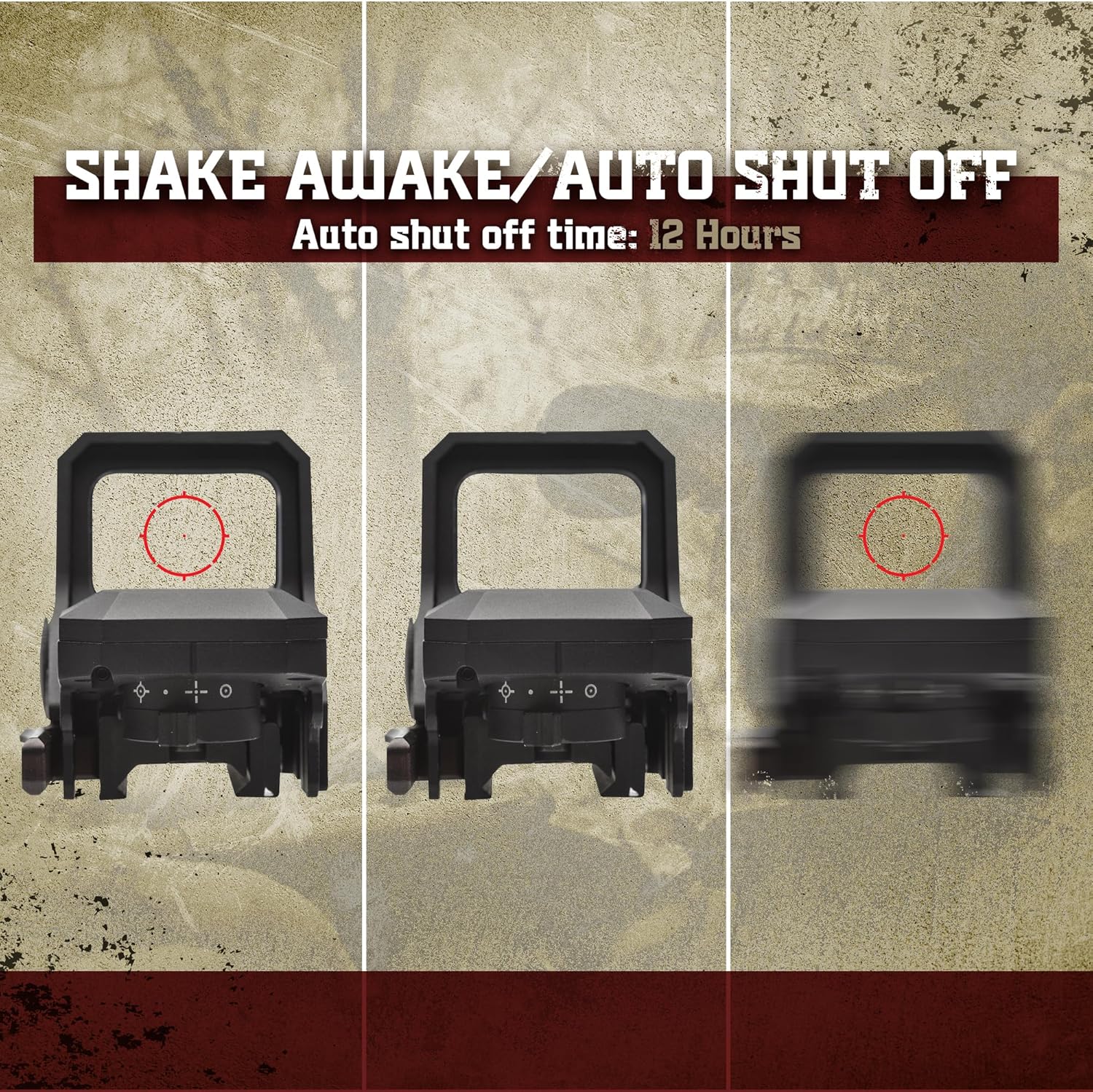

- Motion activation
- InterlokTM adjustment system
- Locking quick detach mount (LQD Model)

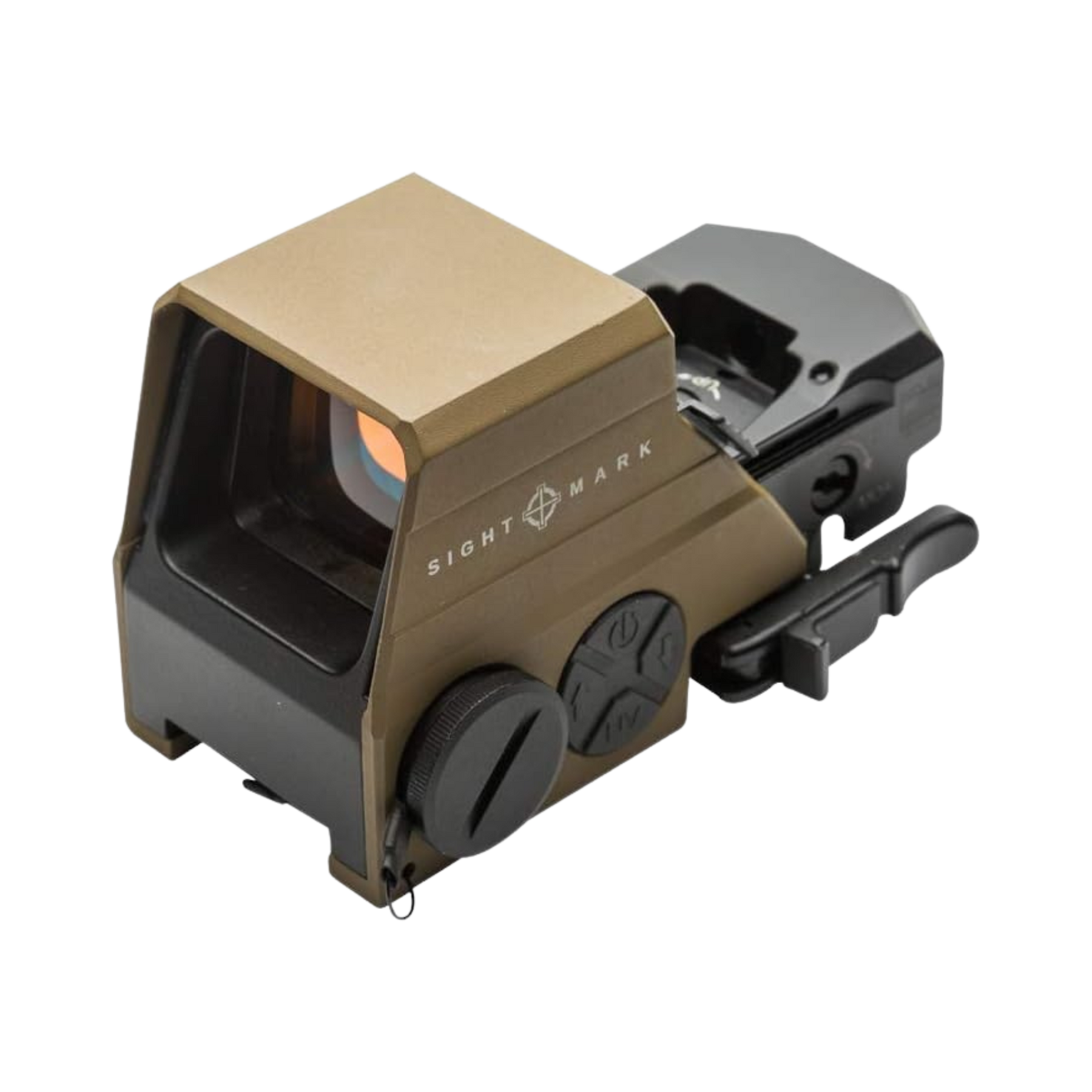

Ultra Shot M-Spec Reflex Sight
Promises repeatable accuracy, ultra-fast target acquisition and rugged mil-spec reliability. The premium wide-angle lens with scratch resistant, anti-reflective red coating, integrated sunshade, illuminated 65 MOA circle-dot reticle, night vision brightness modes, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability.

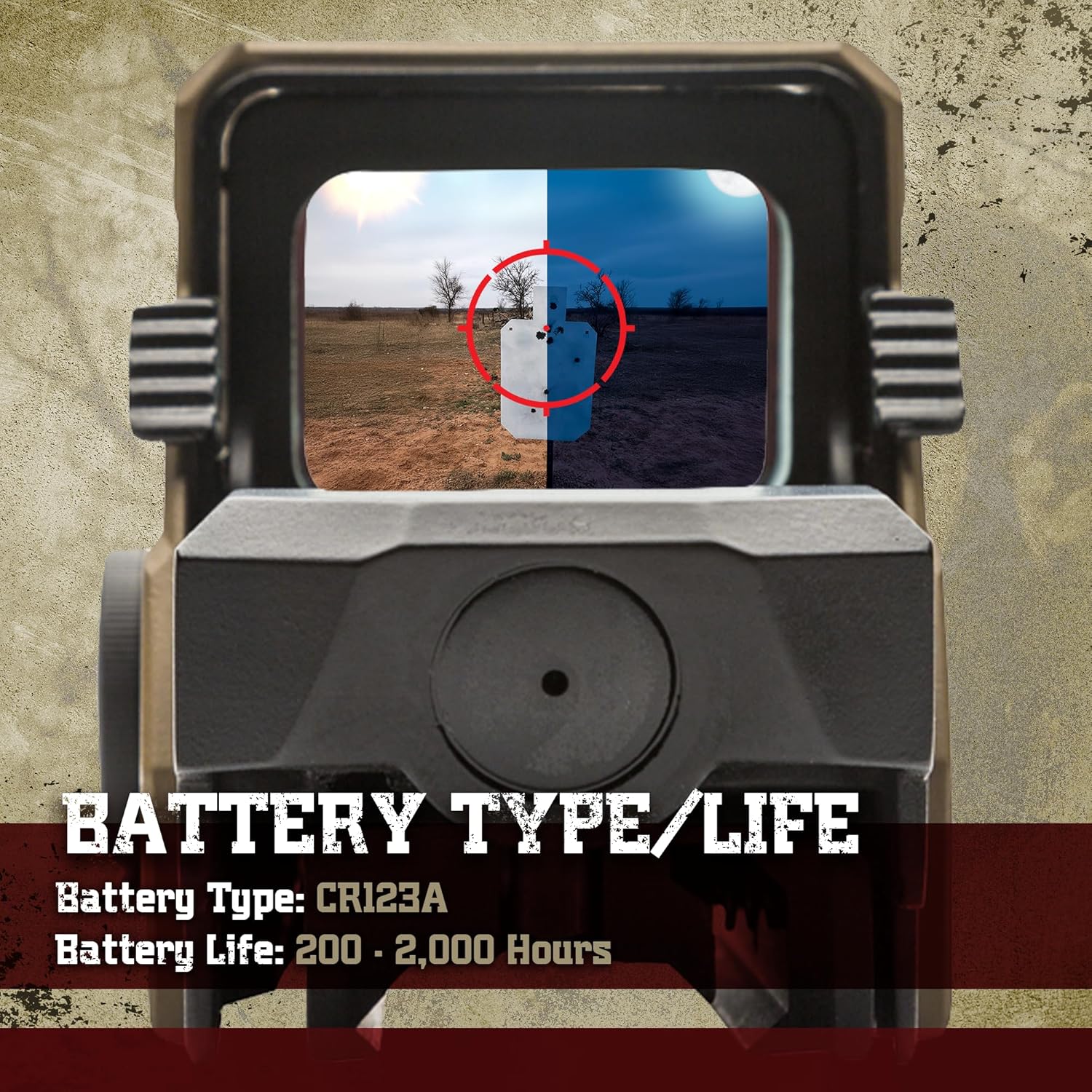

The M-Spec Reflex Sight is shockproof, dustproof, IP68 waterproof, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminum protective shield and magnesium alloy body. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. Features a low battery indicator, motion sensing auto on/off activation, digital switch controls, 12-hour auto shut-off, and locking quick-detach Picatinny mount.

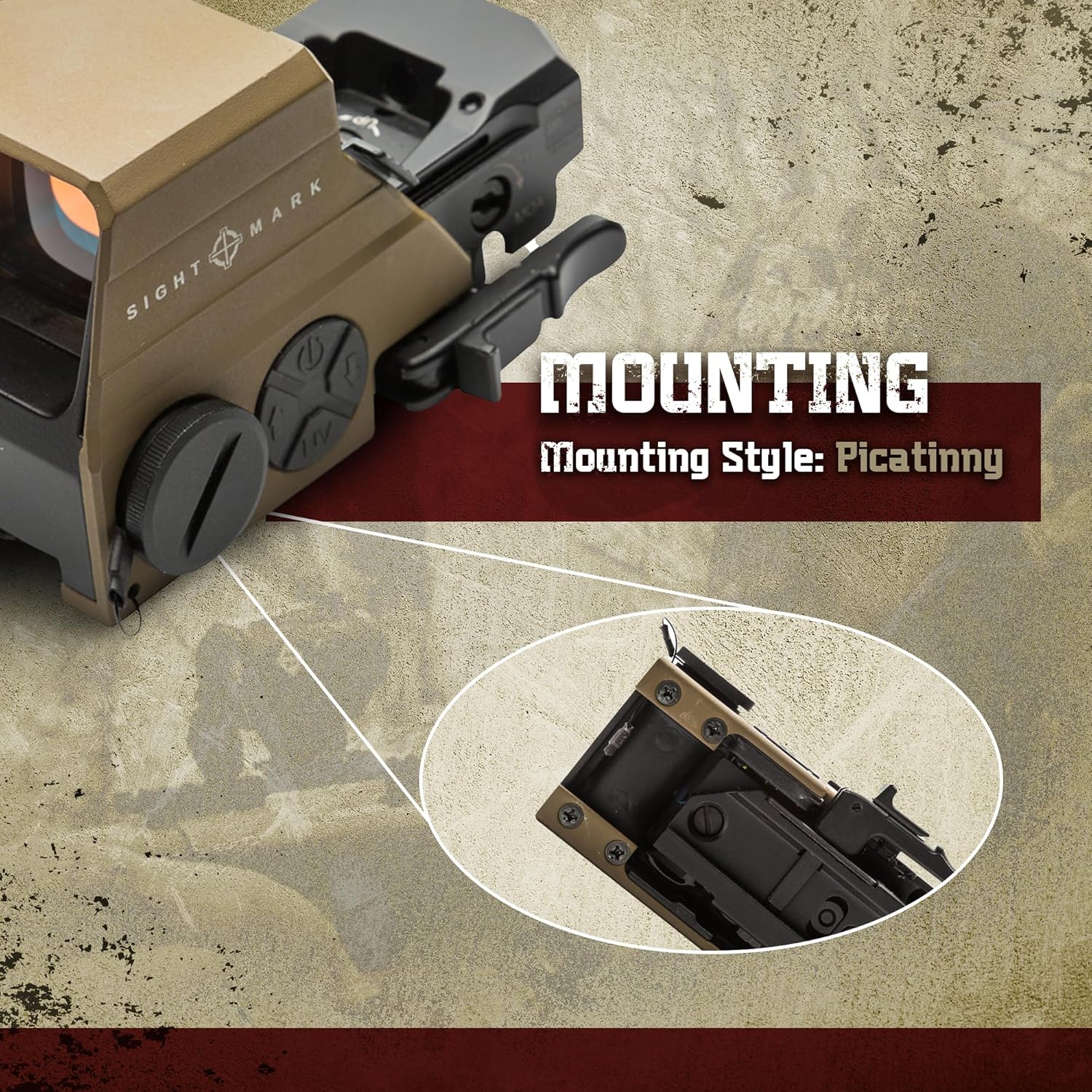

Locking Quick Detach Mount (LQD Model only)
- - Locking mechanism prevents quick detach mount from accidentally opening if latch is caught on vest or other gear. This is important if the optic is on a service weapon.
- To release mount, lock must be slid back and mount can then be released.
Low battery Indication
- - 2 Hour low battery indication – each press of a button the reticle will blink four times.
- 10 Minute low battery indication – the reticle will continuously blink until a new battery is installed.

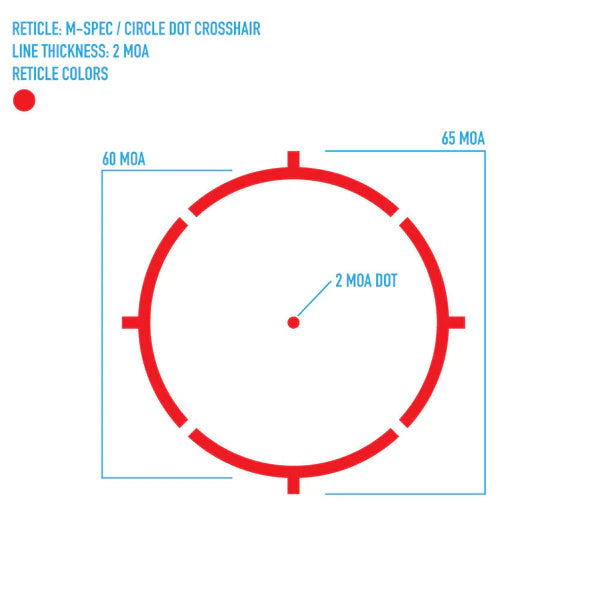

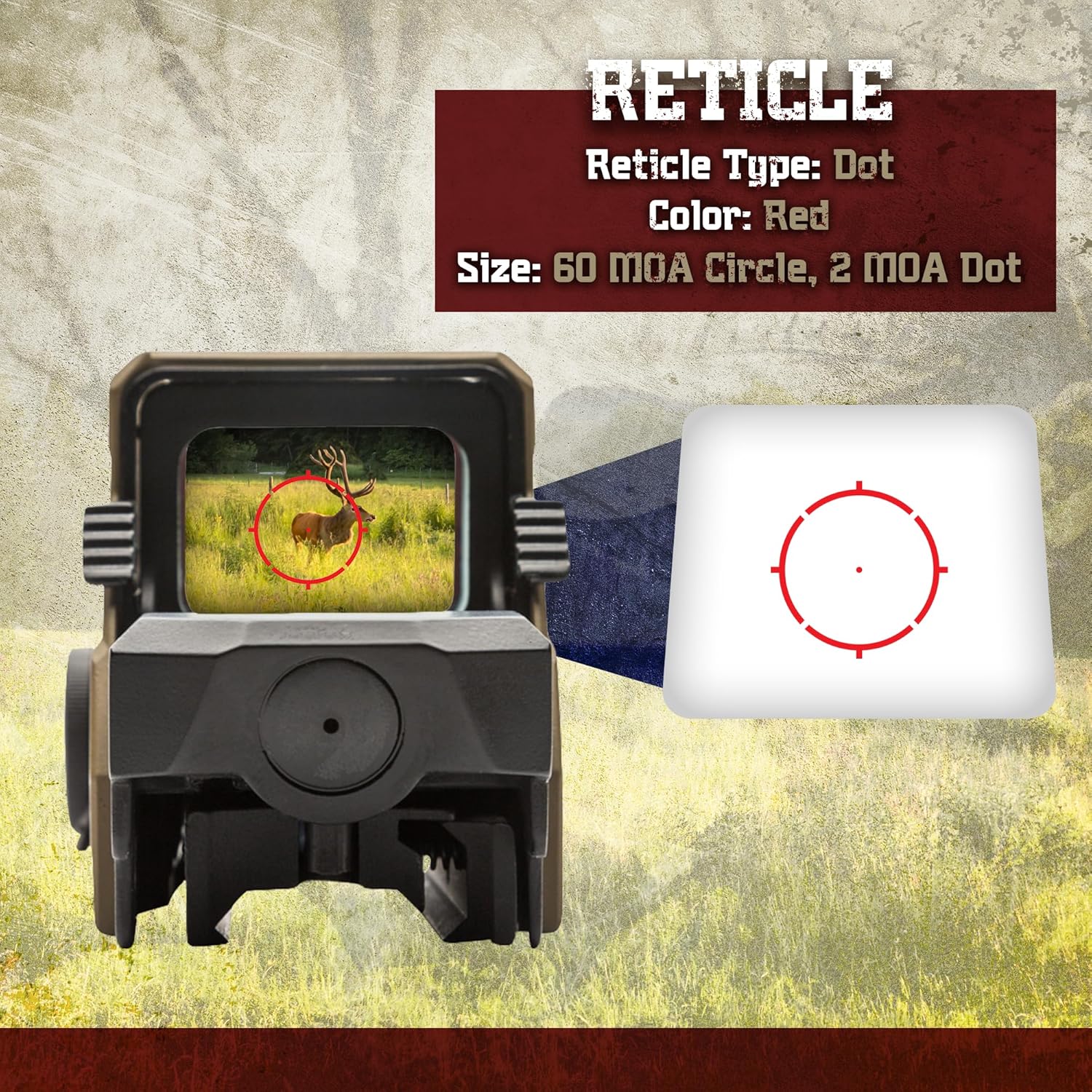

Circle Dot Crosshair Reticle
65 MOA Circle Dot Crosshair
(60 MOA circle w/ 5 MOA subtension, 2 MOA central dot)
Benefit:
- - Reduces reflections and glare in bright outdoor conditions.
- - Improves ability to see reticle.
- - Prevents rain and debris from falling into optical path, possibly distorting the reticle.
- - Integrated design eliminates time removing and storing external sunshade.
- - Patent pending.
Magnesium alloy main housing
Features:
- Strength is greater than 6061 aluminum alloy
- Weighs less than aluminum alloys
- Benefits:
- Increased durability
- Decreased weight
InterlokTM Adjustment System
The interlok adjustment system is a internal retention system that ensure windage and elevation adjustments remain zeroed during recoil. Competitor reflex sights typically require the adjustment system be unlocked using a screw or set of lock screws. These designs can be damaged or break if the customer forgets to loosen the locking screw. The interlok adjustment system removes the need of a locking screw so shooters can make adjustments on the fly.
Included in Package
US Pat. 10139197B1
