Key Features
- 384 × 288 (12μm VOx) thermal sensor with class-leading sub-20 mK NETD

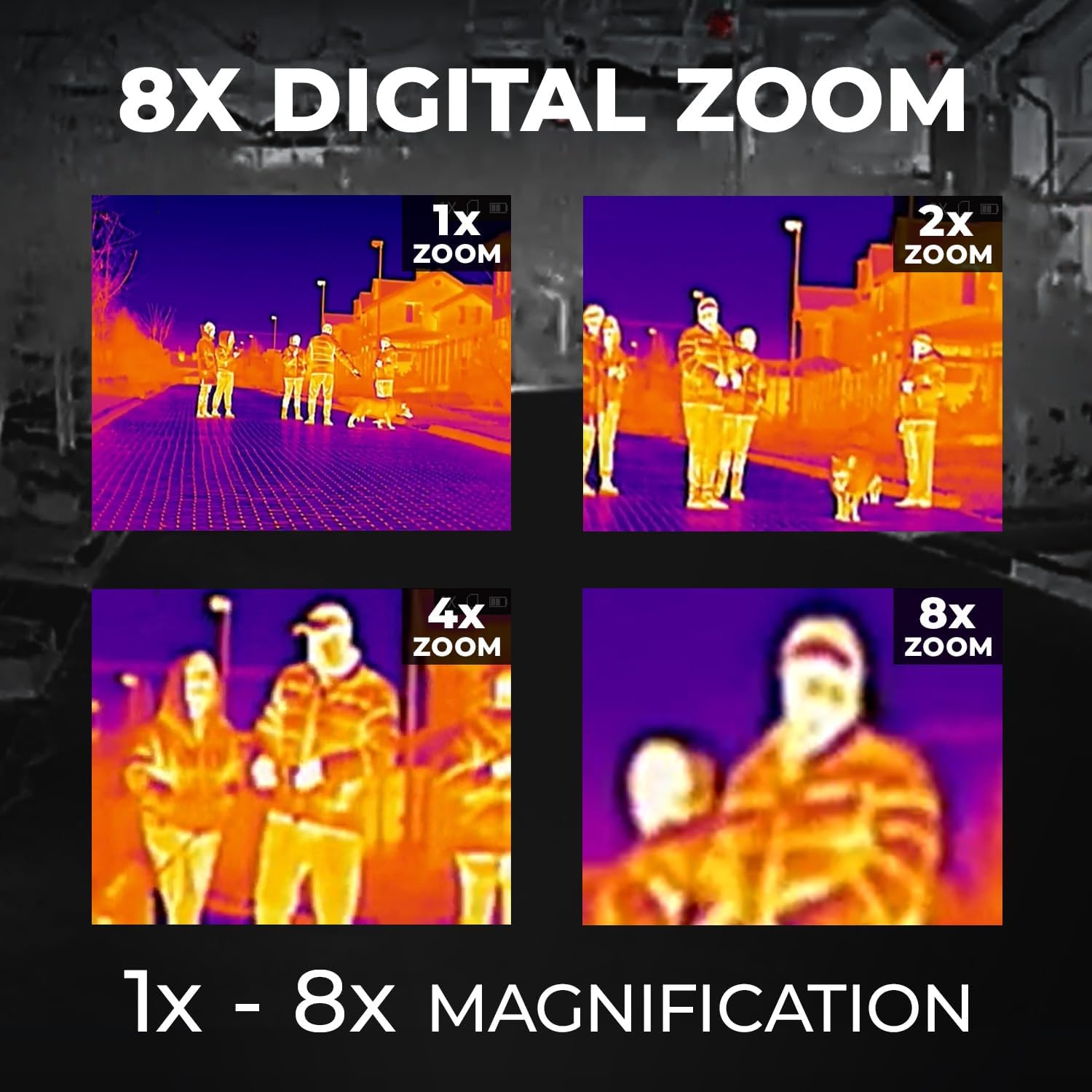

- 25 mm f/1.0 Germanium lens; 2.5× base magnification with 1–8× digital zoom
- Detection out to 1,312 yds / 1,200 m on a target
- Wide 10.5° × 7.9° field of view for fast scanning
- 50 Hz refresh on a 1024 × 768 OLED display; black/white/red hot & fusion palettes
- 16 GB built-in memory with onboard photo/video recording
- Wi-Fi streaming to networked devices via the AGM Connect app
- Removable, rechargeable 18650 battery; USB-C external power
- 90° tilt sensor powers off the display to conserve battery
- Rugged IP67 build (dust-tight, submersible to 3.3'); 5-year transferable warranty
Description

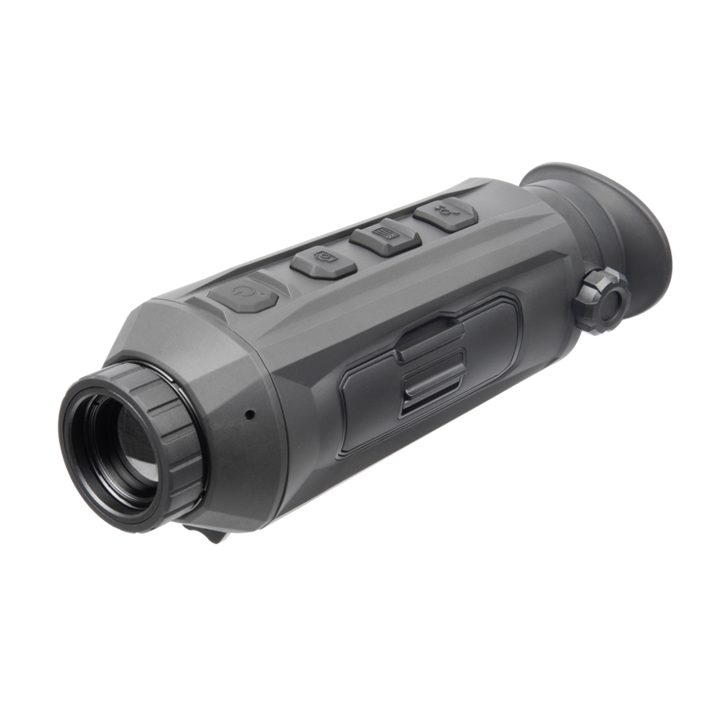

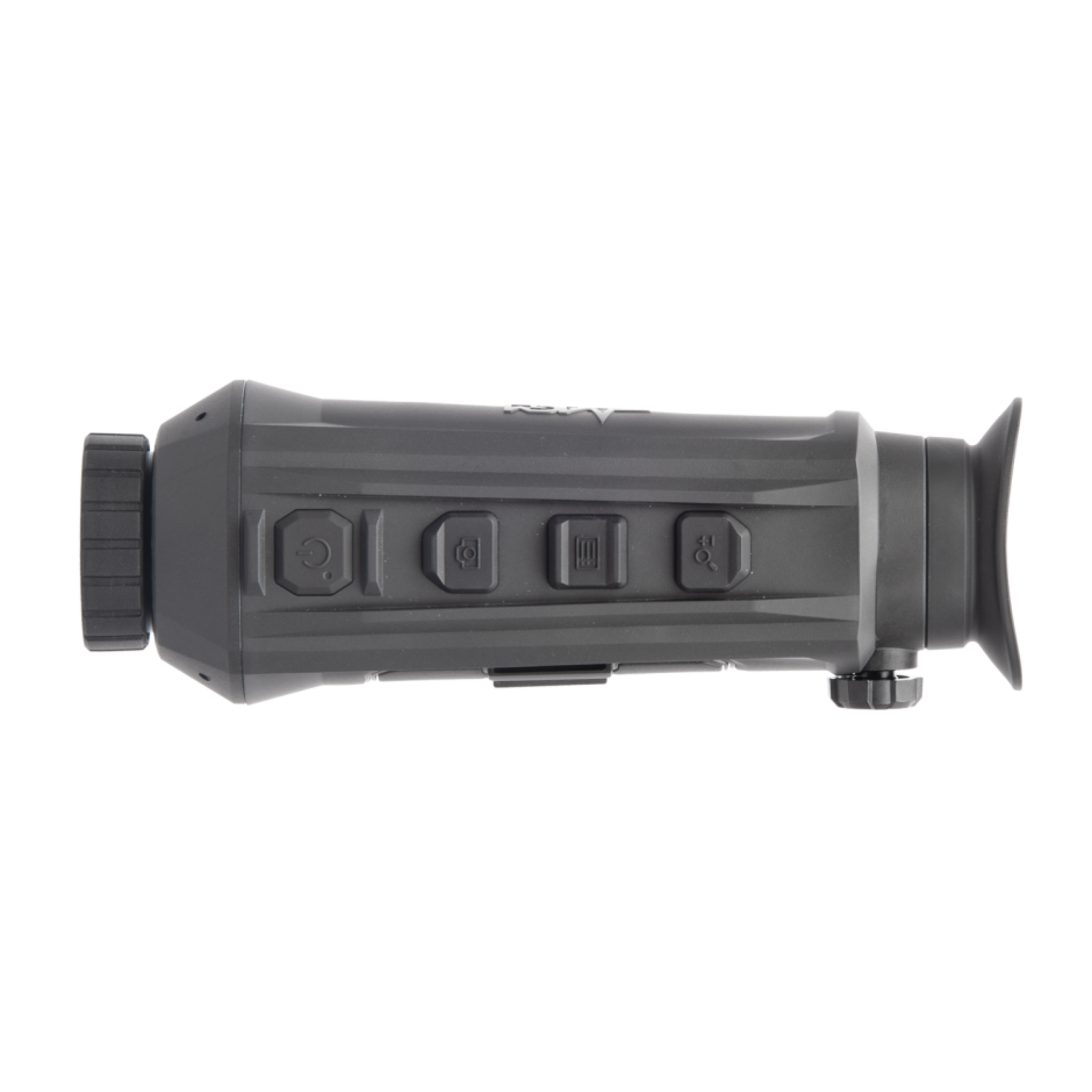

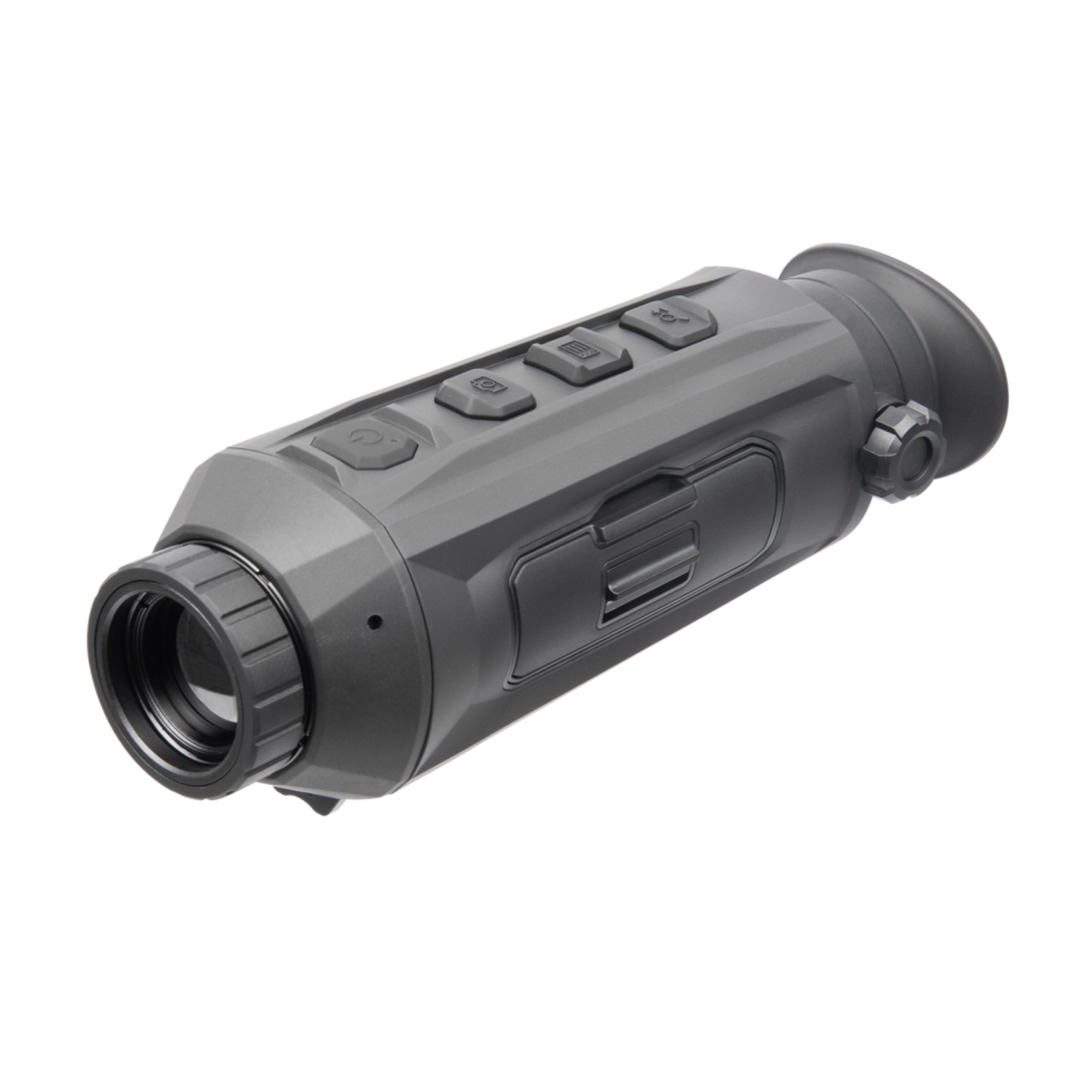

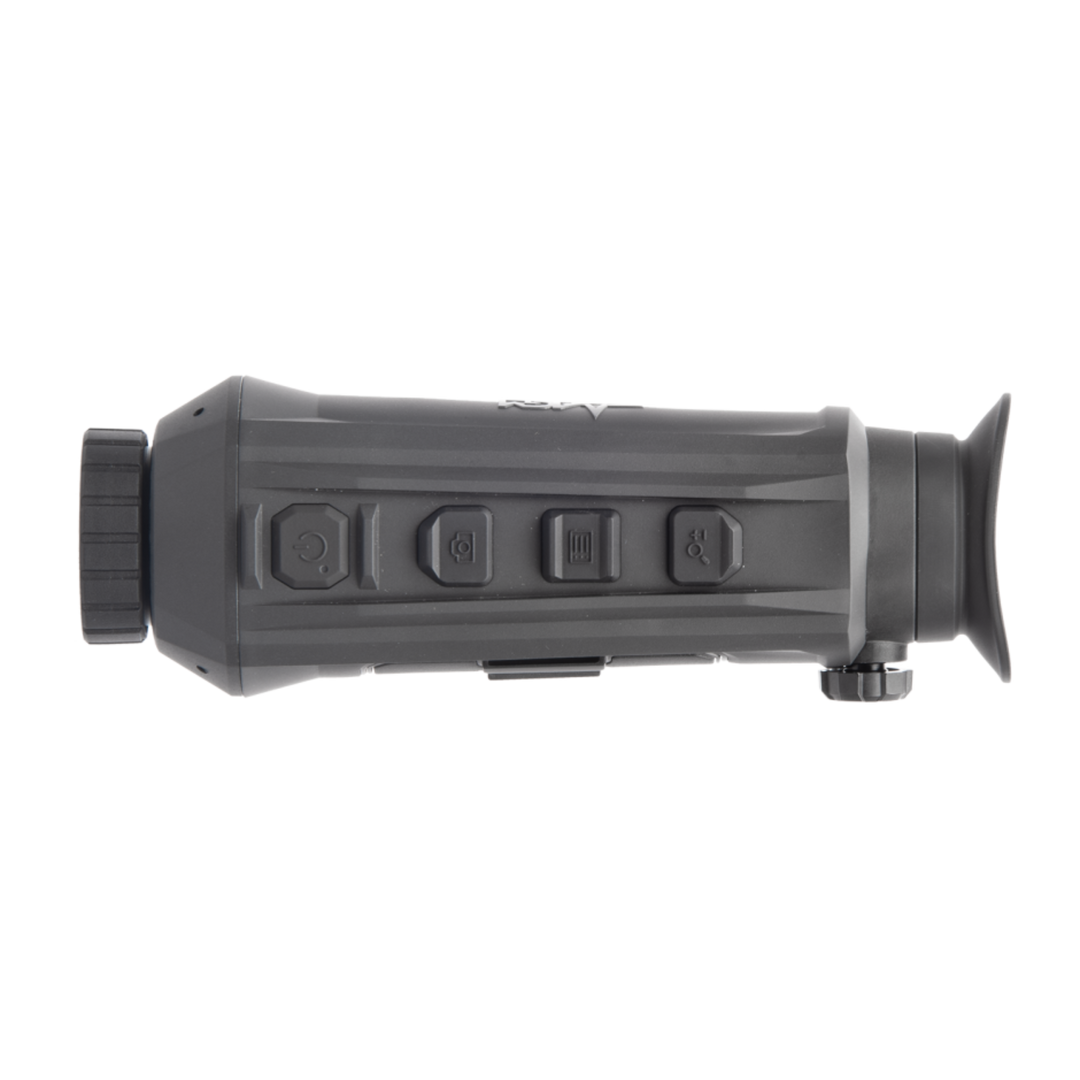

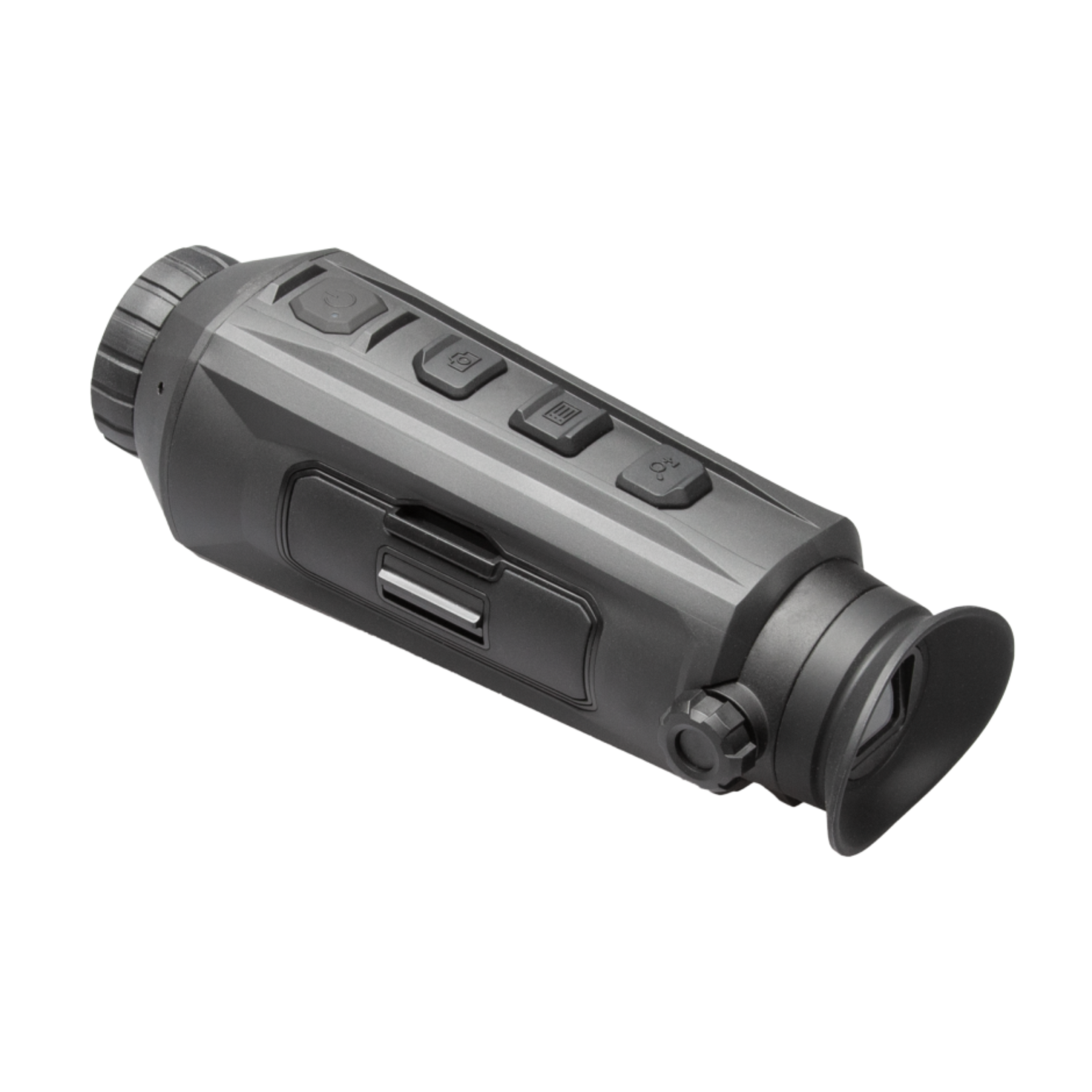

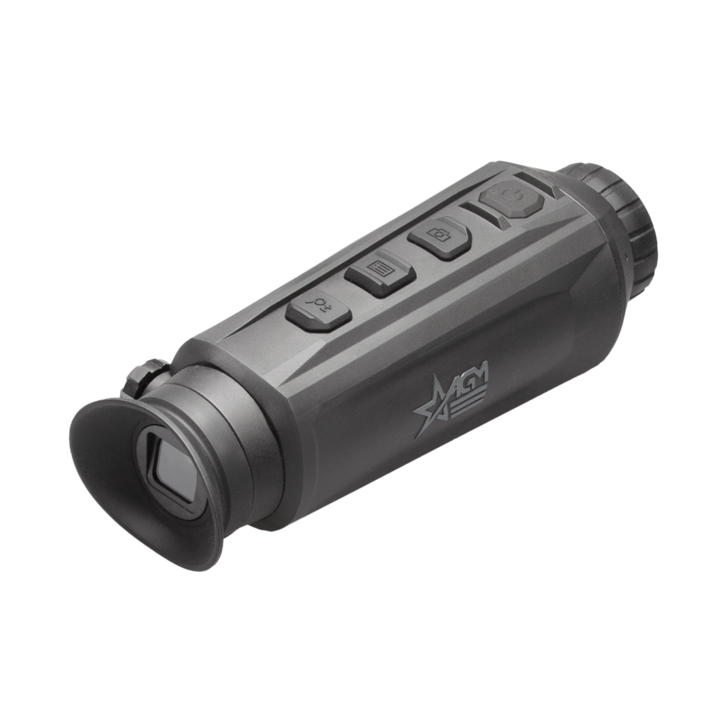

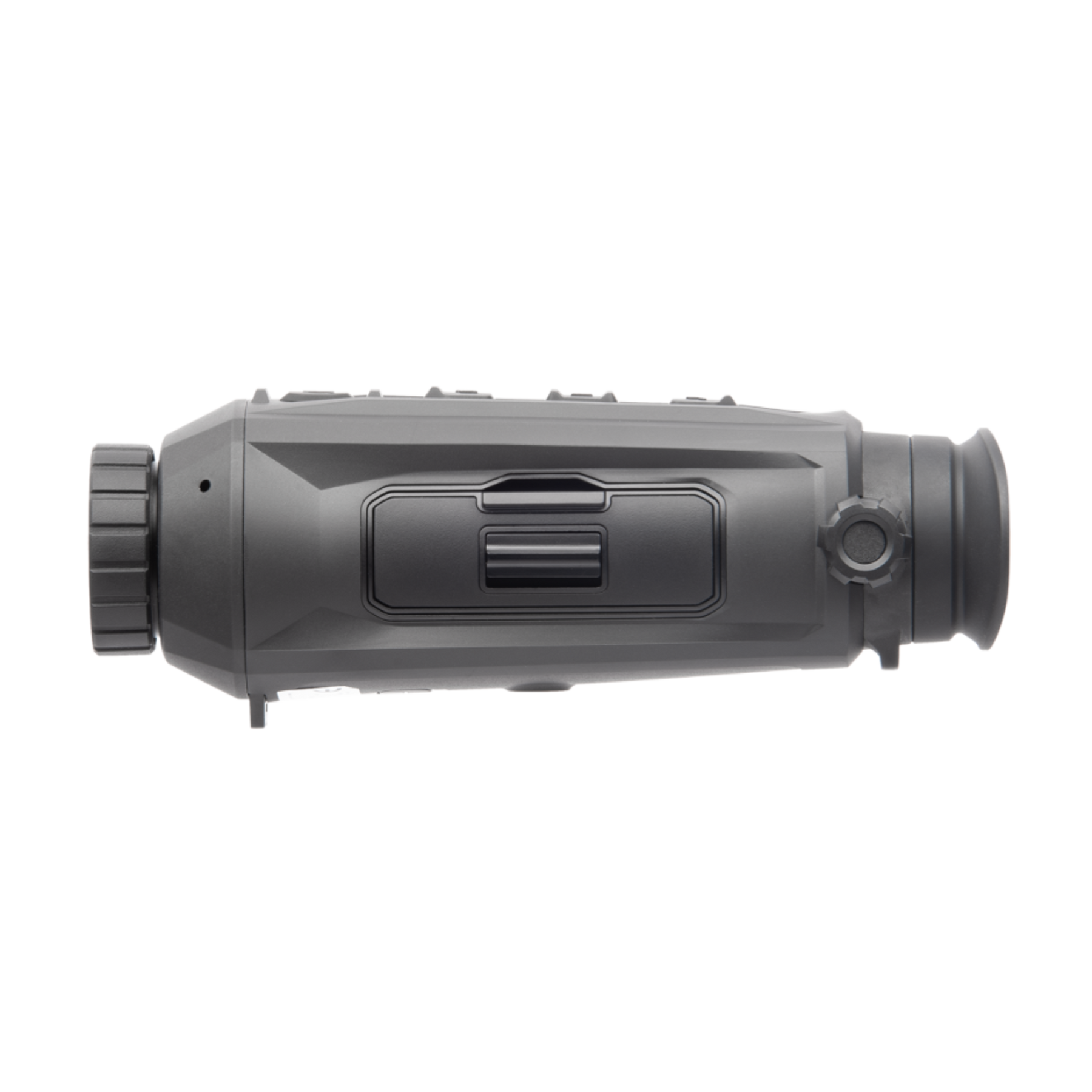

The AGM TaipanV2 Thermal Monocular series is the newest addition to what is already the most extensive thermal product assortment in the world. The TaipanV2 series boasts multiple Germanium lens sizes paired with an industry-leading 384-resolution, 12-micron, sub-20 mK thermal detector.
The TaipanV2s also bring many new advancements to the product family that users have been clamoring for in the original Taipan monoculars. These primary improvements include moving from a non-removable internal battery to a single removable, rechargeable 18650; a new sub-20 mK thermal sensor; and a new 90-degree tilt sensor that powers off the display to save battery life.
The TaipanV2 also comes packed with numerous software improvements and many features that have become commonplace within the AGM thermal lineup: f/1.0 aperture optics, 50 Hz refresh rate, 16 GB of built-in memory, Wi-Fi compatibility with the AGM Connect app, an IP67 waterproof rating, a USB Type-C port for external power, and four color palettes. A wider rubber eyepiece makes viewing the 1024 OLED display comfortable during long sessions in the field.
The TaipanV2s are built for well-rounded use and work great for hunting, farming/herd protection, law enforcement, search & rescue, boating, camping, and other general outdoor activities. All TaipanV2 models come with AGM's 5-year transferable warranty.
Specifications
▼
| Sensor & Optics |
| Configuration |
Monocular |
| Sensor |
384 × 288 vanadium oxide (VOx) |
| Pixel size |
12 μm |
| Spectral range |
8–14 μm |
| Thermal sensitivity (NETD) |
< 20 mK at f/1.0, 77°F / 25°C |
| Lens system |
25 mm, f/1.0 |
| Magnification |
2.5× base (1–8× digital) |
| Field of view |
10.5° × 7.9° |
| Angle of view |
17.5° × 13.1° |
| Detection range |
1,312 yd / 1,200 m |
| Diopter adjustment |
−5 to +3 |
| Display & Imaging |
| Display |
1024 × 768 OLED |
| Refresh rate |
50 Hz |
| Palettes |
Black hot, white hot, red hot, fusion |
| Storage |
16 GB built-in memory |
| Wireless |
Wi-Fi |
| Inputs/outputs |
1× USB-C (5 VDC at 2 A) |
| Power & Physical |
| Battery |
Removable, rechargeable 18650 Li-ion |
| Operating conditions |
−22 to 131°F / −30 to 55°C |
| Environmental resistance |
Dust/water-resistant (IP67), submersible to 3.3' |
| Dimensions |
6.2 × 2.4 × 2.2 in / 15.7 × 6.1 × 5.6 cm |
| Weight |
11 oz / 313 g (with battery) |
Package Includes
-
✓AGM TaipanV2 25-384 thermal monocular
-
✓Battery charger
-
✓USB cable
-
✓Power adapter (US and EU plugs included)
-
✓18650 rechargeable battery
-
✓Lens cloth
-
✓Wrist strap
-
✓User manual
-
✓Protective bag
