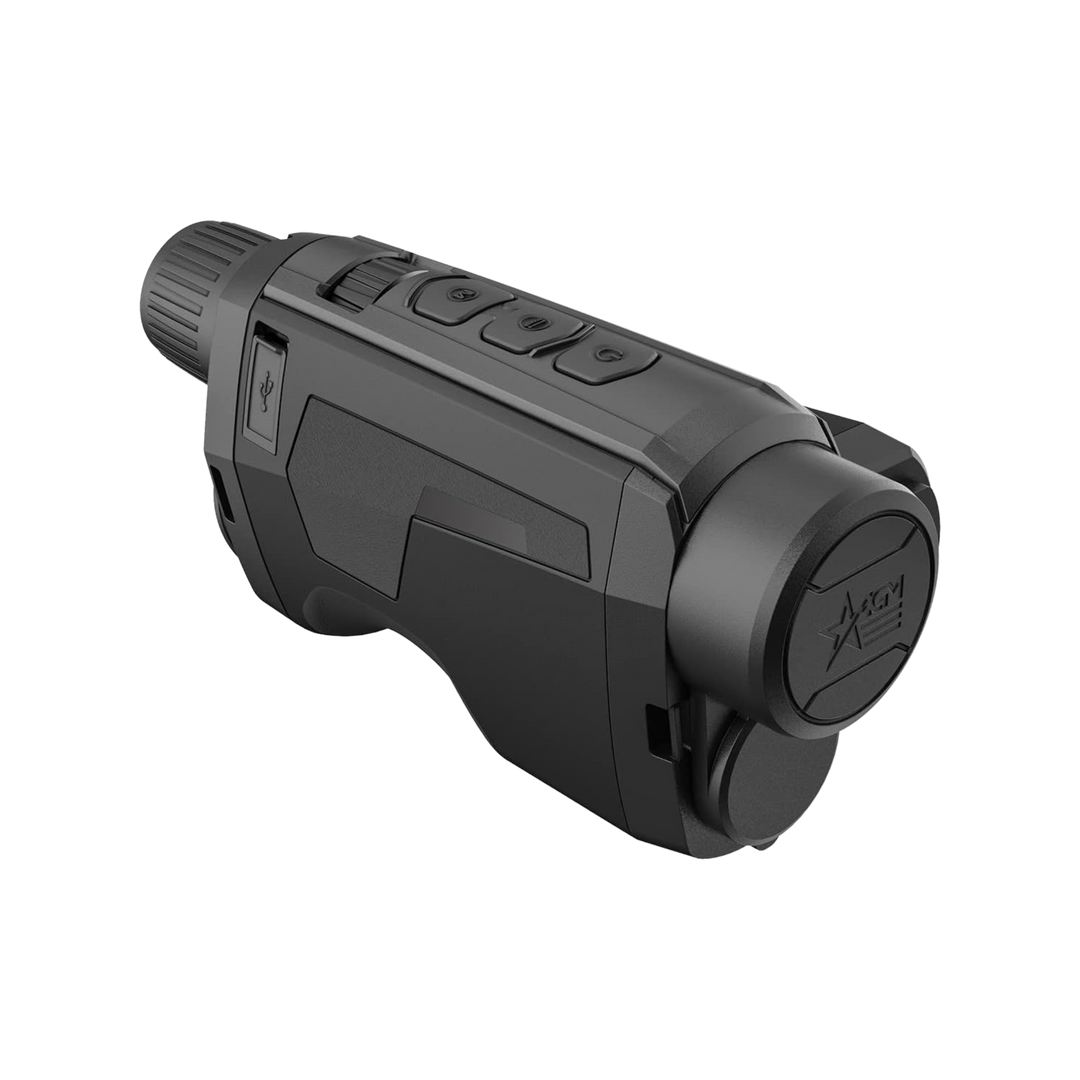

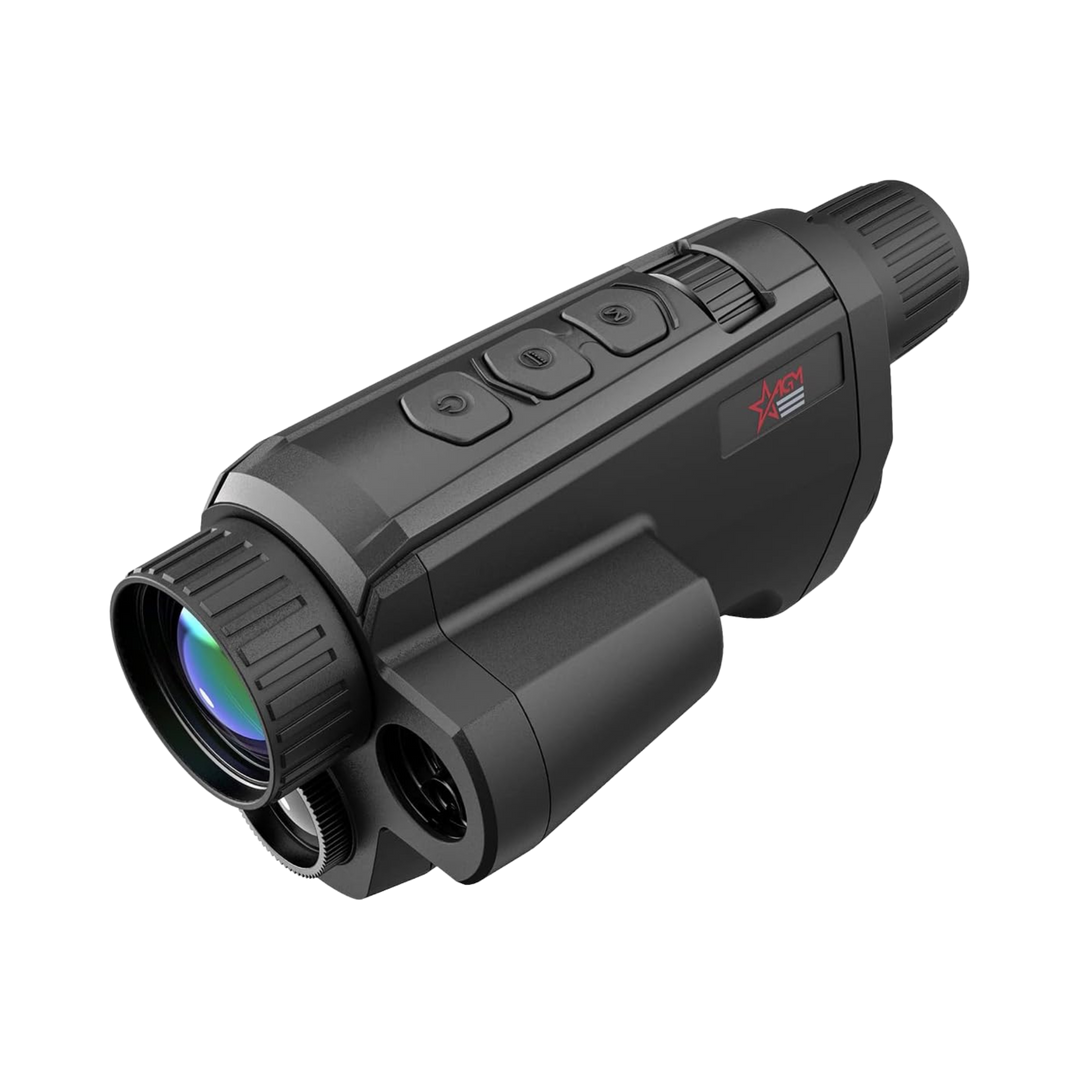

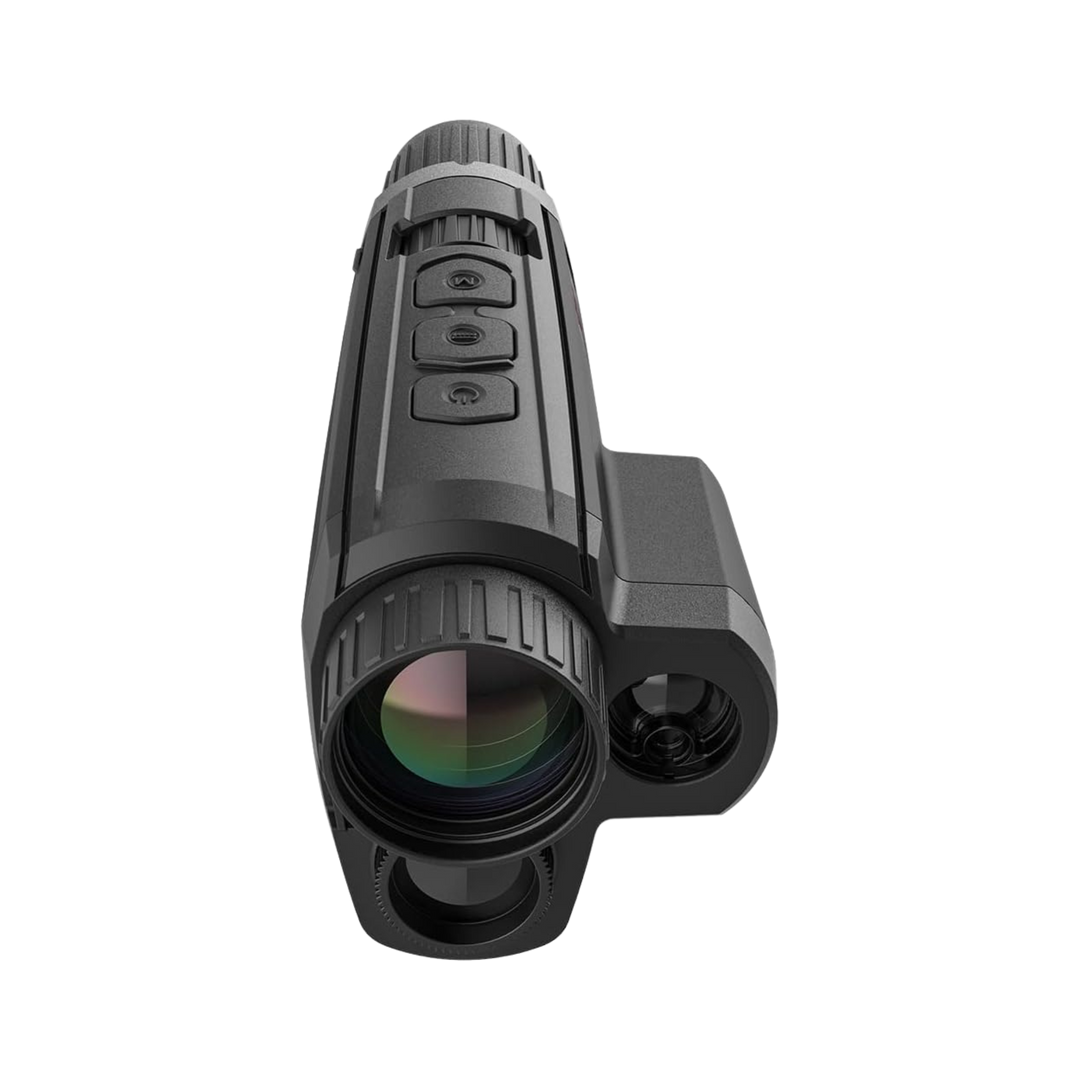

AGM Global Vision Fuzion LRF TM35-384 Thermal Imaging CMOS Monocular with Laser Range Finder, 35 mm

$1,799.00 $1,399.99 Save $399.01
/
Free Shipping over $50

Key Features

  • Tri-mode imaging: switch between thermal, visible-light (digital night vision), and fusion views to adapt to changing conditions
  • 12μm high-sensitivity 384 × 288 VOx thermal detector for clear visibility through fog, smoke, rain, and snow
  • 3.5× base optical magnification with 1×–8× digital zoom (up to 28×)
  • Thermal detection out to 1,750 m on a human-sized target
  • Built-in eye-safe laser rangefinder to 600 m (656 yd) with ±1 m accuracy
  • 1920 × 1080 ultra-low-light CMOS optical channel; 1024 × 768 OLED display at 50 Hz
  • On-board photo & video recording with 16 GB built-in memory and Wi-Fi hotspot
  • Removable 18650 rechargeable battery (up to 5 hrs); USB-C external power; IP67 waterproof

Description

The AGM Global Vision Fuzion LRF TM35-384 Fusion Thermal Imaging & CMOS Monocular is a cutting-edge device designed for enhanced visibility and precision in challenging environments. Featuring a 12μm high-sensitivity thermal detector, an ultra-low-light optical detector, and a 1024 × 768 OLED display, this monocular delivers sharp visuals in fog, smoke, and adverse weather. Ideal for hunting, search and rescue, patrol, and security, it offers three imaging modes — thermal, visible light, and fusion — letting users adapt to any situation.

The thermal channel detects human-sized heat signatures out to roughly 1,750 m, while the built-in laser rangefinder measures distance to targets up to 600 m (656 yds) with 1-yard accuracy. With 3.5× base magnification, 1×–8× digital zoom, 16 GB of internal storage for snapshots and video, and a durable, waterproof design, this monocular is an essential tool for professionals and outdoor enthusiasts alike.

Specifications

▼
Sensor & Optics
Detector type 12 μm VOx uncooled focal plane array
Resolution 384 × 288
Response waveband 8 μm to 14 μm
Optical image sensor 1/2" progressive-scan CMOS, 1920 × 1080 @ 25 fps
Aperture F1.0
Lens focal length Thermal 35 mm; optical module 22 mm
Optical magnification 3.5× base (3.5×–28× with digital zoom)
Digital zoom 1×, 2×, 4×, 8×
Field of view (H × V) 7.5° × 5.7°
Refresh rate 50 Hz
Imaging & Display
Display 1024 × 768, 0.39" OLED, 50 Hz
Palettes Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
Scene modes Jungle, Recognition
Flat field correction (FFC) Auto, Manual, External
Hotspot tracking Yes
Standby mode Yes
Ranging & Recording
Observation distance Up to 1,750 m
Laser rangefinder Up to 600 m (656 yd), ±1 m accuracy
Laser wavelength 905 nm
Storage Built-in 16 GB eMMC
Recording On-board video + snapshot
CVBS output Yes (via USB)
Power & Physical
Power 5 VDC / 2 A, USB-C (supports external power)
Battery One 18650 rechargeable (removable)
Battery life Up to 5 hrs (Wi-Fi/CVBS off); up to 3 hrs (on)
Operating temperature −20°C to +55°C (−4°F to +131°F)
Dimensions (L × W × H) 168 × 87 × 74 mm (6.6 × 3.4 × 2.9 in)
Weight 520 g (1.15 lb)
Protection level IP67 (waterproof)

Package Includes

  • ✓AGM Fuzion LRF TM35-384 thermal monocular
  • ✓Rubber eyepiece
  • ✓Two 18650 rechargeable batteries
  • ✓Battery charger
  • ✓USB cable
  • ✓Power adapter
  • ✓Carrying bag
  • ✓Lens cloth
  • ✓User manual
